Furuno FCV-292 Color 10" CTR 1, 2 or 3 kW 200 kHZ Video Sounder Fishfinder

  • Sale
  • Regular price $499.95
  • 2 available


  • Boat Marine Color 10" CTR 1, 2 or 3 kW 200 kHZ Video Sounder Fishfinder
  • 1, 2 or 3 Kilowatt RMS 8,16 or 24 KW P-P Transmitter Output Power
  • Dual Frequency 88 & 200 kHz
  • High Resolution, 10 Inch Color CRT Display
  • 16 Colors, including White or 8 Level Amber Picture
  • Light Blue, Blue or Black Background Color
  • 8 Range Scales, Minimum of 0-15, Maximum of 0-1500 Feet
  • Range Scale Offset to 9000 Feet, Maximum Offset Range of 10,500 Feet
  • Range Scale Calibration in Feet, Fathoms or Meters
  • Automatic Fishing or Cruising Range and Gain Setting Mode
  • Multiple Display Presentation Modes
    • Low and High Frequency, Split Screen
    • Low or High Frequency Only
    • Low or High Frequency Only with Bottom Lock or Bottom Discrimination
    • Low or High Frequency Only with Marker Zoom or Bottom Zoom
    • Graphic Nav Data Screen or Digital Display
  • On-Screen Digital Readouts of
    • Vessel Speed
    • Water Depth
    • Vessels Position in L/L or TD's
    • Surface Water Temperature
  • A-Scope for Rapid Fish Detection and Identification
  • Adjustable Fish or Bottom Alarm
  • Precision Variable Depth Marker, Built-in Picture Simulator
  • Power Requirements
  • 12 VDC, or 24/32 VDC, 45 Watts
  • Shipped at 12 VDC - Alter by Jumper and Fuse Change

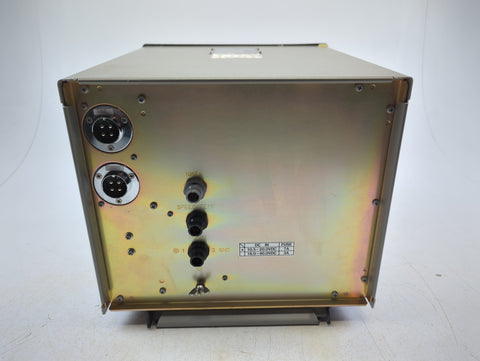

  • Transducer Plug on back of unit
    • Two 4 pin connectors (1 for HF & 1 for LF)
  • Manufacturer: Furuno
  • Part Number: FCV-292

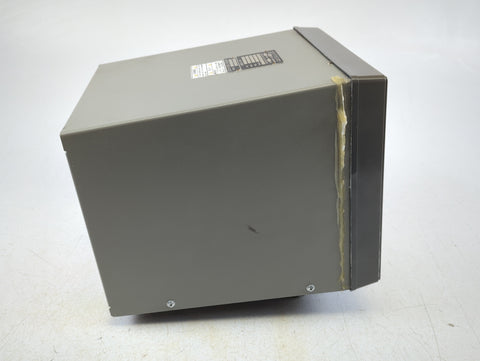

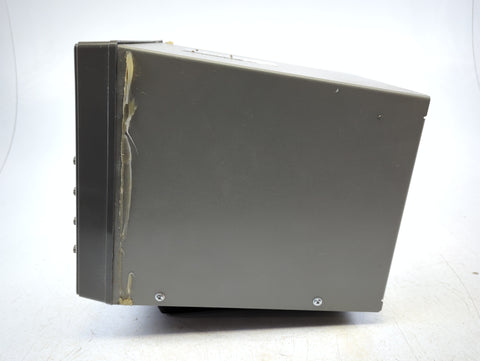

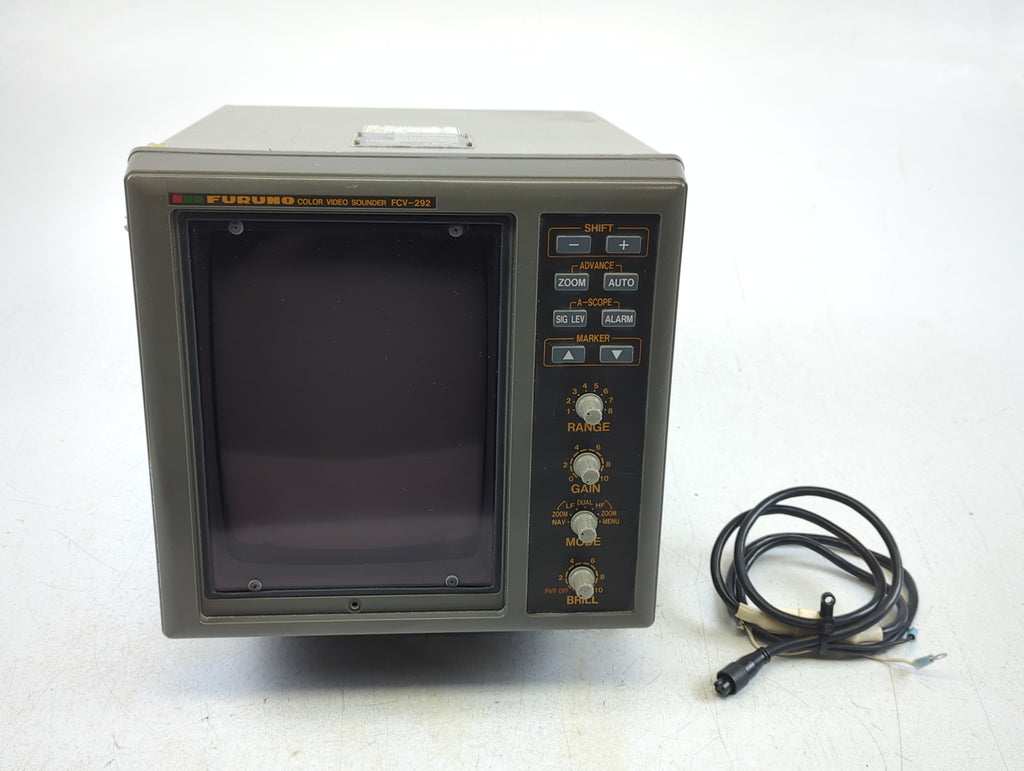

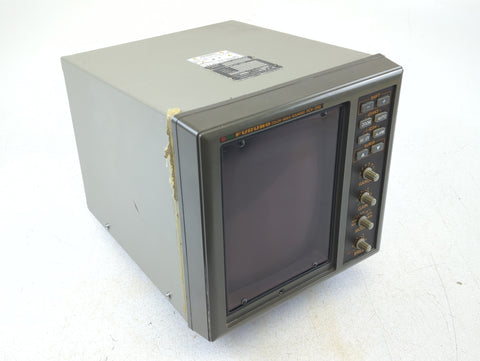

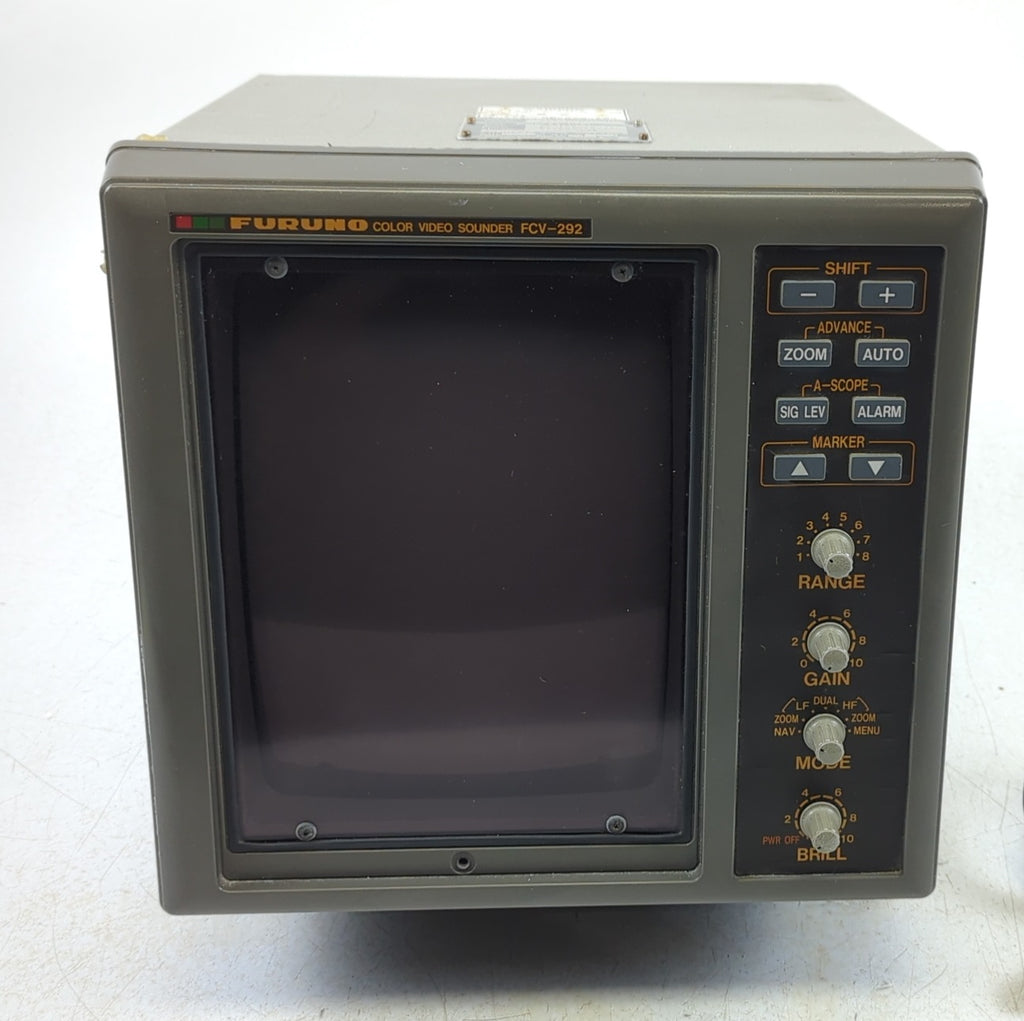

  • Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
