Furuno LC-90 Mark II Vintage Loran C 10-42V 2A 100-Waypoint Navigator LCD Display

Furuno LC-90 Vintage Loran C Navigator LCD Display
Receiving Frequency: 100 KHz
Receiver Sensitivity: 1 microVolt/m
Dynamic Range: 110 dB
Differential Dynamic Range: 80 dB
Interference Rejection: Six automatic notch filters built-in. These may be manually operated if desired.
Tracking: Master plus 5 secondaries.
Tracking Speed: 80 kts
Settling Time: 5 min. Nominal
Display Resolution:
- TD: 0.1 microseconds
- L/L: 0.01 minutes
- Range: 0.01 n.m.
Alarm Indications: Audible and visible, including Cross Track Error, Arrival, Border and Anchor
Watch alarms.
Computational Base: WGS-72
Output Signals to Ext. Equipment: Furuno CIF for course plotter, printer, scanning sonar, color video sounder; NMEA 0180 simple format for autopilot; NMEA 0183 complex format for plotters.
Ambient Temperature Range: 0 to 50 °C
Power Supply: 10-42 VDC, Universal, 9w. 110/220 VAC, 50-60 Hz, with external rectifier.
Manufacturer: Furuno
Model Number: Loran C Navigator
Part Number: LC-90

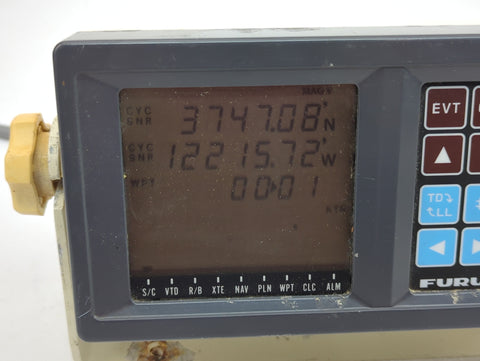

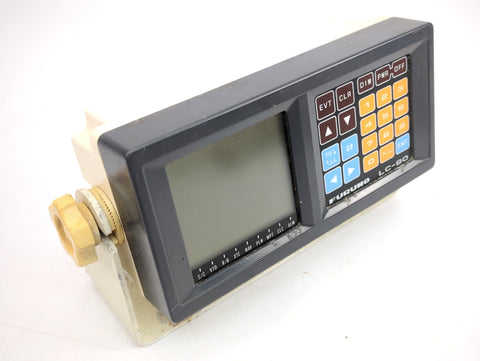

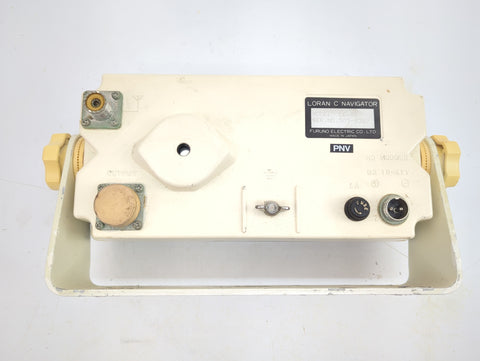

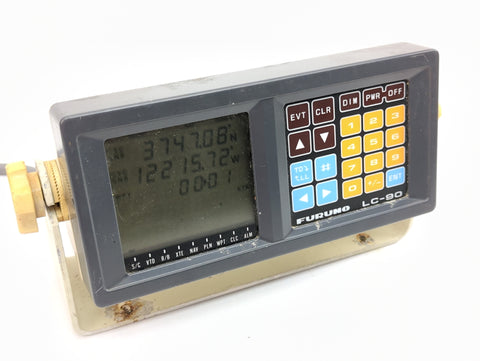

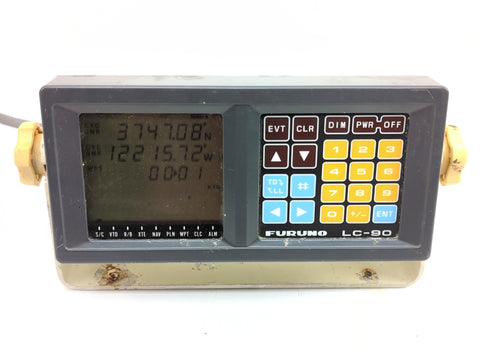

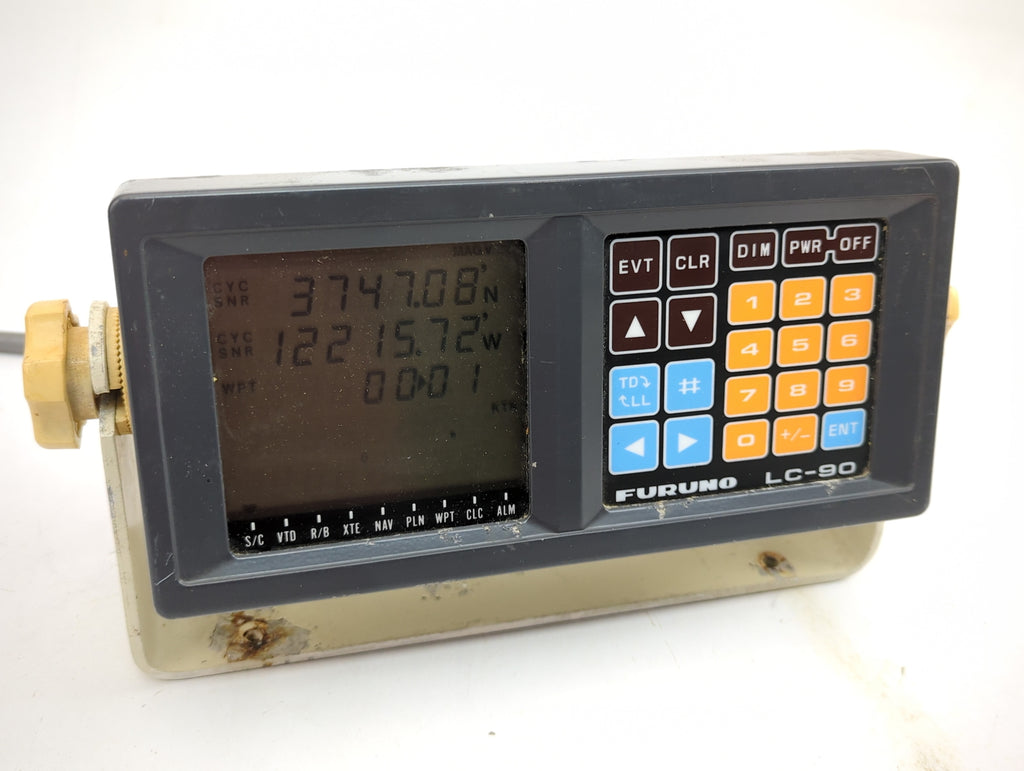

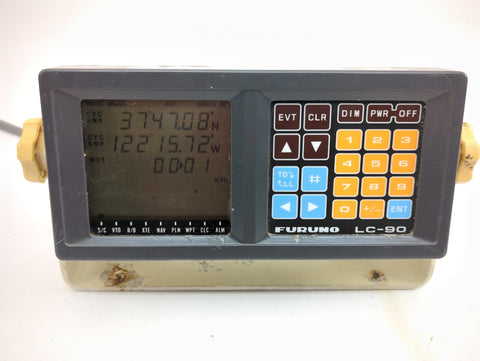

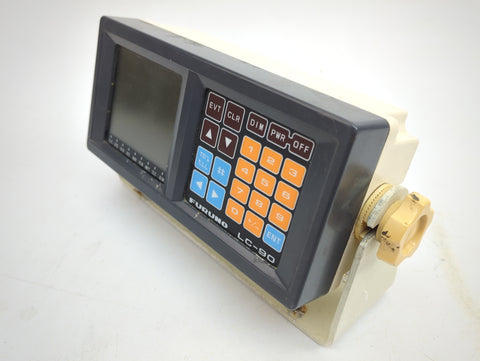

Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
