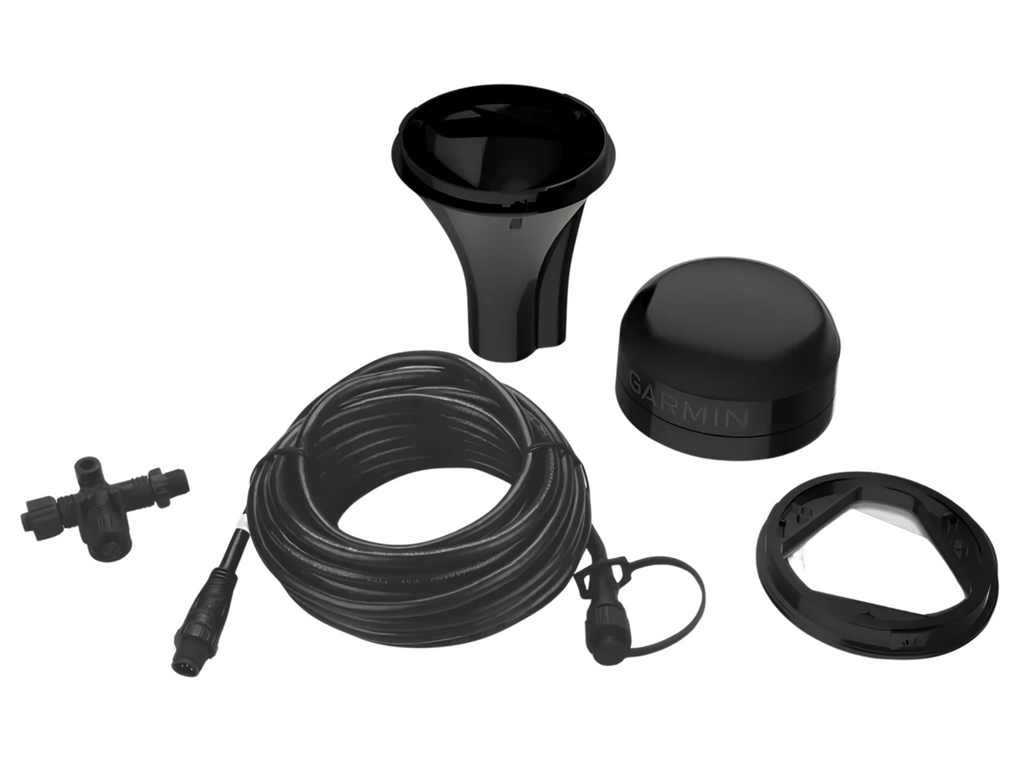

Garmin 010-02316-20 GPS 24xd Boat Marine Black NMEA 2000 GPS Receiver and Antenna
Sale
Regular price
$299.95
1 available
Garmin 010-02316-20 GPS 24xd Boat Marine Black NMEA 2000 GPS Receiver and Antenna
Features:
Multi-band GNSS: Multi-band GNSS provides precise location accuracy to within 1 meter to compatible marine multifunction displays, instrument displays and autopilots.
Expanded GNSS Support: GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo, GLONASS and BeiDou) to more accurately track in challenging conditions than GPS alone.
Magnetic Heading: The magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds.
Multi-SBAS Compatibility: Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.
High-sensitivity GPS: Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.
Mounting Options: Installation is easy with under-deck, pole and surface-mount options.
Specifications:
Dimensions (D X H): 3-19/32" X 1-15/16" (91.6 X 49.5 mm)
Weight: 6.2 oz (176 g)
Color: Black
Cable Length: 19’-8" ( m)
Temperature Range: -22° to 149° F (-30° to 65° C)
Case Material: Fully Gasketed, High-impact Plastic Alloy
Water Rating: IPX7
Compass-safe Distance: 5.9" (150 mm)
Power Source Input: 9-32 VDC
Input Current: 150 mA at 12 VDC
NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
Position Accuracy, Typical Marine use: < 1 meter CEP, < 3 meters, 95%
