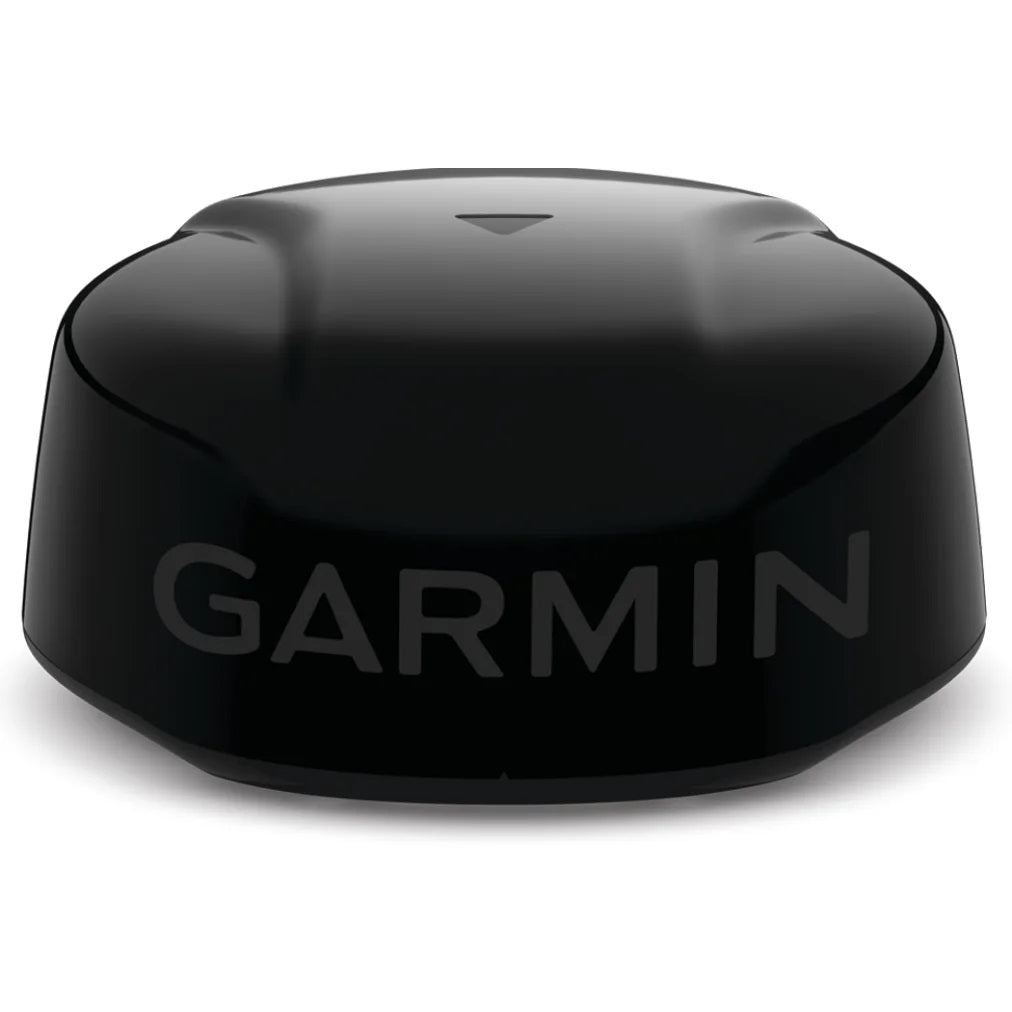

Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar
Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar
Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar
Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar

Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar

  • Sale
  • $1,999.95
  • 1 available
  • Garmin 010-02584-10 GMR Fantom 18x Marine Black 50W 18" Solid-State Radome Radar
  • Features:
    • Dual Range: The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.
    • Overlay: Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
    • Dual Radar Support: Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
    • Auto Bird Gain: Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
    • Dynamic Auto Gain: This feature automatically adjusts to your surroundings for optimal performance in all conditions.
    • MARPA Target Tracking: New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.
    • Echo Trails: See a historical “trail” on the screen to help you quickly and easily identify moving targets and potential collision threats.
    • Motionscape: MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
    • Target Size: Adjust on-screen target resolution for better separation based on your surroundings.
  • Specifications:
    • General:
      • Antenna Length: 17" (43.18 cm)
      • Rotation Speed: Up to 60 rpm, depending on settings
      • Dimensions: 20" X 9.8" (50.8 X 24.8 cm)
      • Weight: 14.0 lbs (6.4 kg)
      • Water Rating: IPX7
      • Beam Width: 5.2° Horizontal, 25° Vertical
      • Minimum Range: 6m
      • Maximum Range: 48 nm
      • Radar Type: Radome
    • Electrical:
      • Power Input: 10-32 VDC
      • Power Consumption (Standby): 4W
      • Max. Power Consumption, Transmitting (Power Save): 24W
      • Max. Power Consumption, Transmitting (Normal Mode): 33W
      • Transmit Power: 50W
  • Includes:
    • GMR Fantom 18x Dome Radar
    • Power Cable (15m/49.21’)
    • Network Cable (15m/49.21’)
    • Installation Instructions
    • Mounting Hardware Kit and Template
  • For use with:
    • GPSMAP 722 Plus
    • GPSMAP 722xs Plus
    • GPSMAP 722xs Plus Bundle
    • GPSMAP 723
    • GPSMAP 723 Sailing Bundle
    • GPSMAP 723xsv
    • GPSMAP 742 Plus
    • GPSMAP 742xs Plus
    • GPSMAP 742xs Plus Bundle
    • GPSMAP 743
    • GPSMAP 743 Sailing Bundle
    • GPSMAP 743xsv
    • GPSMAP 922 Plus
    • GPSMAP 922xs Plus
    • GPSMAP 922xs Plus Bundle
    • GPSMAP 923
    • GPSMAP 923 Sailing Bundle
    • GPSMAP 923xsv
    • GPSMAP 942 Plus
    • GPSMAP 942xs Plus
    • GPSMAP 942xs Plus Bundle
    • GPSMAP 943
    • GPSMAP 943 Sailing Bundle
    • GPSMAP 943xsv
    • GPSMAP 1022
    • GPSMAP 1022xsv
    • GPSMAP 1042xsv
    • GPSMAP 1222
    • GPSMAP 1222 Plus
    • GPSMAP 1222 Touch
    • GPSMAP 1222xsv
    • GPSMAP 1222xsv Plus
    • GPSMAP 1222xsv Plus Bundle
    • GPSMAP 1222xsv Touch
    • GPSMAP 1223
    • GPSMAP 1223 Sailing Bundle
    • GPSMAP 1223xsv
    • GPSMAP 1242 Plus
    • GPSMAP 1242 Touch
    • GPSMAP 1242xsv
    • GPSMAP 1242xsv Plus
    • GPSMAP 1242xsv Plus Bundle
    • GPSMAP 1242xsv Touch
    • GPSMAP 1243
    • GPSMAP 1243 Sailing Bundle
    • GPSMAP 1243xsv
    • GPSMAP 1623
    • GPSMAP 1623xsv
    • GPSMAP 1643
    • GPSMAP 1643xsv
    • GPSMAP 8410
    • GPSMAP 8410xsv
    • GPSMAP 8412
    • GPSMAP 8412xsv
    • GPSMAP 8416
    • GPSMAP 8416xsv
    • GPSMAP 8417 MFD
    • GPSMAP 8422 MFD
    • GPSMAP 8424 MFD
    • GPSMAP 8610
    • GPSMAP 8610xsv
    • GPSMAP 8612
    • GPSMAP 8612xsv
    • GPSMAP 8616
    • GPSMAP 8616xsv
    • GPSMAP 8617
    • GPSMAP 8622
    • GPSMAP 8624
    • GPSMAP 8624 MFD
    • GPSMAP 8700 Black Box
    • GPSMAP 9010
    • GPSMAP 9010xsv
    • GPSMAP 9013
    • GPSMAP 9013xsv
    • GPSMAP 9017
    • GPSMAP 9017xsv
    • GPSMAP 9019
    • GPSMAP 9022
    • GPSMAP 9024
    • GPSMAP 9027
    • GPSMAP 9210
    • GPSMAP 9210xsv
    • GPSMAP 9213
    • GPSMAP 9213xsv
    • GPSMAP 9217
    • GPSMAP 9217xsv
    • GPSMAP 9219
    • GPSMAP 9222
    • GPSMAP 9224
    • GPSMAP 9227
  • Manufacturer: Garmin
  • Model Number: GMR Fantom 18x
  • Part Number: 010-02584-10

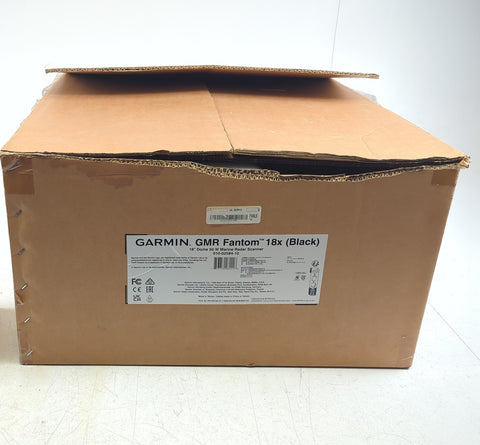

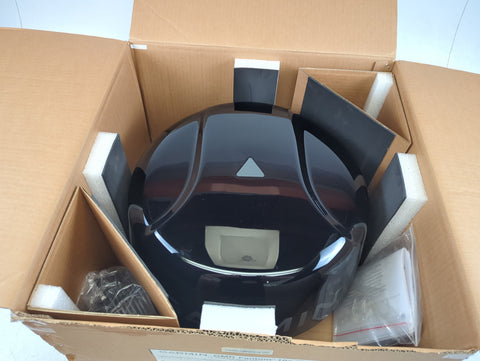

  • Condition: New! In Stock, Ready to Ship! NEW OPEN BOX. See Photos.
