  • Sale
  • $299.95
  • 1 available
  • Garmin GHC20 Boat Marine QVGA Color LCD Autopilot Control Unit
  • Display Type: QVGA Color LCD Display
  • Display Resolution, WxH: 320 X 240 pixels
  • Unit Dimensions, WxHxD: 4.3 " X 4.4 " X 1.9 " (10.9 X 11.2 X 4.8 cm)
  • NMEA Output: NMEA 0183, NMEA 2000
  • Supply Voltage: Powered by NMEA 2000 Bus, 9-16 VDC, Units Operate Up to 32 VDC
  • Operating Temperature: -15° C to 70 C° (5° F to 158° F)
  • Maximum Power Consumption: 3W
  • Viewing Angle: 170°
  • Brightness: 1200 cd/m2 (NIT)
  • Waterproof Rating: IPX7
  • NMEA 2000 LEN (Load Equivalency Number): 7 (350 mA at 9VDC)
  • Features:
    • Easy to read from a distance and 170 degree viewing angle.
    • Large, bright 4” color glass-bonded display with anti-glare finish.
    • Enhanced daylight readability with a new high contrast color option.
    • Compatible with legacy Garmin autopilots, as well as, newer Garmin autopilots and can be controlled with quatix.
    • Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes.
  • Includes:
    • GHC 20 Autopilot Control Unit
    • Black Trim Piece Snap Cover
    • Protective Cover
    • Flush Mount Gasket and Hardware
    • NMEA 2000 Drop Cable
    • NMEA 2000 T-Connector
  • Manufacturer: Garmin
  • Model Number: GHC20, GHC 20, GHC-20
  • Part Number: 010-01141-00

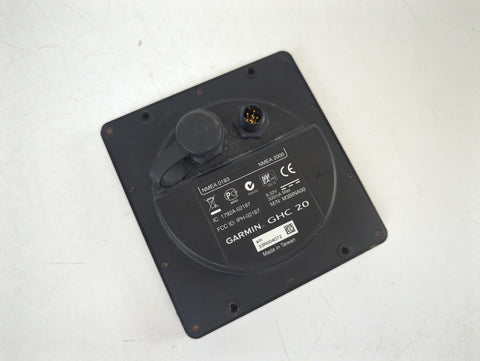

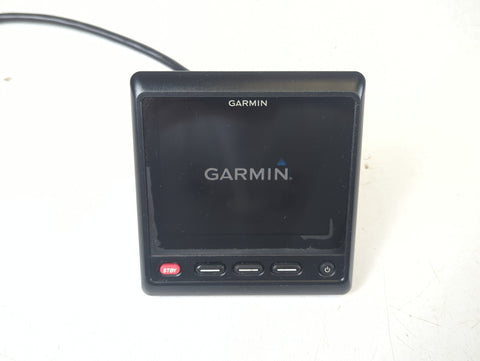

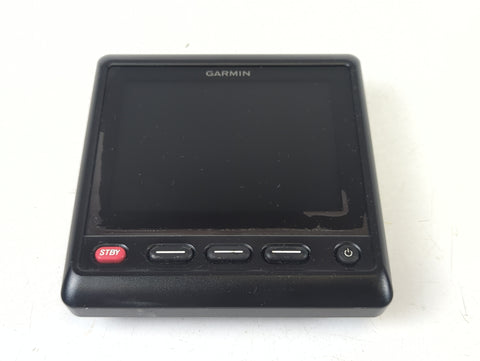

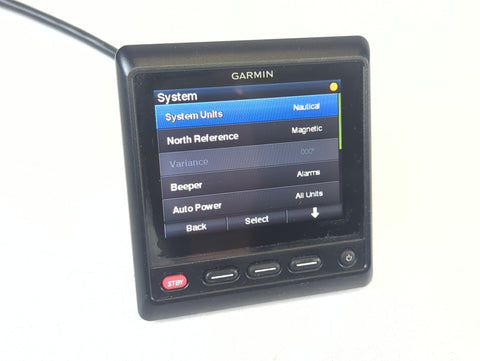

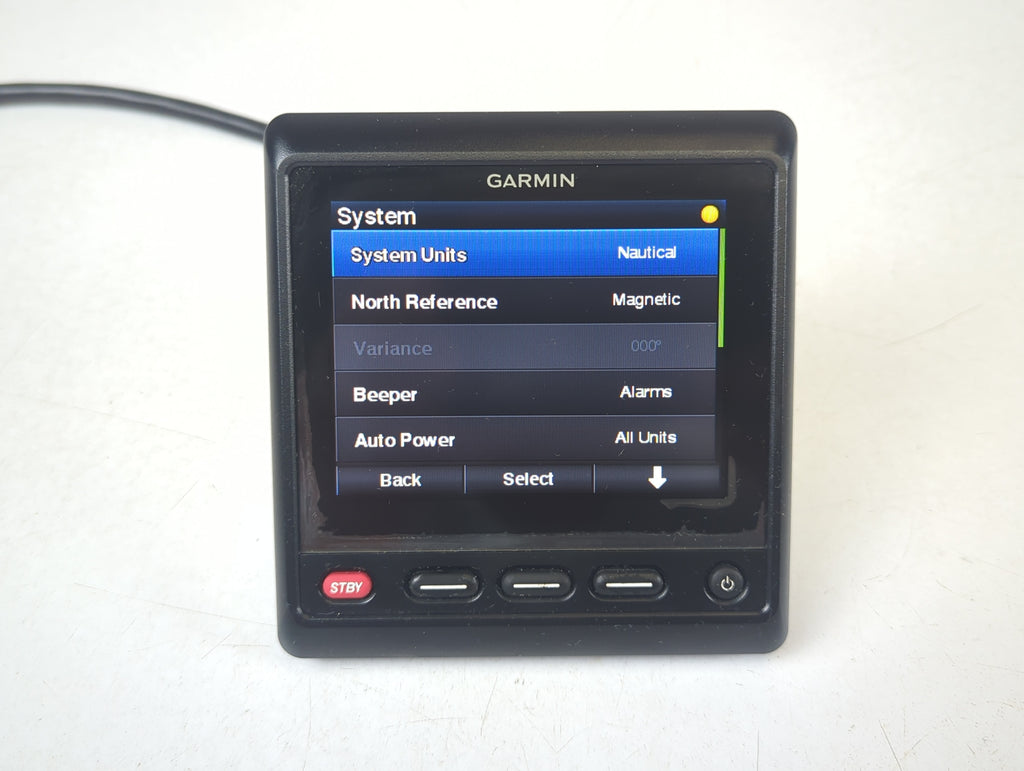

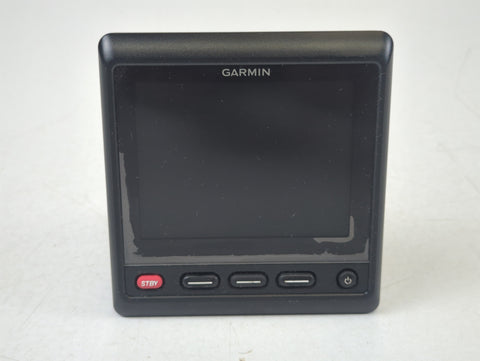

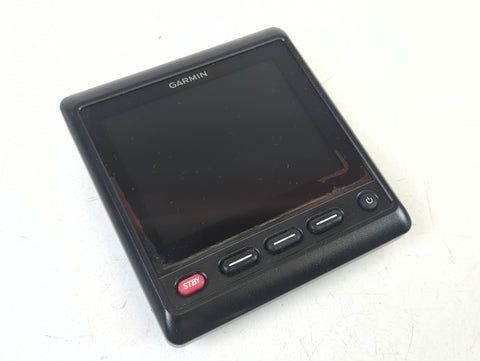

  • Condition: In Stock, Ready to Ship! This unit is in fair to good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
