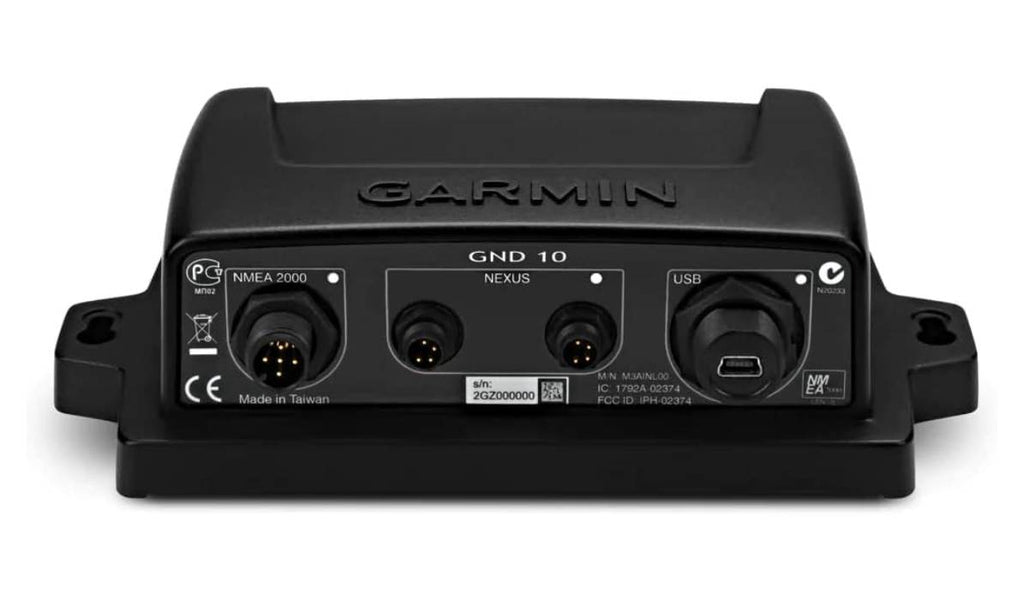

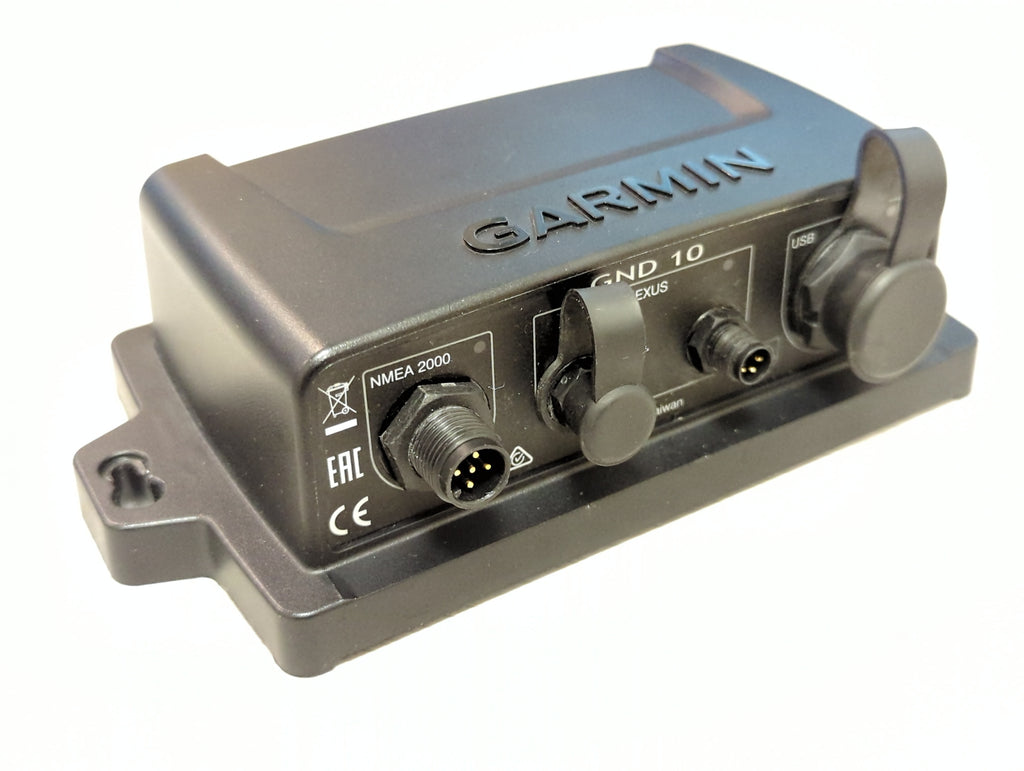

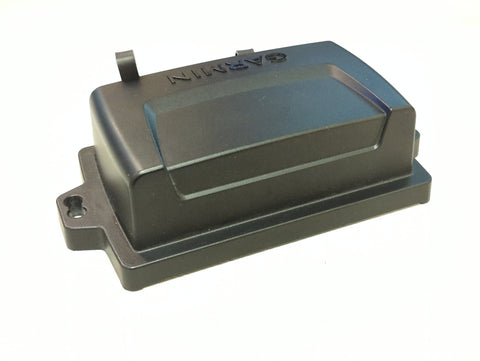

Garmin GND-10 Marine NMEA 2000 Nexus Network Black Box Bridge
The GND-10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind and gWind Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.
GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC applications can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.
Features:
Converts data between the Nexus network and NMEA 2000
Provides compatibility between Nexus and Garmin products
Simple plug-and-play installation between Nexus, NMEA 2000 and USB
No user setup or system configuration required
Allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks
Specifications:
Dimensions: 6.70” X 3.54” X 1.97” (170 X 90 X 50 mm)
Weight: 196g
Waterproof: Yes (IPX7)
Temperature Range: 5°F to 158°F (-15°C to 70°C)
Voltage Range: 9-16 V
Power Usage: 0.52 W
Compass Safe Distance: 0.1 m
Accuracy Angle: N/A
Speed: N/A
NMEA 2000 Load Equivalency Number (LEN): 4
Wireless Connectivity: No
For use with:
GMI 20
GMI Wired Start Pack 52
GMI/GNX Wired Sail Pack 52
GNX 20
GNX 21
GNX 120
GNX 130
GNX Wind
GNX Wired Sail Pack 43
GNX Wired Sail Pack 52
GNX Wireless Sail Pack 43
GNX Wireless Sail Pack 52
GNX Wireless Wind Pack
GPSMAP 421
GPSMAP 421s
GPSMAP 441
GPSMAP 441s
GPSMAP 521
GPSMAP 521s
GPSMAP 526
GPSMAP 526s
GPSMAP 527xs GPSMAP 536
GPSMAP 536s
GPSMAP 541
GPSMAP 541s
GPSMAP 546
GPSMAP 546s
GPSMAP 547xs
GPSMAP 720
GPSMAP 720s
GPSMAP 722
GPSMAP 722 Plus
GPSMAP 722xs GPSMAP 722xs Plus
GPSMAP 722xs Plus Bundle
GPSMAP 723
GPSMAP 723xsv
GPSMAP 740
GPSMAP 740s
GPSMAP 741xs
GPSMAP 742
GPSMAP 742 Plus
GPSMAP 742xs
GPSMAP 742xs Plus
GPSMAP 742xs Plus Bundle
GPSMAP 743
GPSMAP 743xsv
GPSMAP 840xs
GPSMAP 922
GPSMAP 922 Plus
GPSMAP 922xs
GPSMAP 922xs Plus
GPSMAP 922xs Plus Bundle
GPSMAP 923
GPSMAP 923xsv
GPSMAP 942
GPSMAP 942 Plus
GPSMAP 942xs
GPSMAP 942xs Plus
GPSMAP 942xs Plus Bundle
GPSMAP 943
GPSMAP 943xsv
GPSMAP 1020xs
GPSMAP 1022
GPSMAP 1022xsv
GPSMAP 1040xs
GPSMAP 1042xsv
GPSMAP 1222
GPSMAP 1222 Plus
GPSMAP 1222 Touch
GPSMAP 1222xsv
GPSMAP 1222xsv Plus
GPSMAP 1222xsv Plus Bundle
GPSMAP 1222xsv Touch
GPSMAP 1223
GPSMAP 1223xsv
GPSMAP 1242 Plus
GPSMAP 1242 Touch
GPSMAP 1242xsv
GPSMAP 1242xsv Plus
GPSMAP 1242xsv Plus Bundle
GPSMAP 1242xsv Touch
GPSMAP 1243
GPSMAP 1243xsv
GPSMAP 1623
GPSMAP 1623xsv
GPSMAP 1643
GPSMAP 1643xsv
GPSMAP 4008
GPSMAP 4010
GPSMAP 4012
GPSMAP 4208
GPSMAP 4210
GPSMAP 4212
GPSMAP 5008
GPSMAP 5012
GPSMAP 5015
GPSMAP 5208
GPSMAP 5212
GPSMAP 5215
GPSMAP 6208
GPSMAP 6212
GPSMAP 7212
GPSMAP 7215
GPSMAP 7407
GPSMAP 7407xsv
GPSMAP 7408
GPSMAP 7408xsv
GPSMAP 7410
GPSMAP 7410xsv
GPSMAP 7412
GPSMAP 7412xsv
GPSMAP 7416
GPSMAP 7416xsv
GPSMAP 7607
GPSMAP 7607xsv
GPSMAP 7608
GPSMAP 7608xsv
GPSMAP 7610
GPSMAP 7610xsv
GPSMAP 7612
GPSMAP 7612xsv
GPSMAP 7616
GPSMAP 7616xsv
GPSMAP 8208 MFD
GPSMAP 8212 MFD
GPSMAP 8215 MFD
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8417 MFD
GPSMAP 8422 MFD
GPSMAP 8424 MFD
GPSMAP 8500 Black Box
GPSMAP 8530 Black Box
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 8616
GPSMAP 8616xsv
GPSMAP 8617
GPSMAP 8622
GPSMAP 8624
GPSMAP 8624 MFD
GPSMAP 8700 Black Box
gWind
gWind Race
Volvo Penta Glass Cockpit System
Manufacturer: Garmin
Model Number: GND-10
Part Number: 010-01226-00
Also Known As: 0100122600

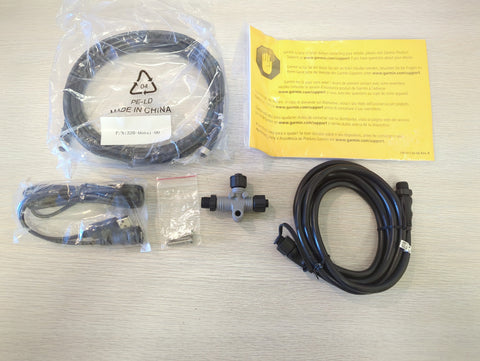

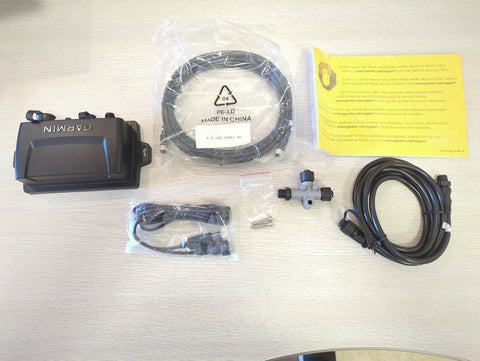

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
