With its sleek design, powerful processing and upgraded IPS display, this advanced 7” chartplotter integrates seamlessly into your Garmin marine system.
Features:
Easily integrate with more engines.
Connect to compatible third-party devices with digital switching and OneHelm integrations.
Easily build your marine system by using our advanced network connectivity.
Manage your marine experience from nearly anywhere.
Specifications:
General:
Dimensions: 7.6" X 5.5" X 2.9" (19.2 X 14.0 X 7.4 cm)
Weight: 2.8 lbs (1.3 kg)
Water Rating: IPX7
Touchscreen: Yes
Display Type: WSVGA
Display Size: 6.1" X 3.5"; 7.0" diagonal (15.4 X 9.1 cm; 17.8 cm diagonal)
Display Resolution: 1024 x 600 pixels
Mounting Options: Bail, flush or flat
Input: Touchscreen
Polarized Lens Viewability: Yes
Maps & Memory:
Preloaded with worldwide basemaps
Accepts Data Cards: 2 microSD cards (back of unit)
Waypoints: 5000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Roues: 100
Sensors:
GPS, GLONASS, Galileo
NMEA 2000, NMEA 0183 Compatible
Supports WAAS
Built-In Receiver: 10 Hz
Electrical:
Power Input: 10 to 32 VDC
Typical Current Draw at 12 VDC: 1.08 A
Maximum Current Draw at 12 VDC: 1.45 A
Maximum Power Usage at 10 VDC: 17.6W
Networking & Connections:
NMEA 2000 Ports: 1
NMEA 0183 Input (RX) Ports: 1
Video Input Ports: 1
J1939 Ports: 1
Garmin Marine Network Ports: 1
USB Ports
Bluetooth Pairing
ANT (Connectivity)
Garmin Wi-Fi Network (Local Connection)
Manufacturer: Garmin
Model Number: GPSMAP 743
Part Number: 010-02365-00

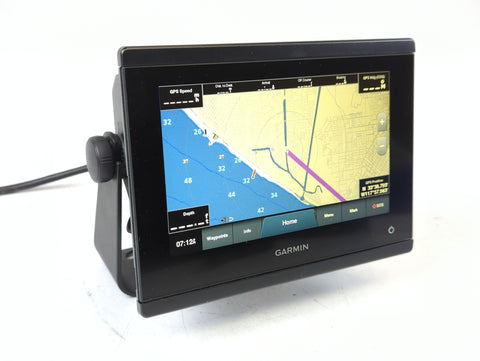

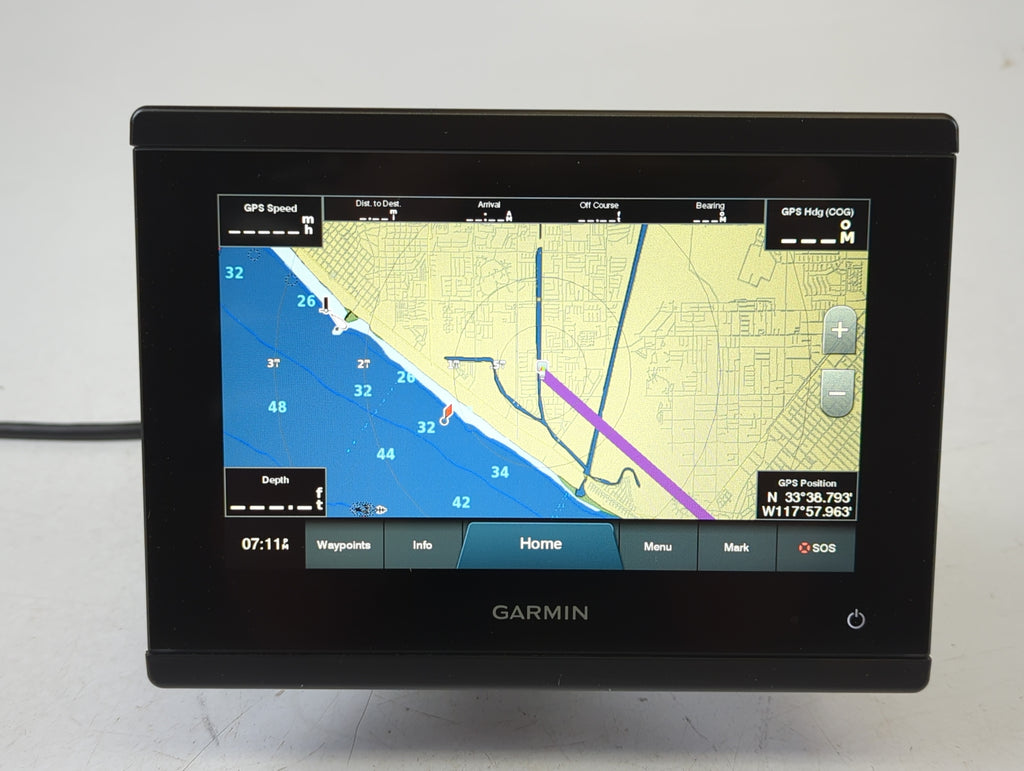

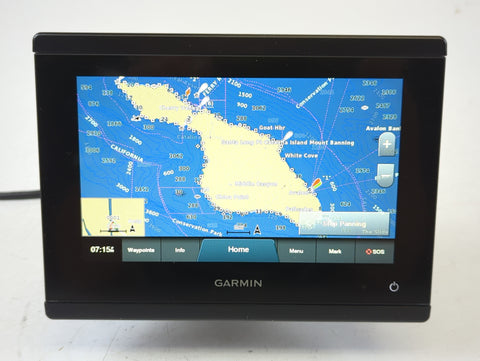

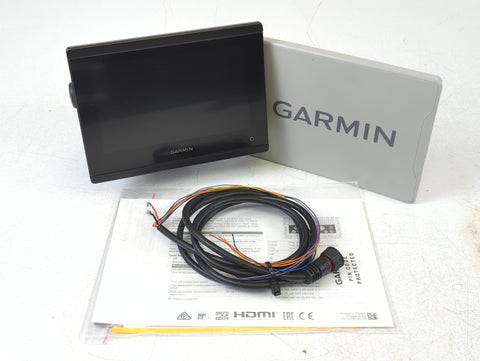

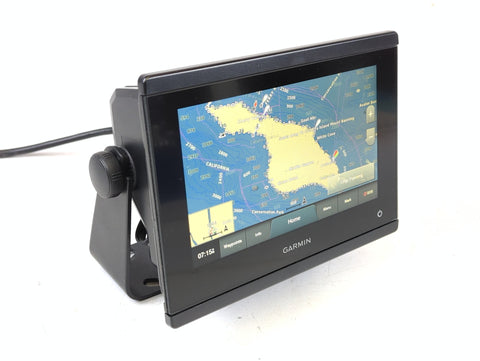

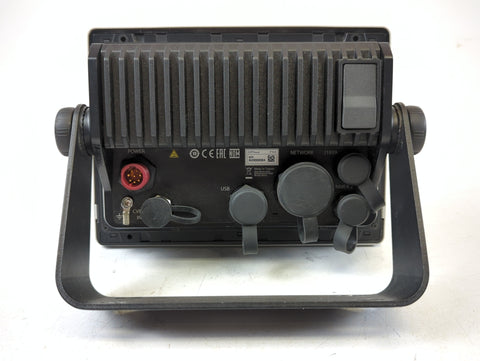

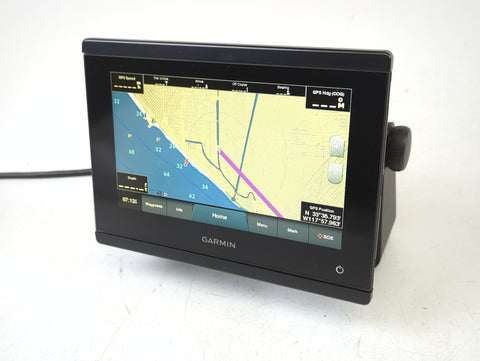

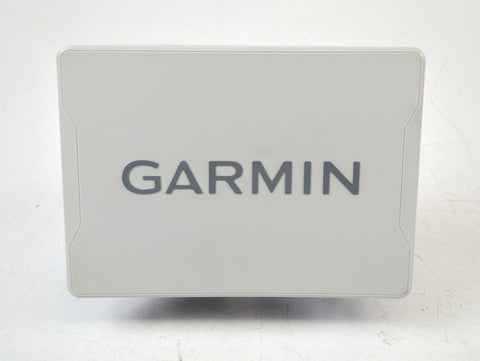

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
