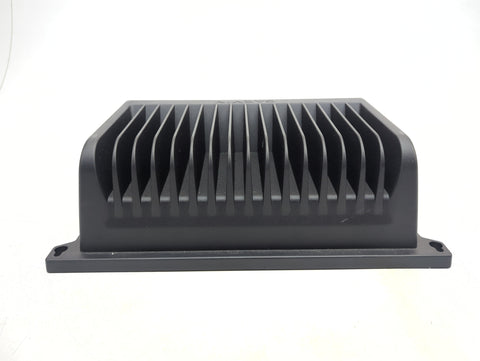

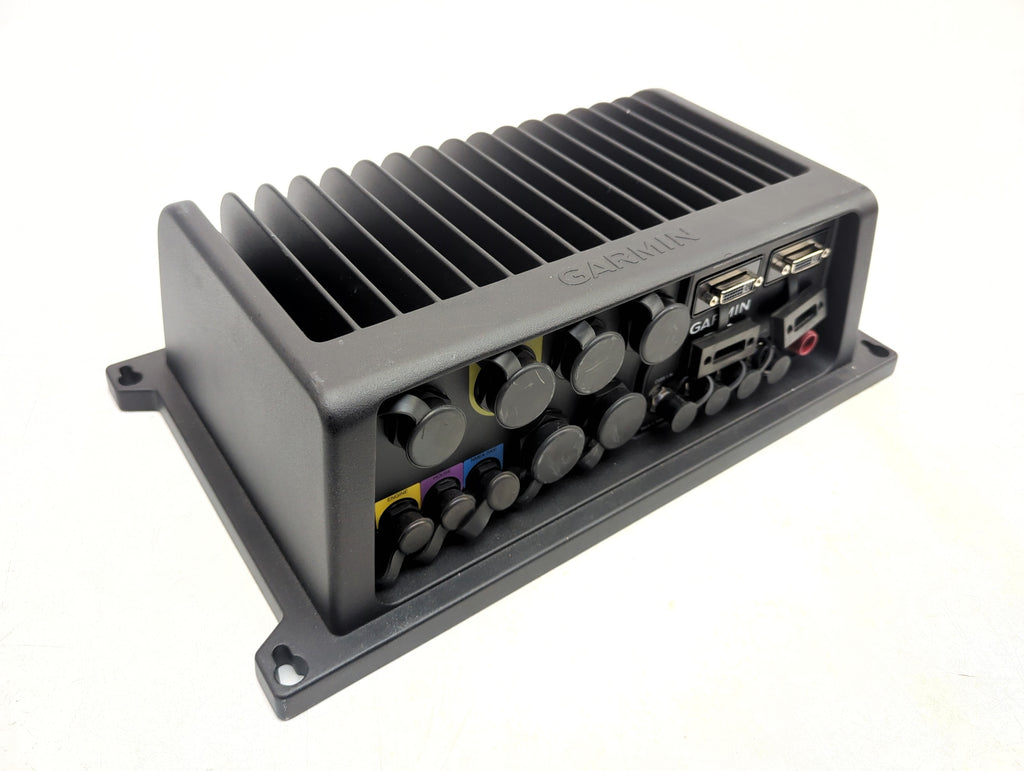

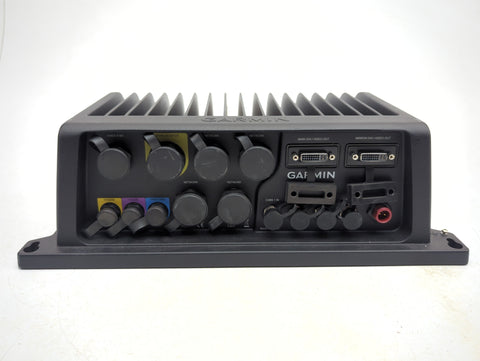

Garmin GPSMAP 8530 Black Box 010-01019-02 Color FishFinder Radar GPS Chartplotter System Processor with Video
Sale
Regular price
$1,299.95
2 available
Garmin GPSMAP 8530 Black Box Color FishFinder Radar GPS Chartplotter System Processor with Video
Compatible with our 15-inch, 17-inch and 19-inch multi-touch marine monitors
Switch all monitors in sync to a custom preset mode with SmartMode
Integrates internal sonar sharing, multiple black box sonars, Garmin ClearVü and Garmin SideVü with GCV 10, autopilot, connectivity, apps, engine data and more
Pairs with external GPS 19x 10 Hz GPS/GLONASS receiver to update position and heading 10 times per second
Includes worldwide BlueChart g2 cartography
Specifications:
General:
Dimensions: 16 X 9.4” X 4.9” (406 X 239.5 X 123.5 mm)
Weight: 4.92 kg (10.85 lbs)
Water Rating: IPX7
Display Type: None (external display)
Display Size: None
Display Resolution: Up to 1280 x 1024 pixels (external monitor required)
Maps & Memory:
Accepts Data Cards: 2 SD Cards (Garmin card reader required)
Waypoints: 5,000
Navigation Routes: 100
Sensors:
Receiver: 10 Hz high-sensitivity
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Chartplotter Features:
Smart Mode Compatible: Yes
AIS: Yes
DSC: Yes
Supports Fusion-Link Compatible Radios: Yes
GSD Black Box Sonar Support: Yes
GCV Black Box Sonar Support: Yes
ActiveCaptain Compatible: Yes (Wi-Fi Adapter Kit required, sold separately)
GRID Compatible: Yes
Connections:
NMEA 0183 Input Ports: 4
Video Input Ports: 4 BNC Composite
Video Output Ports: 2 DVI-I
Garmin Marine Network Ports: 4
For use with:
GPSMAP 7407
GPSMAP 7407xsv
GPSMAP 7408
GPSMAP 7408xsv
GPSMAP 7410
GPSMAP 7410xsv
GPSMAP 7412
GPSMAP 7412xsv
GPSMAP 7416
GPSMAP 7416xsv
GPSMAP 7607
GPSMAP 7607xsv
GPSMAP 7608
GPSMAP 7608xsv
GPSMAP 7610
GPSMAP 7610xsv
GPSMAP 7612
GPSMAP 7612xsv
GPSMAP 7616
GPSMAP 7616xsv
GPSMAP 8208 MFD
GPSMAP 8212 MFD
GPSMAP 8215 MFD
Manufacturer: Garmin
Model Number: GPSMAP 8530 Black Box
Part Number: 010-01019-02
Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
