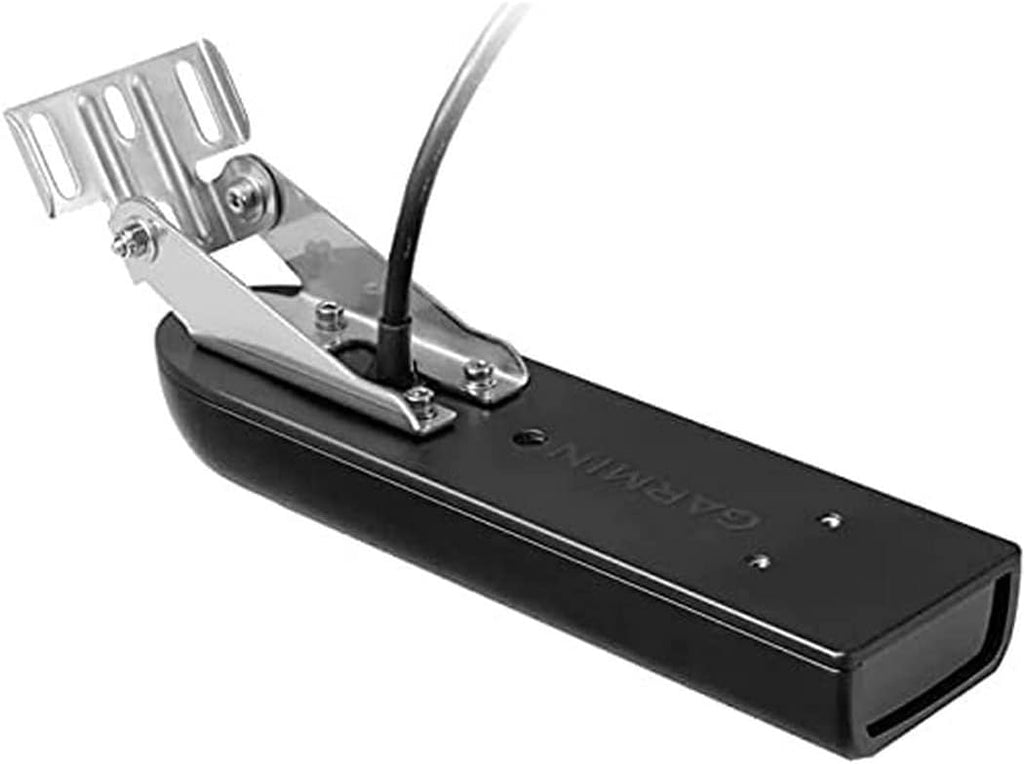

Garmin GT23M-TM 010-12404-98 Marine Transom Mount 4-PIN Depth and Temperature Transducer
Garmin GT23M-TM 010-12404-98 Marine Transom Mount 4-PIN Depth and Temperature Transducer
Garmin GT23M-TM 010-12404-98 Marine Transom Mount 4-PIN Depth and Temperature Transducer

Garmin GT23M-TM 010-12404-98 Marine Transom Mount 4-PIN Depth and Temperature Transducer

  • Sale
  • $199.95
  • 1 available
  • Garmin GT23M-TM Marine Transom Mount 4-PIN Depth and Temperature Transducer

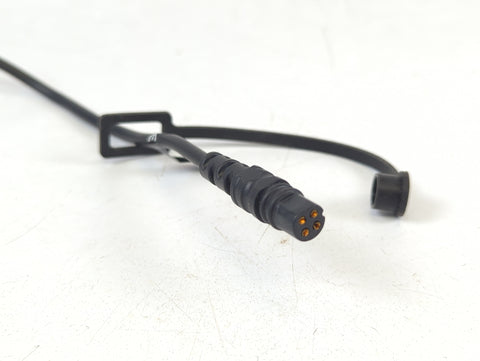

  • 4-PIN CONNECTOR
  • Frequency: CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) and 455 kHz (445-465 kHz)
  • Power: CHIRP Traditional 600W; ClearVü 500W
  • Beamwidth: Traditional: 24°-13°; ClearVü: 2.0°x51° @ 260 kHz 1.4°x29° @ 455 kHz
  • Maximum Depth: Traditional: 1,800 ft.; ClearVü: 1,000 ft.
  • Cable Length: 30'
  • Type: Depth and Temperature
  • Number of Pins: 4
  • May require 320-01034-00 4-PIN TO 5-PIN ADAPTER CABLE (Not included)
  • Supported Deadrise/Transom Angles: 0°-70° Transom
  • Manufacturer: Garmin
  • Model Number: GT23M-TM
  • Part Number: 010-12404-98
  • Condition: New! In Stock, Ready to Ship! 4-PIN. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
