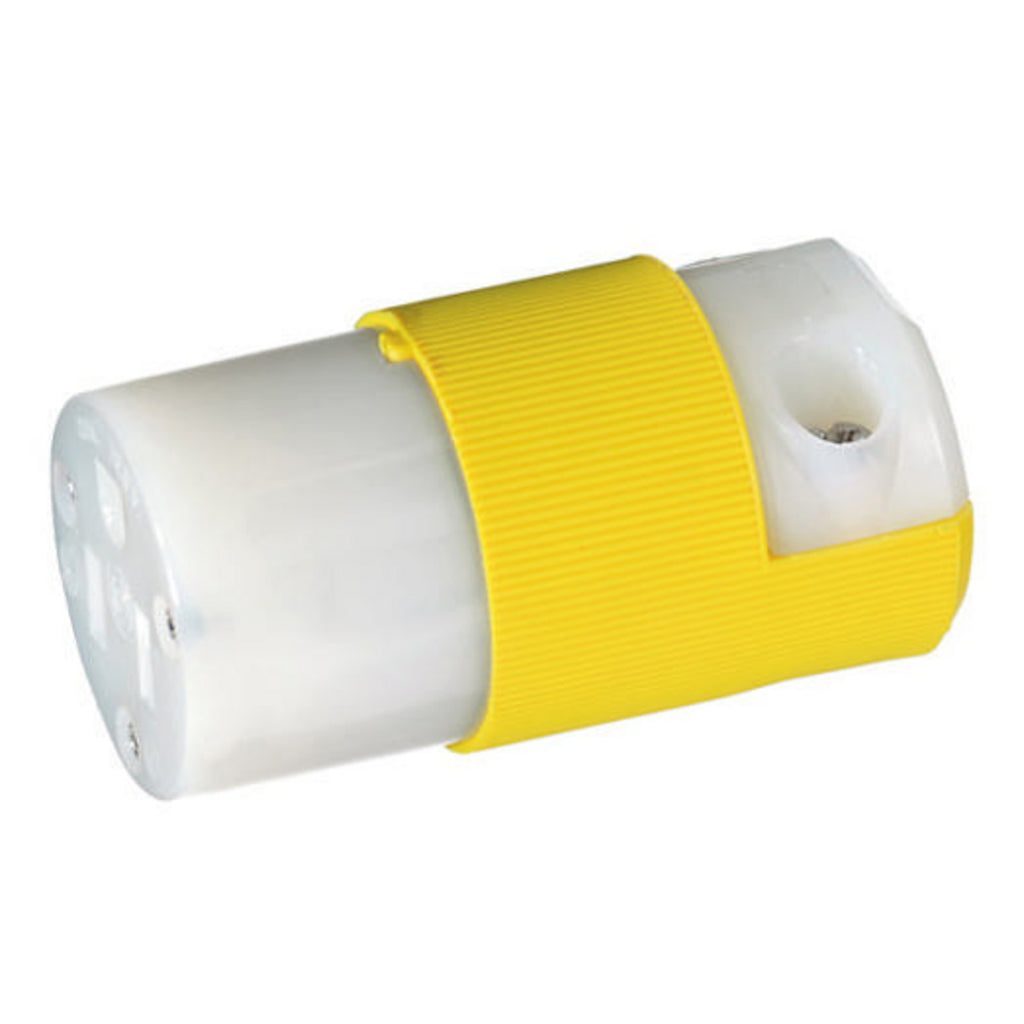

Hubbell 52CM69C Marine 15A 125V 2-Pole 3-Wire Insulgrip Straight Blade Female Connector

Marine 15A 125V 2-Pole 3-Wire Insulgrip Straight Blade Female Connector
General Specifications:
- Color: Yellow
- Number of Poles: 2
- NEMA Rating: 5-15R
- Material: Polycarbonate
- Mounting: Cord Mounted
- Style: Corrosion Resistant
- Maximum Horsepower: 0.50
- Dimensions: 2.78” X 1.52” X 2.78”
- Cord Range: 0.250"-0.655" (6.4-16.6)
- Operating Temperature: Maximum Continuous 75°C and Minimum -40°C without Impact
- Performance:
  - Electrical - Current Interrupting - Certified for current interrupting at full rated current
  - Electrical - Dielectric Voltage - Withstands 2,000V minimum
  - Environmental - Flammability - UL 94 HB or better
  - Environmental - IP Suitability - IP20
  - Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  - Mechanical - Terminal Accommodation - #18-10 AWG. Stranded copper wire only
  - Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Electrical Specifications:
- Amperage: 15A
- Voltage: 125 VAC
- Phase: Single Phase
- Dielectric Strength: Withstands 2,000V minimum
Conductor Specifications:
- Number of Wires: 3
- Wire Size: #18 AWG to #10 AWG
- Conductor Range: #14 AWG to #12 AWG
Manufacturer: Hubbell
Model Number: Connector
Part Number: 52CM69C
Also Known As: Marinco 5269CR
