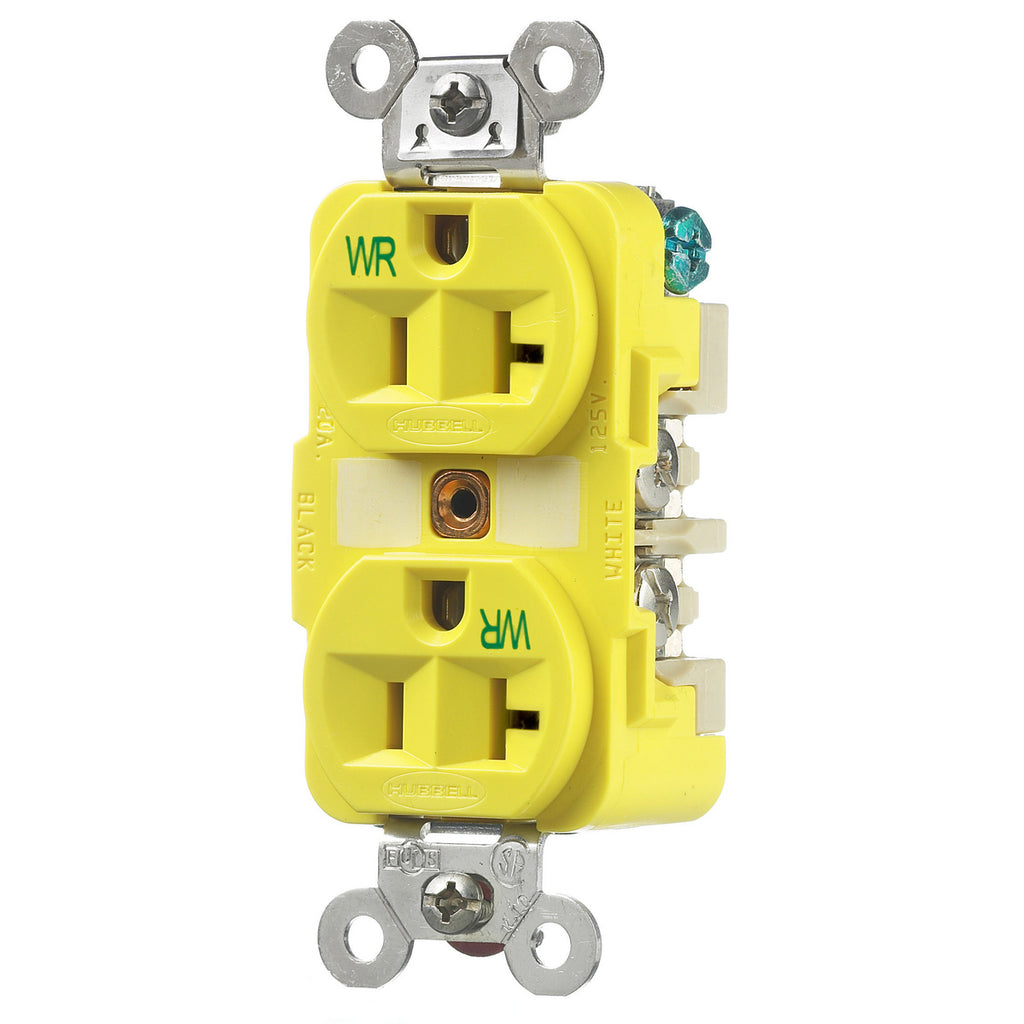

Hubbell 53CM62 Extra Heavy Duty Yellow 125V 20A 2-Pole 3-Wire Duplex Receptacle Outlet

Hubbell 53CM62 Extra Heavy Duty Yellow 125V 20A 2-Pole 3-Wire Duplex Receptacle Outlet

  • Sale
  • $64.95
  • 1 available
  • Hubbell Extra Heavy Duty Yellow 125V 20A 2-Pole 3-Wire Duplex Receptacle Outlet
  • General Specifications:
    • Color: Yellow
    • Dimensions: 3.28” X 1.65” X 1.19” (83.3 X 41.9 X 3.2 mm)
    • Environmental Conditions: Corrosion Resistant
    • EU RoHS Indicator: Yes
    • Maximum Horsepower: 1
    • Mounting: Screw Mounting
    • Number of Poles: 2
    • Operating Temperature: -40°C to 75°C
  • Electrical Ratings:
    • Amperage Rating: 20A
    • Connectivity: Back and Side Wired Screw Terminals
    • Dielectric Strength: Withstands 2,000V minimum
    • Phase: Single Phase
    • Voltage Rating: 125 VAC
    • Wattage: 2500W
  • Conductor Related:
    • Number of Wires: 3
    • Wire Size: #12 AWG to #10 AWG
  • Certifications and Compliance:
    • Industry Standards:
      • Certified to CSA 22.2, No. 42 File 285
      • Fed. Spec. WC596
      • NEMA WD-6 Compliant
      • UL Listed to UL498 File No. E2186
    • NEMA Rating: 5-20R
    • Standards - RoHS Compliance Status: CM
  • Manufacturer: Hubbell
  • Model Number: Duplex Receptacle
  • Part Number: 53CM62
  • Also Known As: HBL53CM62
