  • Sale
  • $299.95
  • 1 available
  • Icom AT-130 Single Side Band SSB Radio HF Automatic Antenna Tuner
  • Easily matches Icom HF marine transceivers.
  • Easy and simple installation, just connect the control cable and antenna wire and go!
  • Full Automatic Tuning
  • Operation on any size ship.
  • Housed in a completely weather resistant acrylic case with a rubber gasket.
  • 45 memories for shorter tuning time.
  • Super capacitor for memory backup.
  • Rated Voltage: 13.6 V DC +/-15% (negative ground) (supplied from an Icom HF marine transceiver)
  • Current Drain (at 13.6 V DC): 2 A
  • Frequency Coverage: 1.6~30 MHz (with the antenna length 7 m (23 ft) or longer)
  • Input Impedance: 50 ohms (unbalanced)
  • Max. Input Power: 150 W (PEP)
  • Input Power During Tuning: 10 W
  • Auto Tuning Time: 1.5 sec. (returning for a memorized frequency), typically 2~3 sec. (when operating band has been changed)
  • Auto Tuning Accuracy: VSWR 2.0:1
  • Insertion Loss: 0.5 dB (with a 50 ohms load, after tuning)
  • Dimensions: 230(W) x 340(H) x 80(D) mm; 9.1(W) x 13.4(H) x 3.1(D) in (projections not included)
  • Manufacturer: Icom
  • Model Number: Antenna Tuner
  • Part Number: AT-130

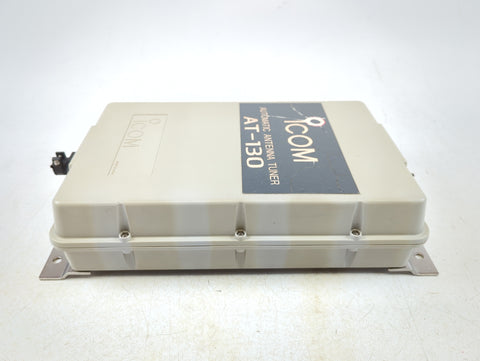

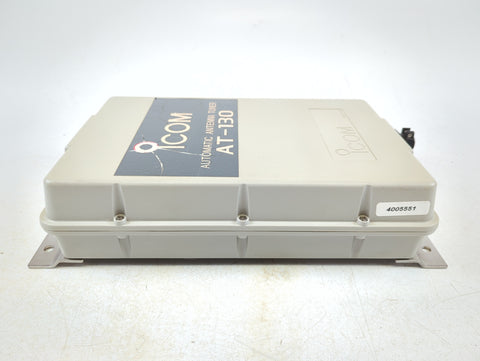

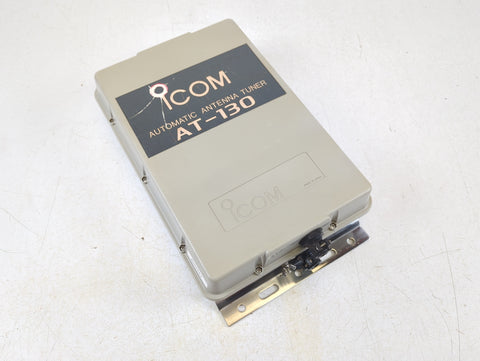

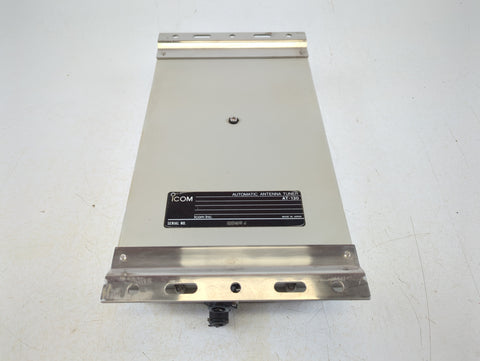

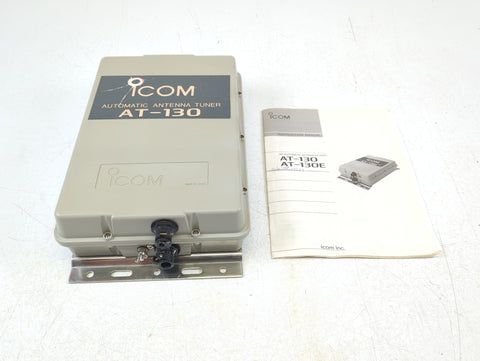

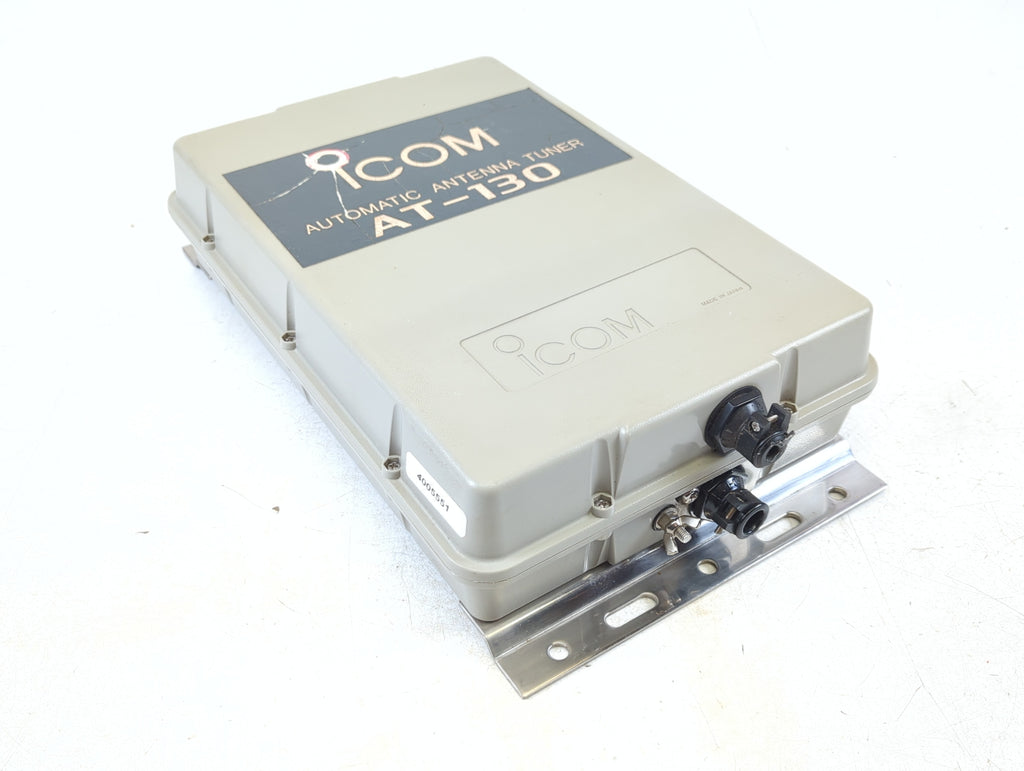

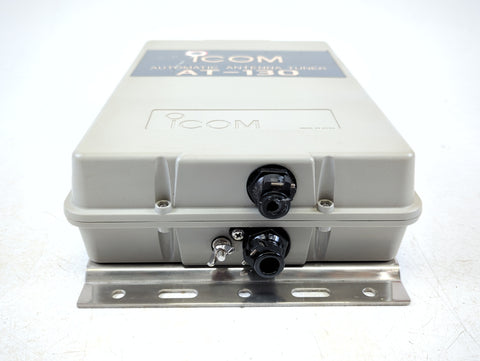

  • Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
