Icom AT-140 HF Marine SSB Ham Radio Single Sideband Telephone Antenna Tuner

  • Sale
  • $399.95
  • 1 available
  • Icom AT-140 HF Marine SSB Ham Radio Single Sideband Telephone Antenna Tuner
  • Specifications:
    • Weight (approx.): 2.5 kg; 5.5 lb
    • Power Supply Requirement: 13.6V DC (supplied from the HF transceiver)
    • Current Drain: Maximum 2A
    • Operating Temperature Range: –30°C to +60°C (–22°F to +140°F)
    • Antenna Connector: SO-239 (50 Ω)
    • Maximum Input Power: 150 W (PEP) 100 W (continuous)
    • Automatic Tuning Time: Approximately 2 to 3 seconds (general condition) Maximum 15 seconds, Approximately 1 second (re-tuning for a memorized frequency)
    • Automatic Tuning Accuracy: SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ)
    • Usable Pole Diameter: 32 to 60 mm; 1.3 to 2.4 inches
    • For 1.6–30 MHz (with 7 m; 23.0 feet) or longer antenna element)
  • For use with:
    • IC-78 HF Transceivers
    • IC-F8101 HF Transceivers
    • IC-M710 HF Transceivers
    • IC-M802 HF Transceivers
    • IC-M803 HF Transceivers
    • IC-M700PRO SSB Radio Telephones
  • Manufacturer: Icom
  • Model Number: Telephone Antenna Tuner
  • Part Number: AT-140
  • Also Known As: AT140

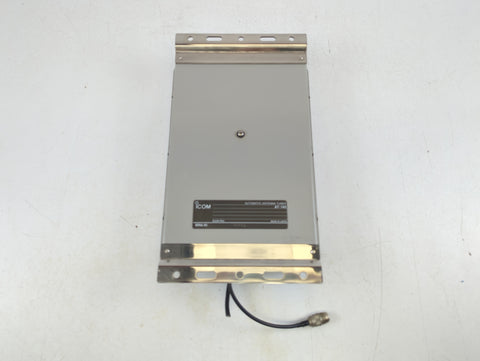

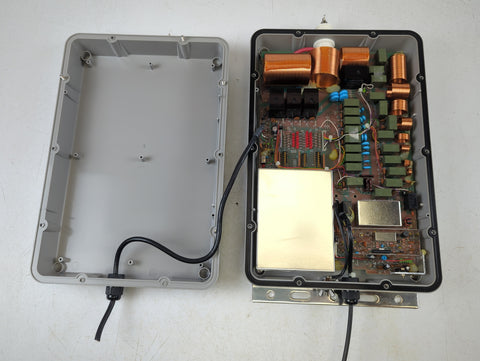

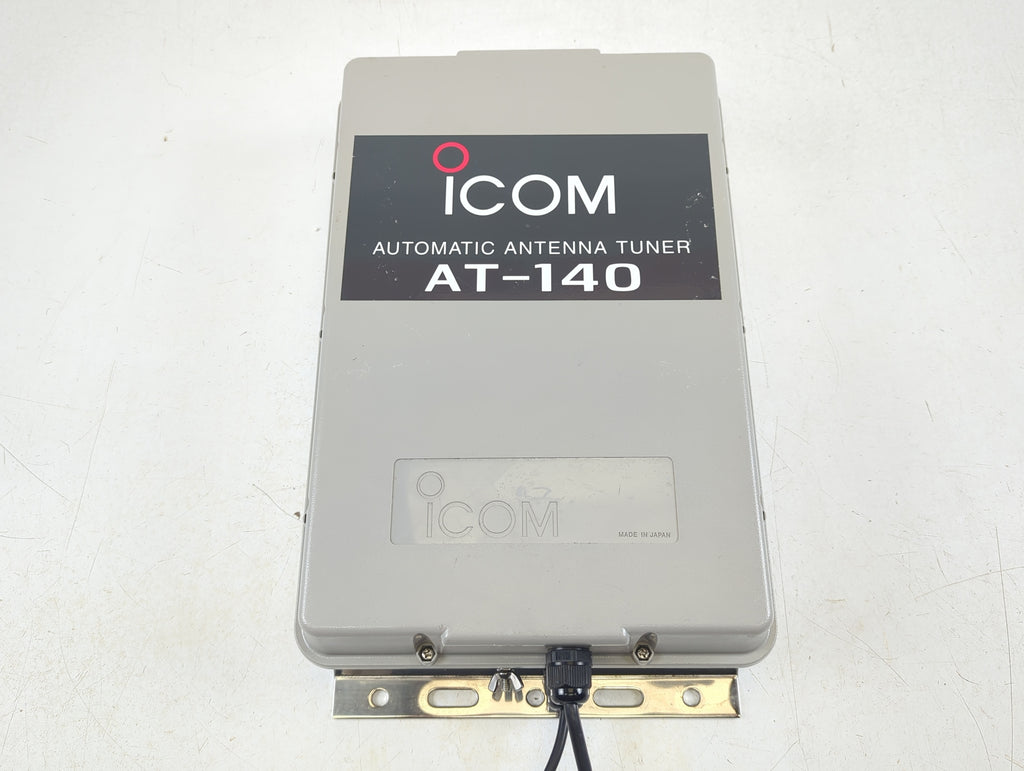

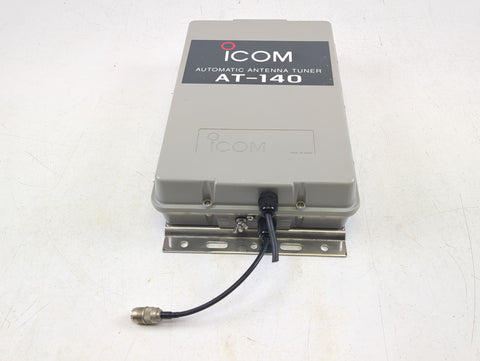

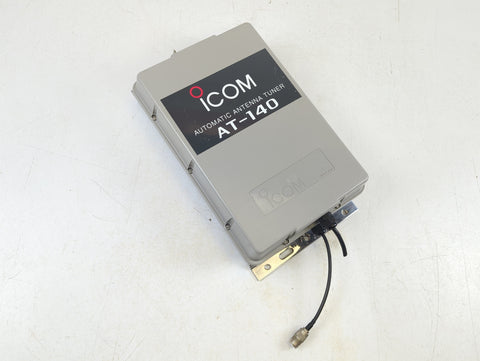

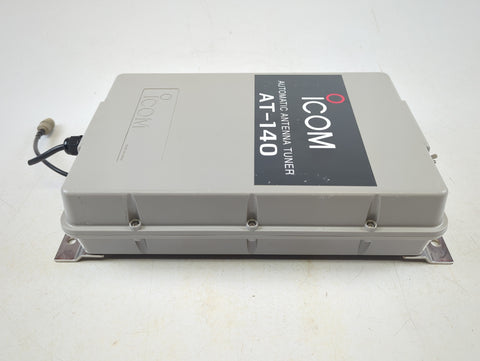

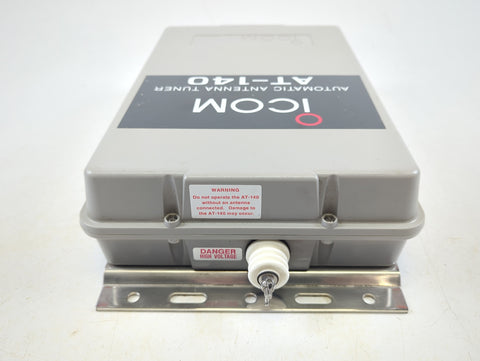

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
