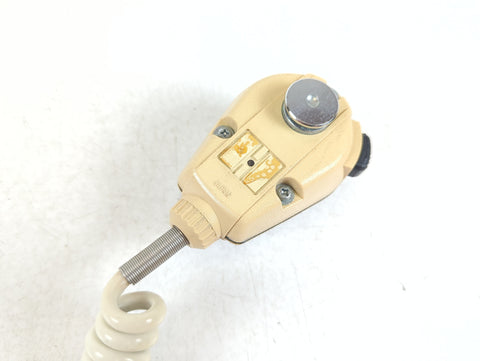

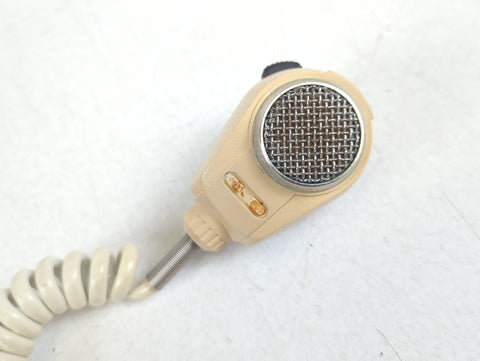

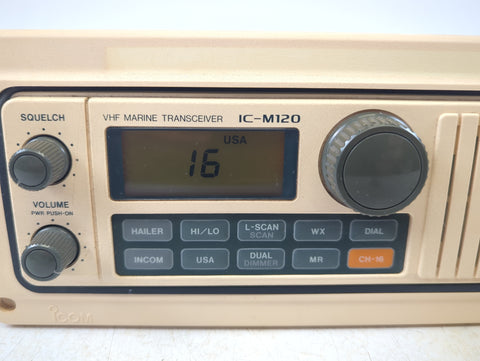

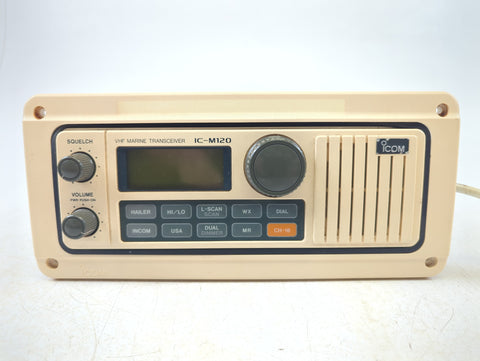

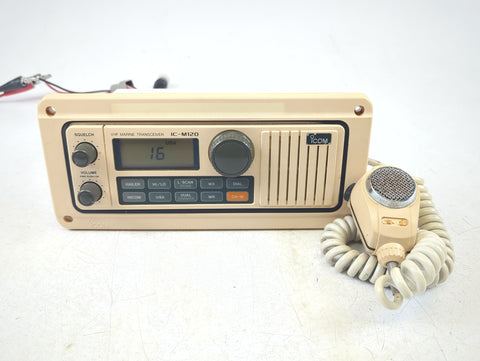

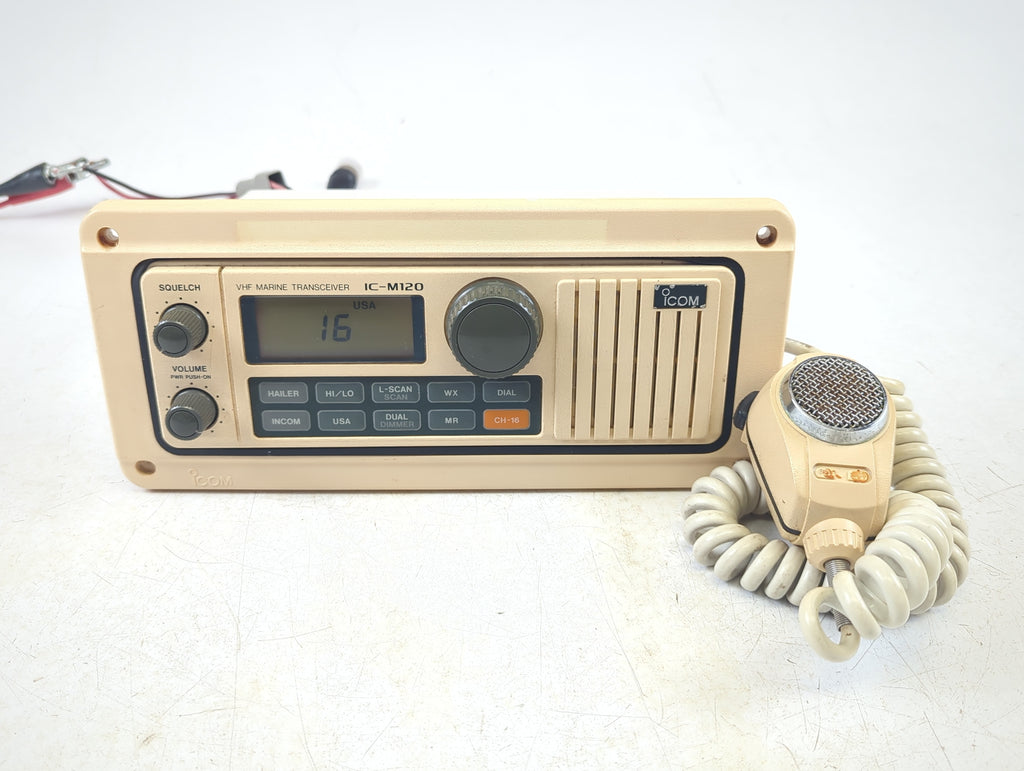

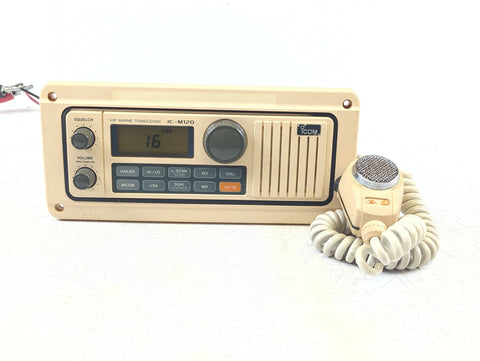

Icom IC-M120 Boat Marine VHF Marine Radio Transceiver with Microphone
The Icom IC-M120 is a robust, legacy marine transceiver designed for reliable ship-to-shore and ship-to-ship communication on standard VHF marine channels.
Features:
Strong weather-resistant, dust-tight design
HAILER and INTERCOM operations available
Large LCD display including S/RF indicator
All marine, 10 weather and 24 memory channels
Variety of scanning functions
Dual watch for monitoring Channel 16 during operation
25W stable output power with a large heatsink
High sensitivity and strength against intermodulation interference
Momentary high transmit output power on U.S.A. Channels 13 and 67
Specifications:
General:
Type of Emission: 16K0G3E
Antenna Impedance: 50 Ω
Usable Temperature Range: ±0.0005%
Frequency Stability: -20°C~ +60°C (-4°F~ +140°F)
Power Supply Voltage: 13.8 V DC, negative ground
Dimensions: 9.0” (W) X 3.1” (H) X 8.2” (D) (228 X 78 X 208 mm)
Weight: 2.1 kg (4.6 lb)
Receiver:
Frequency Range: 156~163 MHz
Sensitivity: 0.3 µV for 12 dB SINAD
Audio Output Power: 5.0 W
Intermediate Frequency: 1st 21.4 MHz, 2nd 455 kHz
Current Drain: 0.2 A (standby condition with no display backlight), 1.2 A (at max. audio with brightest display)
Transmitter:
Frequency Range: 156~157.5 MHz
Output Power: HIGH 25 W, LOW 1 W
Microphone Impedance: 600 Ω
Current Drain: 6.3 A at HIGH output power, 1.7 A at LOW output power
Manufacturer: Icom
Model Number: Radio Transceiver
Part Number: IC-M120

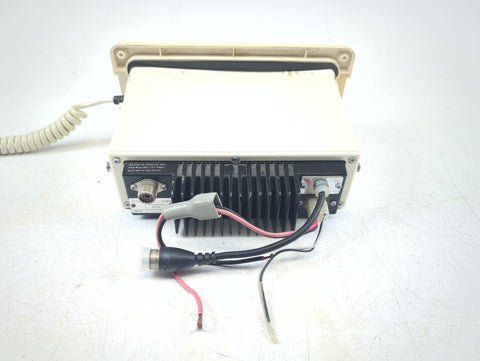

Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
