Icom MA-500TR Boat Marine Class B Dual Channel AIS Transponder
The MA-500TR is a Class B AIS transponder for Non-SOLAS vessels such as pleasure craft, workboats and small vessels. Your vessel's information will automatically be transmitted at fixed intervals or under base station control. The MA-500TR receives dual AIS channels (Ch. 87B and Ch. 88B) simultaneously and receives both Class A and Class B AIS information.
Transmitted Information:
- MMSI code
- Vessel name
- Call sign
- Type of ship
- GPS antenna position
- Ship's position
- SOG (Speed over ground)
- COG (Course over ground)
- UTC date and time
- GPS antenna type
- PA (Position Accuracy)
Specifications:
- General:
  - Operating Frequencies: 161.975 MHz, 162.025 MHz (Ch 87B, 88B, default), 156.025-162.025 MHz
  - Type of Emission: 16K0GXW (GMSK)
  - Antenna Impedance: 50 Ω
  - Usable Temperature Range: –20°C to +60°C (–4°F to +140°F)
  - Power Supply Requirement: 12 VDC (9.6–15.6 V)
  - Current Drain (at 12VDC): TX 1.5A, RX 0.7A
  - Dimensions: 6.5” X 4.33” X 4.84” (165 X 110 X 123 mm)
  - Weight: 1kg (2.2lb)
- Transmitter:
  - Output Power: 2W
  - Modulation: GMSK
  - Conducted Spurious Emission: Less than -36 dBm
- Receiver:
  - Sensitivity (20% Error Rate): -110 dBm
  - Adjacent Channel Selectivity: More than 70 dB
  - Spurious Response: More than 70 dB
  - Intermodulation: More than 65 dB
  - Conducted Spurious Emission: Less than -57 dBm
- Data Interface:
  - Data Input Interfaces:
    - NMEA1, NMEA3: IEC 61162-1:2000 (4,800 bps) or IEC 61162-2 (38,400 bps)
    - NMEA2: IEC 61162-2 (38,400 bps)
    - Sentence format (common to NMEA1–3): RMC, GGA, VTG, GSA, GSV, DTM, GNS, GLL, and GBS
    - Input level (2V applied): Less than 2 mA
  - Data Output Interface:
    - NMEA1, NMEA3: IEC 61162-1:2000 (4,800 bps) or IEC 61162-2 (38,400 bps)
    - NMEA2: IEC 61162-2 (38,400 bps)
    - Sentence format:
      - NMEA1: DSC, RMC, GGA, VTG, GSA, GSV, GBS, DTM, DSE, GNS and GLL
      - NMEA2: VDM, VDO, ALR, ACA, ACS, TXT, RMC, GGA, GNS, GLL, VTG, GSA, GSV, GBS and DTM
      - NMEA3: RMC, GGA, VTG, GSA, GSV, GBS, DTM, GNS, and GLL
      - Output level: 5V, 40mA Max., RS-422 balanced type
    - Rating of Alert Terminal: 24 VDC, 500 mA max.
Manufacturer: Icom
Model Number: AIS Transponder
Part Number: MA-500TR

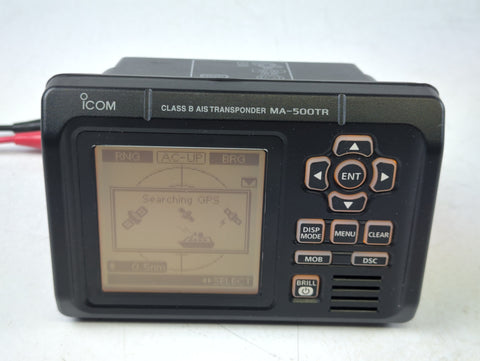

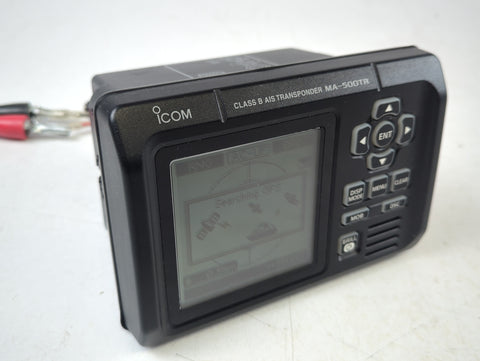

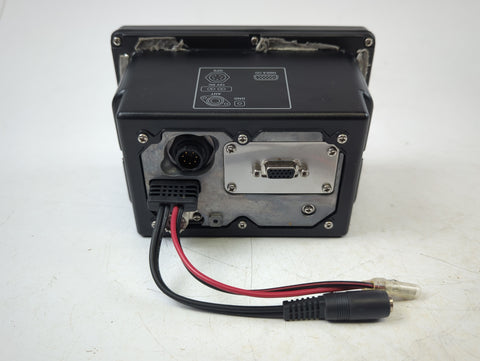

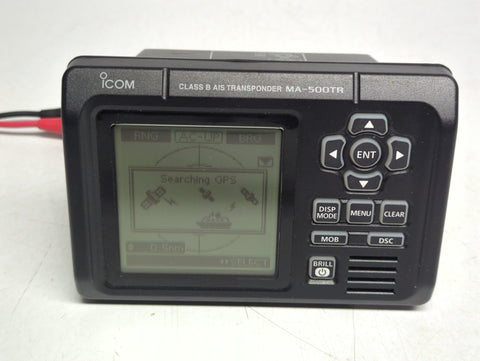

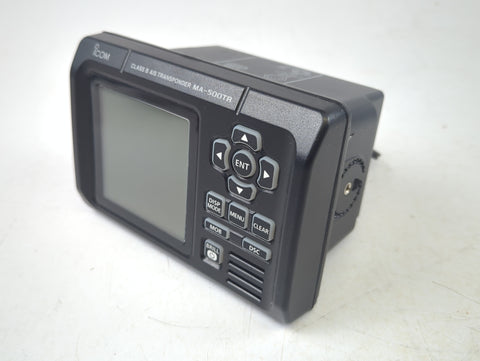

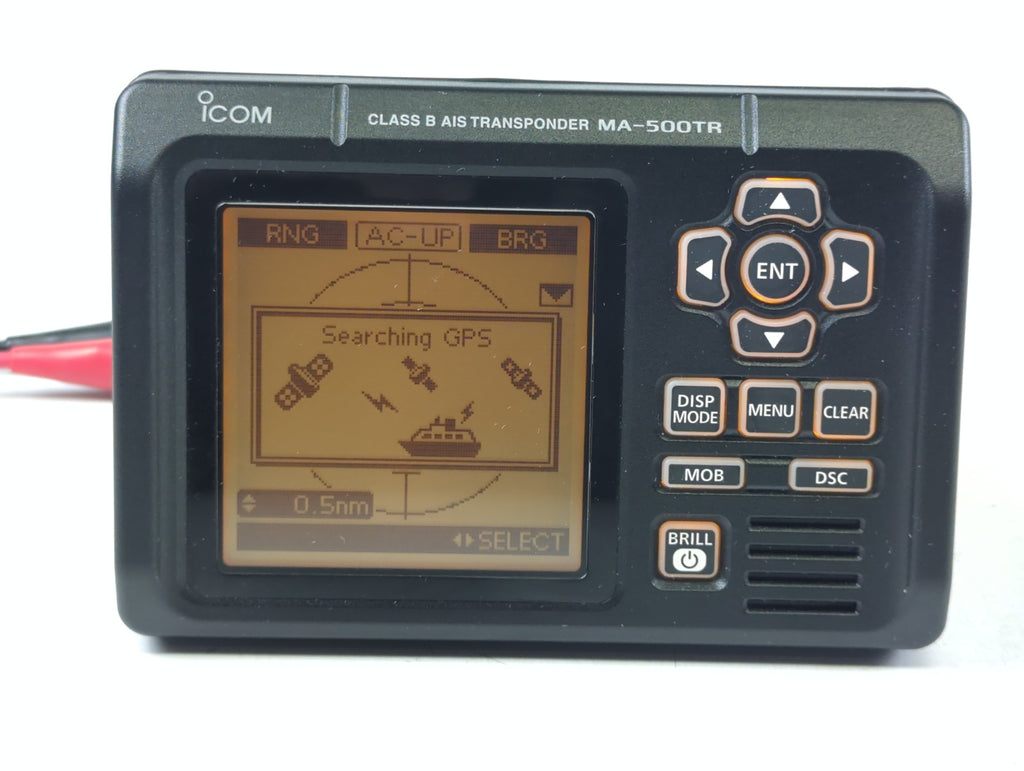

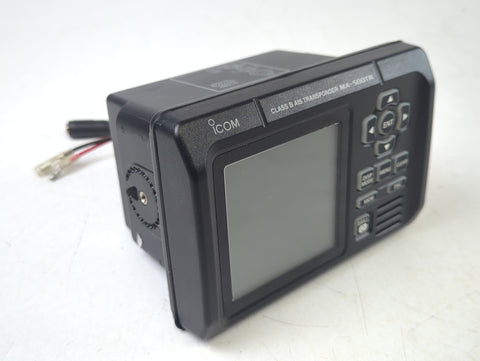

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. MMSI may need to be reset by an authorized dealer. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
