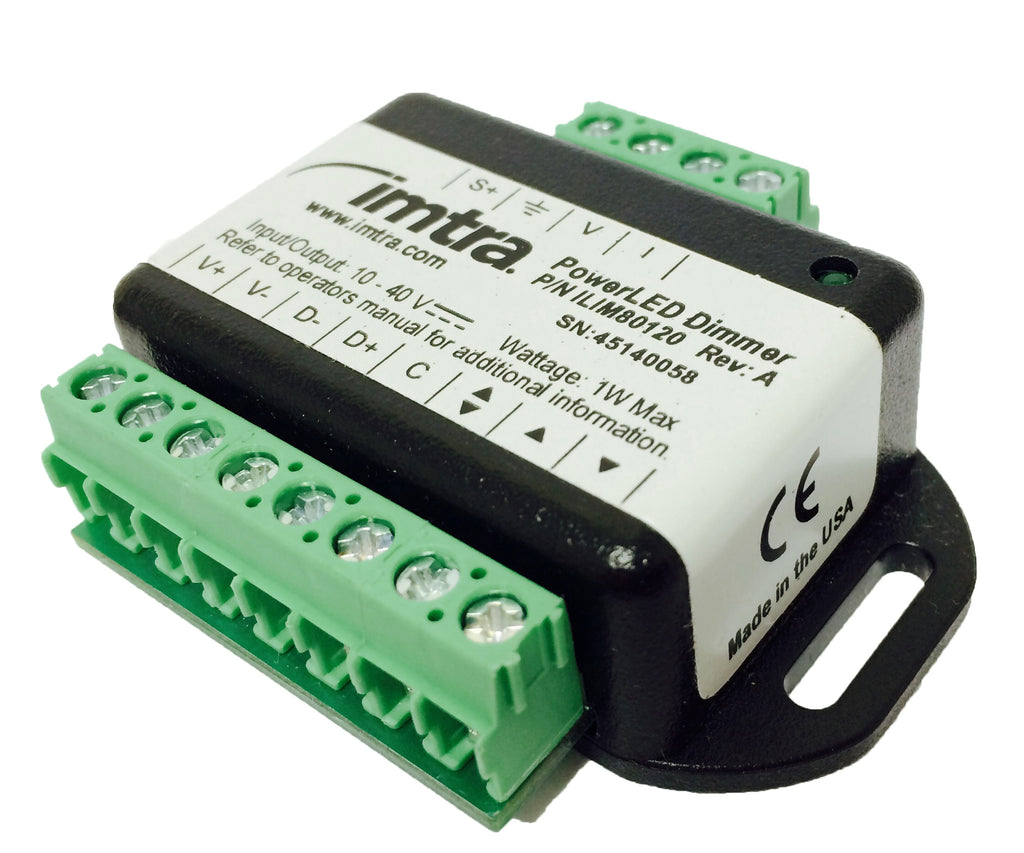

IMTRA ILIM80120 Universal Input Analog / Digital PowerLED 10-40 VDC PWM Dimmer Module
IMTRA ILIM80120 Universal Input Analog / Digital PowerLED 10-40 VDC PWM Dimmer Module
IMTRA ILIM80120 Universal Input Analog / Digital PowerLED 10-40 VDC PWM Dimmer Module

IMTRA ILIM80120 Universal Input Analog / Digital PowerLED 10-40 VDC PWM Dimmer Module

  • Sale
  • $129.95
  • 2 available
  • Universal Input Analog / Digital PowerLED 10-40 VDC PWM Dimmer Module
  • Digital PWM output compatible with all Imtra PowerLEDs (including Captiva)
  • Analog input: 0-10V Sink, 0-10V Sink/Source, 4-20mA, and 10KΩ-100KΩ Potentiometer
  • Space-saving compact design
  • Easy to identify input/output wire terminals
  • Works with Single or Double Throw Momentary Switches
  • Dip Switches for customized functions
  • Housing Finish/Material: Black flame retardant ABS (UL94V-0)
  • Certifications & Compliance: CE
  • Class: Class III
  • Dimmer Compatibility:4/5-wire Imtra PowerLEDs (& Captiva)

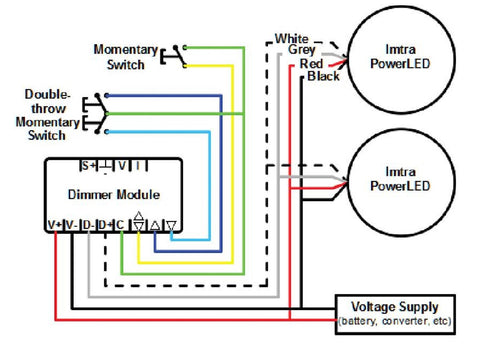

  • Dimmer Control Interface: Single or Double Throw NO Momentary Push-buttons (Multiple, wired in parallel)
  • Dimensions: 0.80" (20mm) H x 2.66" (68mm) W x 2.08" (53mm) Depth
  • Power Consumption: 1W Max
  • Voltage Rating: 10-40 VDC
  • Base Dimensions: 2.66" (68mm) x 2.08" (53mm)
  • Ingress Protection: IP40
  • Load Rating: 30 PowerLED fixtures (different wattages)
  • Mounting Method: Screw-mount
  • For use with: All Imtra's 4-wire (single color) and 5-wire (bi-color) PowerLED Downlights
  • Manufacturer: IMTRA
  • Part Number: ILIM80120
  • Also Known As: ILIM80110
