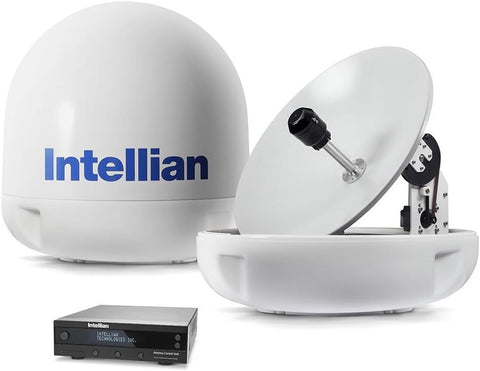

Most Popular Size: 18-inch antenna dish diameter. Light antenna weighs less than 26 pounds.
Wide Range Search (WRS) Algorithm: Competitor methods search for the narrow-bandwidth of the main lobe. However Intellian’s exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
Dynamic Beam Tilting (DBT) Technology: A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main-reflector means less noise and extends the product life.
Fully Automated Digital Video Broadcasting (DVB) Identification: DVB Decoder with CPLD enables high speed identification.
New Type Antenna Control Unit: Easy to change and update satellite information. Easy antenna status check and automatic diagnosis. Easy antenna control using PC interface.
Built-in GPS and NMEA 0183 Interface Port: Includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.
