End Cap: Injection moulded electrical grade ABS/PC plastic
Terminal Cover: Extruded temperature resistant ABS
Diagnostic Indicator: Tri-colour LED – monitoring standby mode, load on, short circuit and temperature
Electrical Protection:
Transient voltage - Filtering – Purpose designed circuit
Short circuit shutdown – auto reset
Thermal - Foldback to 50% of rated load – auto reset
Termination:
Power – 6-32 UNC H/D screw terminal
Auxiliary – Euro terminal block
Master/Slave Selection: Use selectable slide switch next to auxiliary terminal
Conformity: Australian AS/NZS CISPR 11. European EN55011
International CISPR11 and IEC61204-3
Certification: EMC – Australian C Tick mark and European CE mark
Dimension: 120mm L x 80mm W x 40mm H

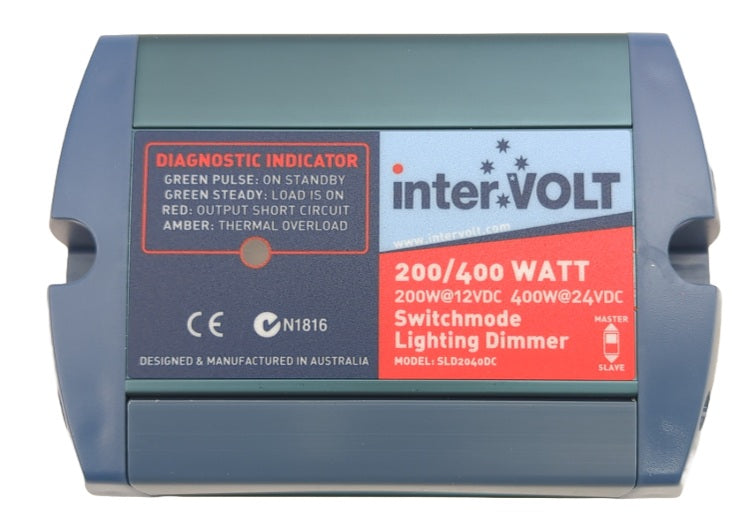

The interVOLT range of SLD electronic DC lighting dimmers provide an excellent solution for the dimming of conventional (lament) lamps as well as compatible LED devices. The dimming of onboard lighting in boats, RVs, caravans and coaches at an affordable price has always been an issue.
The SLD Series overcomes this with a feature packed design, not only presenting great value, but ensuring reliability, longevity and safety.
