Jabsco HotShot HD5 P501J-119N-4A Boat Marine 12V 5GPM 70PSI Washdown Pump Kit

Sale
Regular price $299.95
1 available

Jabsco HotShot HD5 P501J-119N-4A Boat Marine 12V 5GPM 70PSI Washdown Pump Kit
Jabsco pumps are designed to be durable and high performing – capable of providing years of satisfactory service in a variety of marine applications.
Features:
- Heavy Duty, Coated Motor
- High Flow & Pressure
- Integrated Pressure Switch
- Runs Dry Without Damage
- Self-Priming
Specifications:
- General:
  - Design:
    - 5 Chamber Diaphragm
    - Quick Connect Ports
    - TENV Permanent Magnet Motor
    - Noise Dampening Baseplate
    - Thermal Motor Protection (TCO)
  - Operating Environment: Marine
  - Ambient Temp Range: 32ºF - 140ºF (0ºC - 60ºC)
  - IP Rating: IPX6
  - Carton Dimensions: 17.5” X 12” X 5.5" (445 X 305 X 140 mm)
  - Weight: 6.5 lbs (3 kg)
- Materials (*designates wetted path)
  - Upper Housing*: Glass-filled Polypropylene
  - Lower Housing: Cast Aluminum
  - Check Valve Retainer*: Polypropylene
  - Diaphragm*: Santoprene
  - Check Valves*: EPDM
  - Switch Diaphragm*: EPDM
  - Bypass Diaphragm*: N/A
  - PH Seals*: EPDM
  - PH Fasteners: Stainless Steel
  - Baseplate: Nylon with Rubber Feet
  - Motor Casing: Cast Aluminum; Coated Steel
- Hydraulic Performance (at 12.0 VDC):
  - Open Flowrate: 5 GPM open flow (18.9 LPM)
  - Pressure Switch Cut-Off: 70 PSI (4.8 BAR)
  - Max Operating Pressure: 70 PSI (4.8 BAR)
  - Max Inlet Pressure: 30 PSI (2.1 BAR)
  - Internal Bypass: None
  - Fluid Temperature Range: 32ºF - 140ºF (0ºC - 60ºC)
  - Self-Priming Capability: Up to 8 ft (2.4 m) dry prime
  - Run-Dry Capable: Yes
- Electrical Performance (at 12.0 VDC):
  - Nominal Voltage: 12 VDC
  - Voltage Range: 9 VDC – 13.6 VDC
  - Max Current Draw: 16 Amps @ 70 PSI (4.8 BAR)
  - Fuse Size: 20 Amps (not included)
  - Duty Cycle: Intermittent (See heat-rise chart)
  - Leads: 12” (305mm), 14 AWG (2.5mm^2)
  - Wire Connection: Stripped Wire

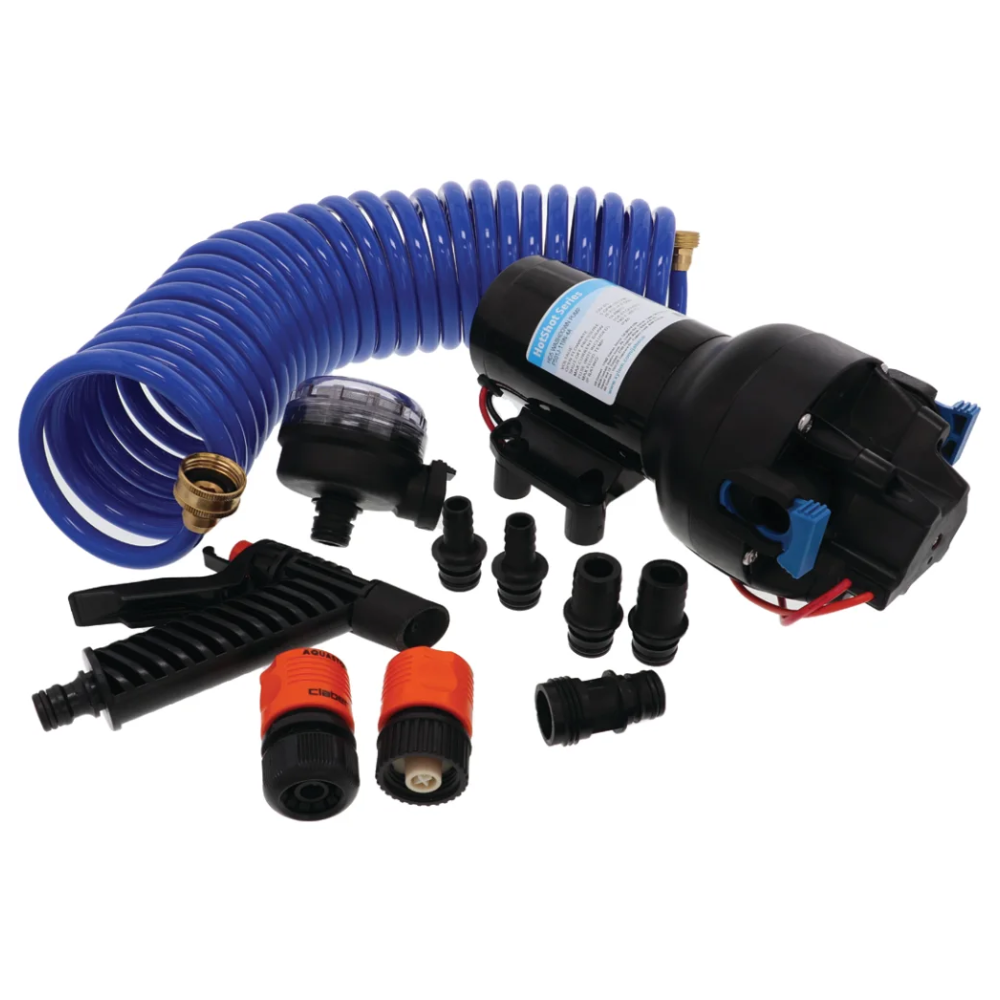

Includes:

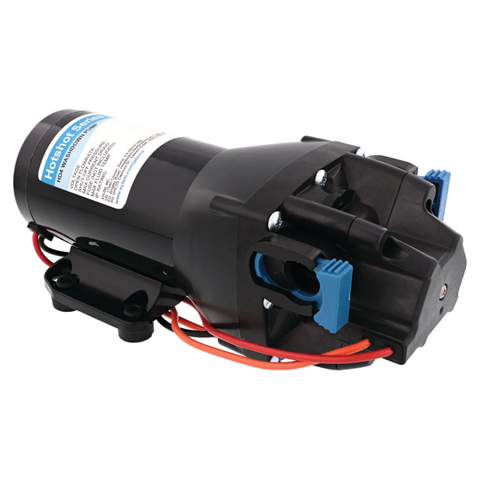

- (1) HOTSHOT HD5 12V 5GPM 70PSI Pump Unit
- (2) 1/2" Straight Hosebarb Port Fitting
- (2) 3/4" Straight Hosebarb Port Fitting
- (1) 3/4" US Garden Hose Thread Port Fitting
- (1) 90° Quick Connect 40-Mesh Strainer
- (1) Quick Connect Trigger Nozzle
- (1) Trigger to 3/4" Female GHT Adapter
- (1) Trigger to Hose Crimp Adapter
- (1) 25’ X 0.35” ID, 3/4" GHT Connections Hosecoil
- (1) IOM (8100475)
Manufacturer: Jabsco
Model Name: HotShot
Model Number: HD5
Part Number: P501J-119N-4A
