JL Audio MHD600/4 MHD 010-03319-00 600 Watt 4 Channel Full-Range Marine Amplifier
JL Audio MHD600/4 MHD 010-03319-00 600 Watt 4 Channel Full-Range Marine Amplifier
JL Audio MHD600/4 MHD 010-03319-00 600 Watt 4 Channel Full-Range Marine Amplifier Wattage: 600 Watts
Channel: 4
Dimension: 1.93" (49 mm) H x 10.74" (273 mm) W x 7.85" (199 mm) D
Operating Voltage:
11-14.5 VDC (12 V Models)
22-29 VDC (24 V Models)
Amplifier Class: Class D
High-fidelity Class-D design delivers superb sonics
Intelligently optimized for all the power - all the time
Full suite of studio-grade signal processing on board
Unique design adjusts operation to avoid thermal events
Exceeds international standards for salt fog and UV exposure
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 4-Channel: 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) 4-Channel: 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) 4-Channel: 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) 4-Channel: 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD) 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD) 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD) 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD) 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs
Monoblock: > 110 dB below rated power 4-Channel: > 110 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs
Monoblock: > 88 dB 4-Channel: > 88.2 dB
Damping Factor @ 4 Ω
Monoblock: > 500/50 Hz
4-Channel: > 300/50 Hz
Damping Factor @ 2 Ω
Monoblock: > 250/50 Hz
4-Channel: > 150/50 Hz
THD+N @ Rated Power: Monoblock/: 4-Channel: < 0.03% @ 4 Ω
Frequency Response (+0, -1dB):
Monoblock: 6 Hz-8 kHz
4-Channel: 6 Hz-30 kHz
Frequency response (+0, -1dB): Main Channels: 5-Channel: 12 Hz-28 kHz
Input voltage range @ RCA inputs: Switchable from 200 mV-2 V RMS (low) to 800 mV-8 V RMS (high)
Fuse rating
4-Channel: 50 A
4-Channel (24 V): 25 A
Recommended fuse type(s): AFS, AGU or MaxiFuse
Min. copper power/Ground wire gauge: 4 AWG wire
Filter mode(s): Channels 1 & 2: 4-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 1 & 2: 4 Channel: 12/24 dB/octave
Filter frequency range: Channels 1 & 2: 4-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 3 & 4: 4-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 3 & 4: 4-Channel: 12/24 dB/octave
Filter frequency range: Channels 3 & 4: 4-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel: Monoblock: Off, Low-Pass or High-Pass
Filter slope(s): Subwoofer Channel: Monoblock: 12/24 dB/octave
Filter frequency range: Subwoofer Channel: Monoblock: 50 Hz-500 Hz
Manufacturer: JL Audio Garmin
Model Number: MHD600/4 MHD
Part Number: 010-03319-00
Also Known As: 0100331900

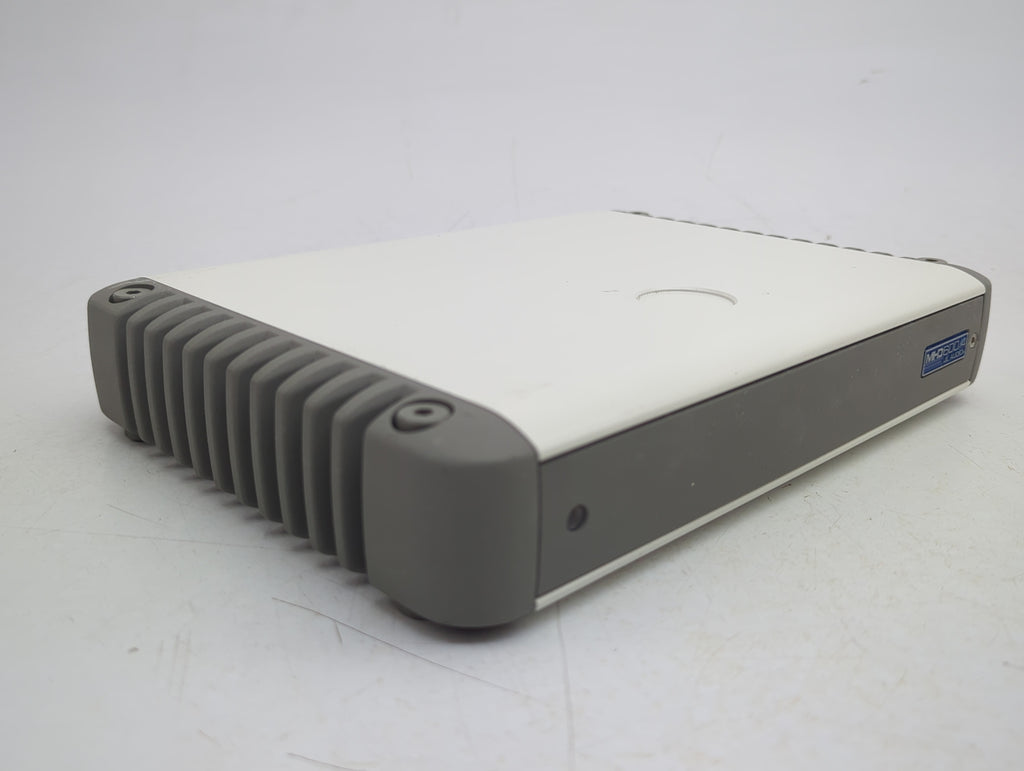

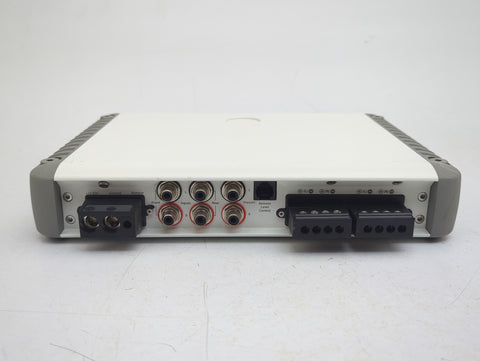

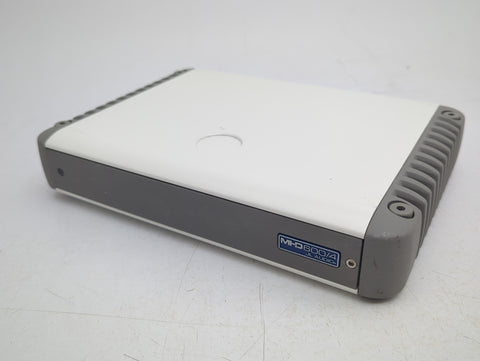

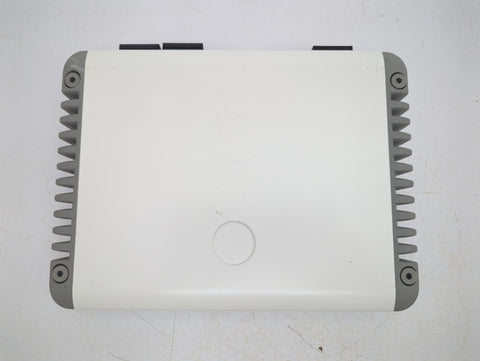

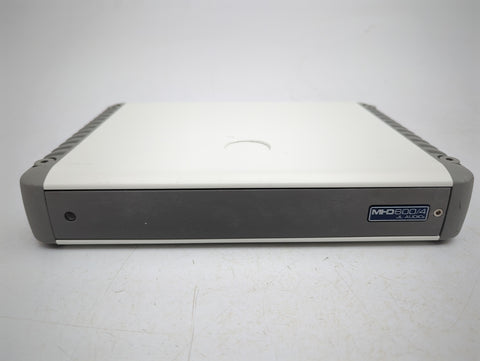

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
