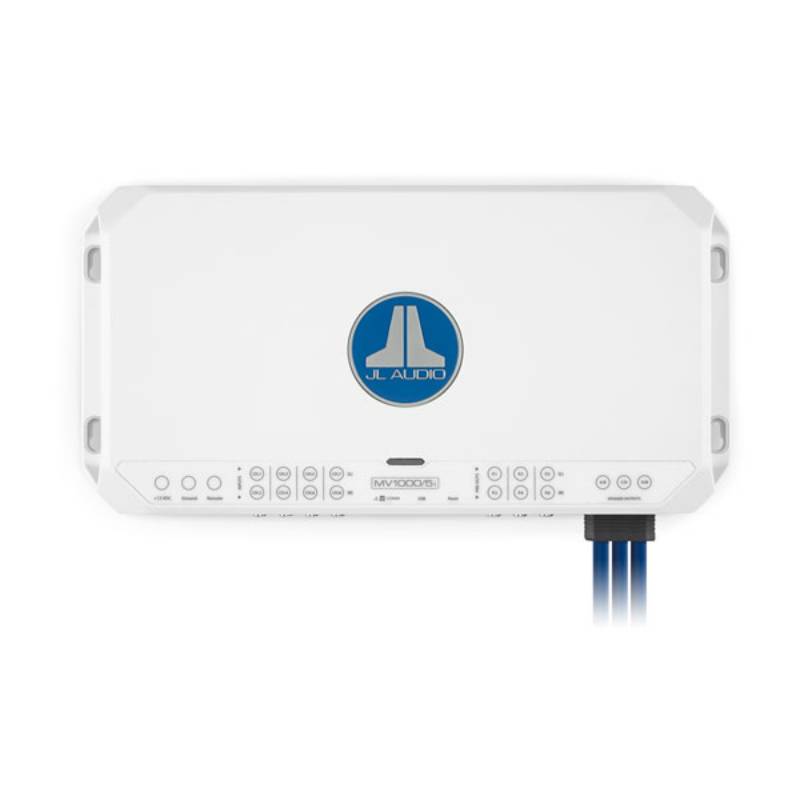

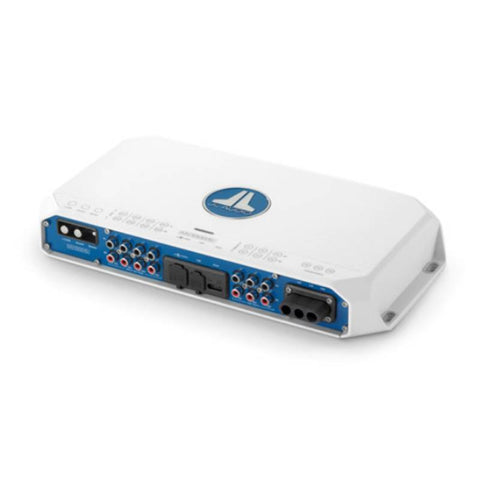

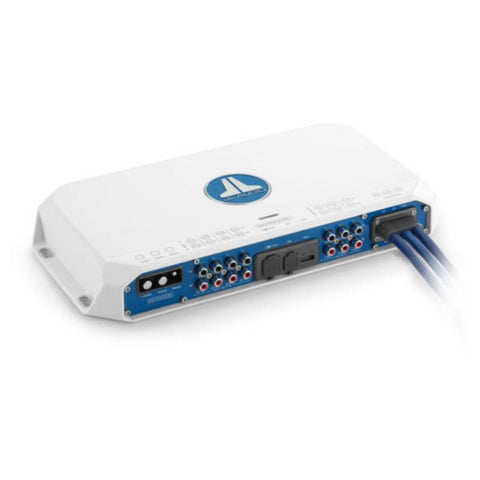

Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.
Features:
Comprehensive onboard tuning for exceptional sound quality
Advanced output design for pristine power and efficiency
Easy setup at your fingertips with free Tün software
Unique design adjusts operation to avoid thermal events
Exceeds international standards for salt fog and UV exposure
Specifications:
General:
Channels: Monoblock/2/4/5/6/8
Physical Dimensions
Height: 2.05" (52mm)
Width: 13.96" (355mm)
Depth: 6.93" (176mm)
Weight: 5.6 lbs (2.54 kg)
Operating Voltage: 10-15 VDC
Water and Dust Rating: IPX2 (when mounted vertically with connections pointed downward)
Audio:
Amplifier Class: Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD): 5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD): 5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD): 5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD): 5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: 99 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: 72 dB
Damping factor @ 4 Ω: > 150/50 Hz
Damping factor @ 2 Ωl: > 50/50 Hz
THD+N @ Rated Power: Main Channels): <1% @ 2 Ω per Channel
