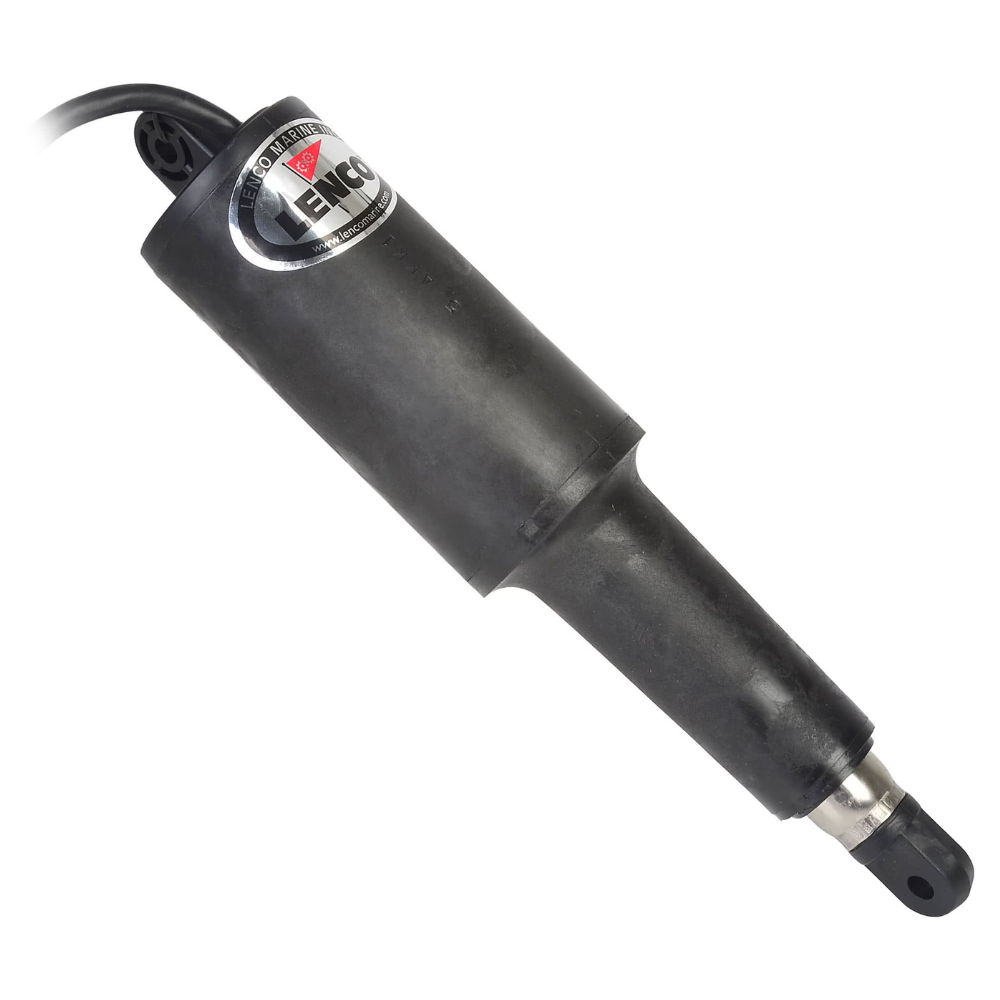

Lenco 101 15054-001 Boat Marine 12V Standard Electric Trim Tab Actuator

Lenco 101 15054-001 Boat Marine 12V Standard Electric Trim Tab Actuator

  • Sale
  • $224.95
  • 1 available
  • Lenco 101 15054-001 Boat Marine 12V Standard Electric Trim Tab Actuator
  • Lenco's fully submersible and maintenance-free,101 Standard Electric Trim Tab Actuator ensures accurate tab positioning and maximum lift force for Standard Trim Tab Kits, Standard Performance Tab Kits, SeaDoo Kits, and Bennett Retrofit Kits.
  • Features:
    • High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
    • Tough, high-torque motor easily transfers 750 lbs (340.18 kg)
    • Buna-N SBR O-ring ensures absolute water-tight seal
    • Corrosion proof, water tight Vandar top cap and mounts stand up to severe loads
    • Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for a longer life
    • Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
    • Stainless steel ram won't flex, even under extreme loads
    • Self-locking ballscrew locks into position and will not drift
    • Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches
    • 6 Foot leads with waterproof plug and play Deutsch connectors
  • Specifications:
    • Top Hole: 5/16"
    • End Hole: 5/16"
    • Power: 12V DC
    • Stroke: 2-1/4" (5.72 cm)
    • Length Overall: 12-1/8" (30.80 cm)
    • Length Pin to Pin: 11-1/2" (29.21 cm)
    • Diameter (Upper Housing): 2-1/2" (6.35 cm)
  • For use with: HD, XD, High Performance and Super Strong tabs
  • Manufacturer: Lenco
  • Model Number: 101
  • Part Number: 15054-001
