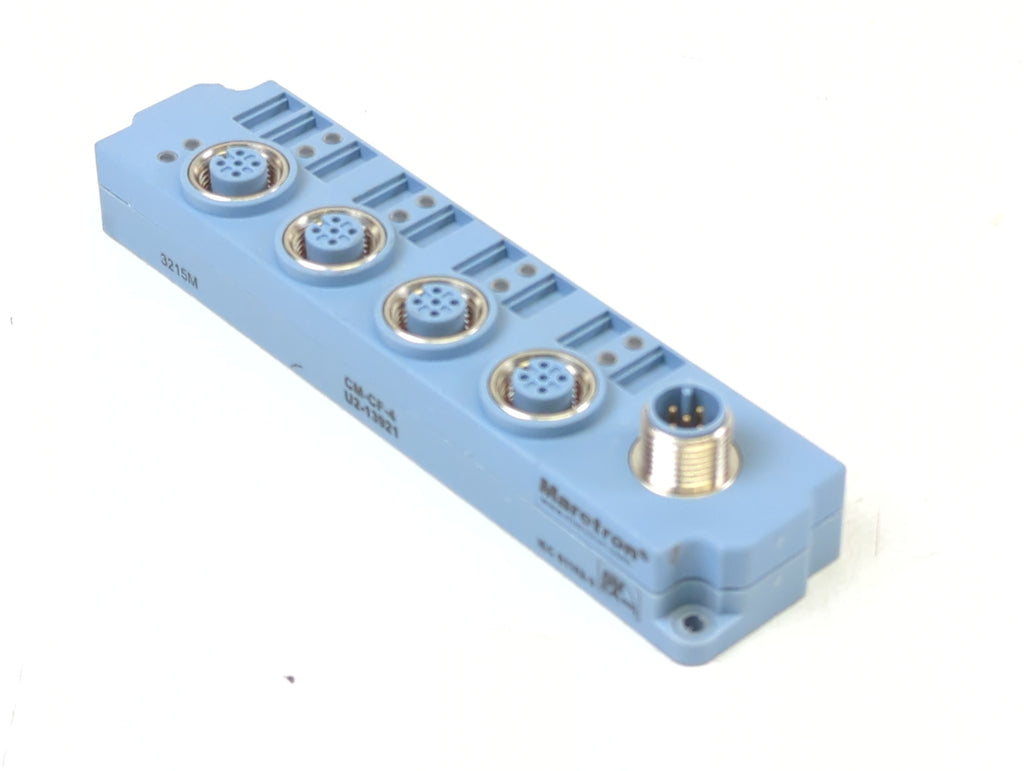

Maretron CM-CF-4 Micro-Mid Male Homerun / Micro-Mid Female Drop Multiport Box

Maretron CM-CF-4 Micro-Mid Male Homerun / Micro-Mid Female Drop Multiport Box
This multiport box allows several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. It connects back to the trunk through a double-ended cordset and Tee.
Specifications:
- Mechanical:
  - Color: Blue-Gray
  - Housing Material: Nylon
  - Receptacle Material: Brass
  - Receptacle Plating: Nickel
  - Contact Carrier Material: Nylon
  - Contact Carrier Color: Black
  - Contact Material: Brass
  - Contact Plating: Gold
- Electrical:
  - Operating Voltage: 250V
  - Operating Current: 4A
- Environmental:
  - Protection Class: IP67
  - Operating Temperature: -30°C to 80°C (-22°F to 176°F)
- Approvals:
  - NMEA: NMEA 2000 Approved
  - IEC: IEC 61162-3
Manufacturer: Maretron
Model Number: Multiport Box
Part Number: CM-CF-4
Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
