  • Sale
  • $249.95
  • 1 available
  • Maretron SSC200 M0000022 Boat Marine Solid State Rate/Gyro Compass
  • Maretron’s SSC200 is a solid state, rate gyro electronic compass that provides better than 1° heading accuracy through ±45° of roll and pitch angle, and better than 1° roll and pitch accuracy in static conditions. Each SSC200 is factory calibrated for maximum accuracy.
  • It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined rate gyro is used by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot applications.
  • Maretron’s SSC200 is certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000 network and/or NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays – including Maretron’s DSM150 or DSM250 graphical display.
  • Specifications:
    • General:
      • Static Heading Accuracy: <1° RMS
      • Heading Display Resolution: 0.1°
      • Settling Time: 1 Second
      • Heading Update Rate: 10 per Second
      • Heading Deviation: Yes
      • Alignment Calibration: Yes
      • Pitch and Roll Range: ±80°
      • Pitch and Roll Accuracy: <1°
      • Pitch and Roll Display Resolution: 0.1°
      • Pitch and Roll Update Rate: 1 per Second
      • Pitch and Roll to Boat Alignment: Yes
      • Rate of Turn Range: 0° - 90°/ Second
      • Rate of Turn Accuracy: ±1° per Second
      • Rate of Turn Update Rate: 10 per Second
      • NMEA 0183 Standard: Compatible
    • Electrical:
      • Operating Voltage: 9 to 16 Volts
      • Power Consumption: < 150mA
      • Load Equivalence Number (LEN): 3
    • Mechanical:
      • Dimensions: 4.46” X 3.23 X 2.14” (113mm X 82mm X 54mm)
      • Weight: 7 Oz. (198 g)
      • Mounting: Deck or Bulkhead
    • Environmental:
      • IEC 60945 Classification: Exposed
      • Degree of Protection: IP67
      • Operating Temperature: -25°C to 55°C
      • Storage Temperature: -40°C to 70°C
      • Relative Humidity: 93%RH @40° per IEC60945-8.2
      • Vibration: 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2  per IEC 60945-8.7
      • Rain and Spray: 12.5mm Nozzle @ 100liters/min from 3m for 30min per IEC 60945-8.8
      • Solar Radiation: Ultraviolet B, A, Visible, and Infrared per IEC 60945-8.10
      • Corrosion (Salt Mist): 4 times 7days @ 40°C, 95%RH after 2 hour Salt Spray Per IEC 60945-8.12
      • Electromagnetic Immunity: Conducted, Radiated, Supply, and ESD per IEC 60945-10
      • Safety Precautions: Dangerous Voltage, Electromagnetic Radio Frequency per IEC 60945-12
    • Certifications:
      • NMEA 2000 Standard: Level A
      • Maritime Navigation and Radio Communication Equipment & Systems: IEC 61162-3, IEC 60945
      • FCC and CE Mark: Electromagnetic Compatibility
  • Manufacturer: Maretron
  • Model Number: SSC200
  • Part Number: M0000022

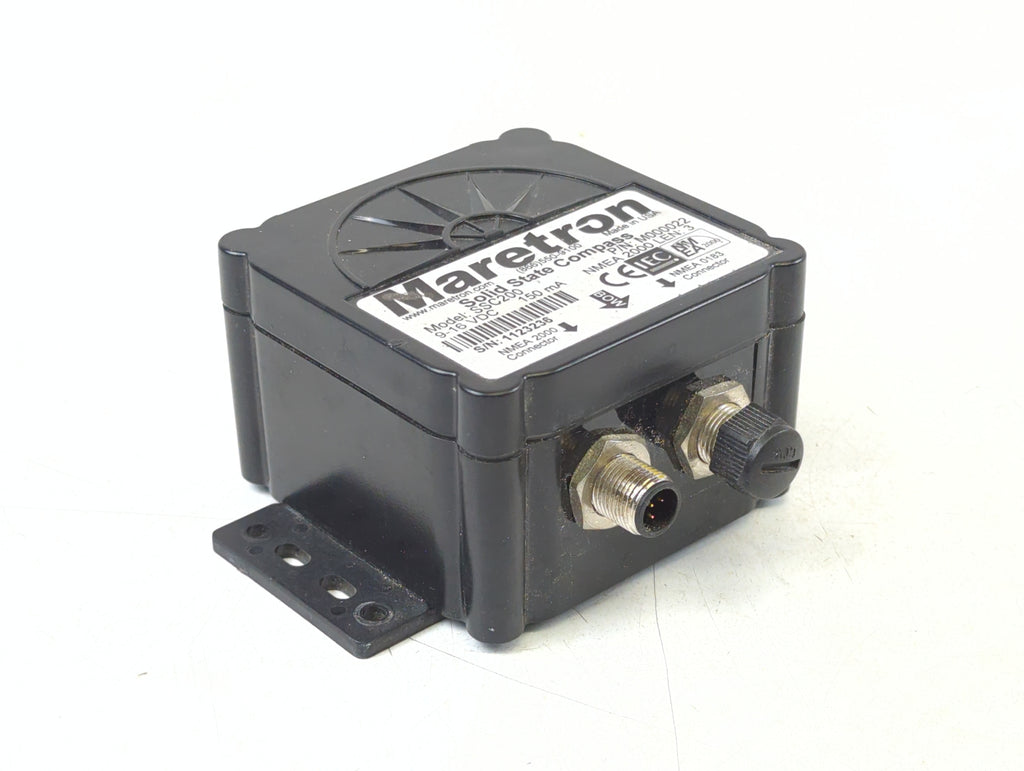

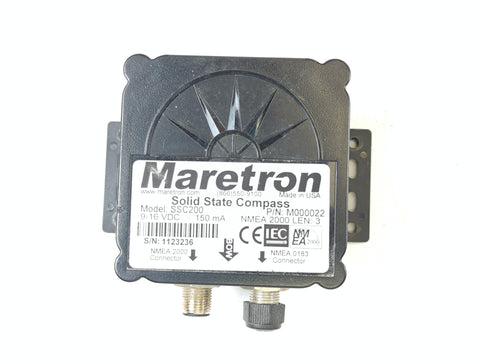

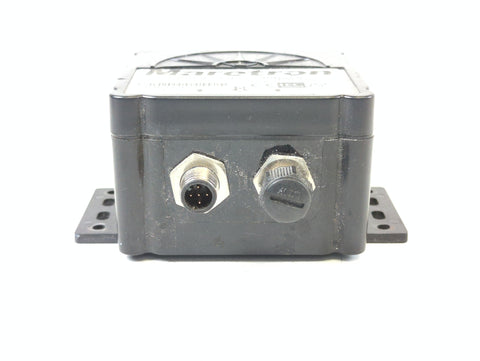

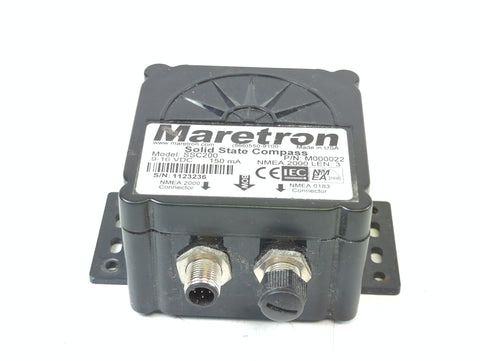

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
