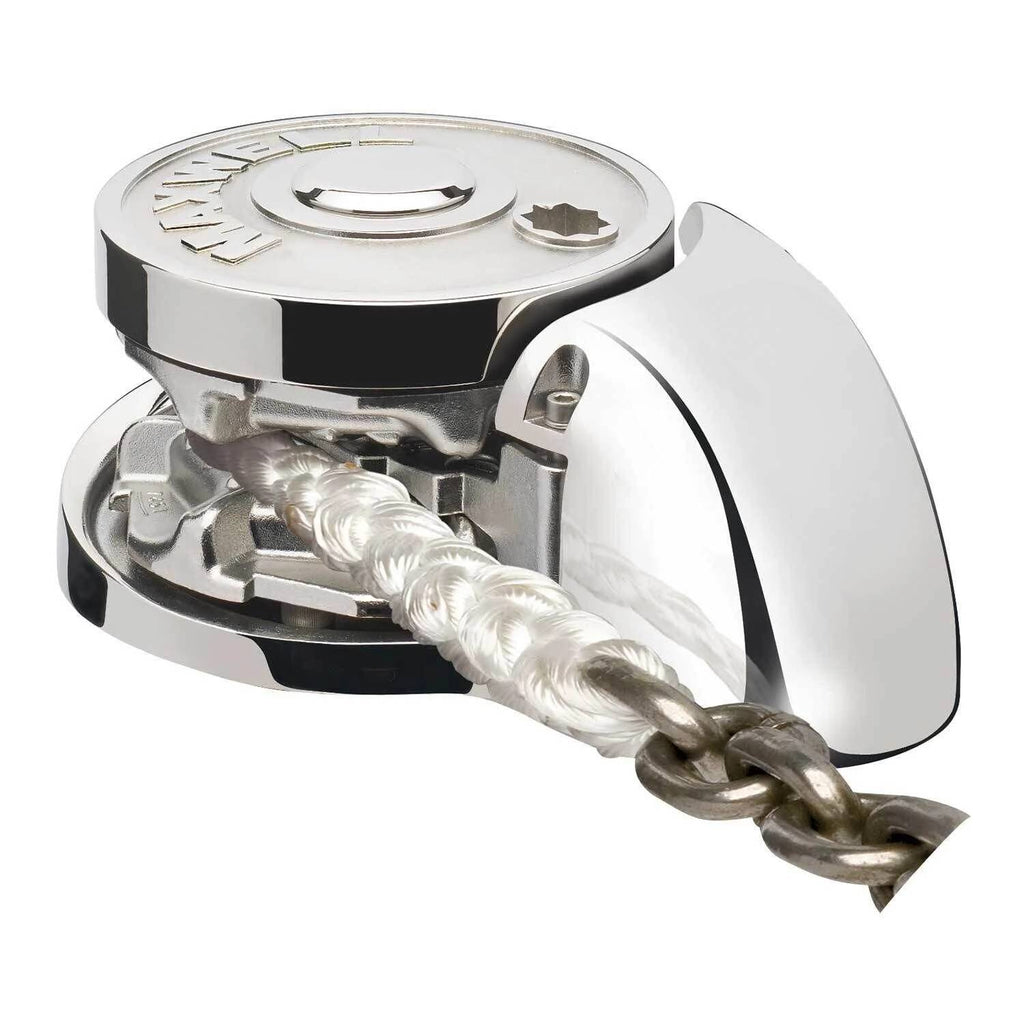

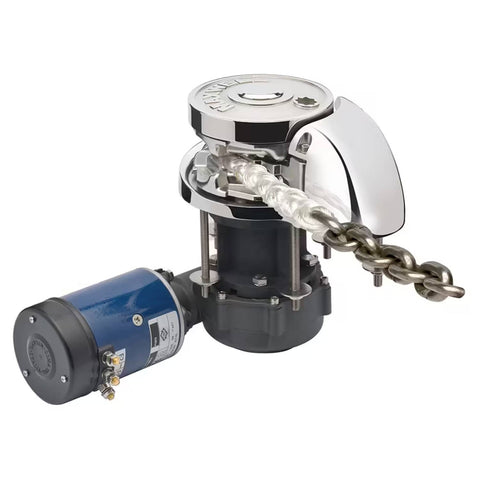

The RC12-10 automatic rope/chain windlass is built to effortlessly retrieve and deploy a 3/8 in. short link chain and 5/8" to 3/4 in. 8-Plait rope using Maxwell’s patented Wave Design chain wheel.
The RC12 is a highly versatile windlass offering multiple configurations (anti-clockwise, capstan, low profile, extended deck clearance, etc.) and is packed with patented features showcasing the very best of Maxwell engineering. The RC12 windlass range is suitable for boats ranging from 10m (30ft) to 20m (65ft) and has been designed and engineered to expertly balance aesthetics with rugged dependability.
Specifications:
EDC: Extra Deck Clearance
Maximum Pull: 2500 lbs. (1134 kg)
Static Hold: 4840 lbs. (2200 kg)
Chain Size: 3/8 in. (10/11 mm)
Rope Size (Nylon): 5/8" – 3/4" (16 mm – 20 mm)
Chain Speed (at normal working load): 79 ft/min (24 m/min)
Rope Speed (at normal working load): 65 ft/min (20 m/min)
Power Supply (DC): 12 VDC
Motor (Watt): 1200 W
Net Weight: lbs (32 kg)
Hydraulic Pressure: 2000 PSI (138 Bar)
Hydraulic Flow: 11 USgal/min (40 l/min)
Net Weight (Hydraulic): 71 lbs (32 kg)
Manufacturer: Maxwell, Vetus
Model Number: RC12-10 12V EDC
Part Number: P104571
Also Known As: RC12/10, RC12/1012V, RC12/10 12V
Condition: New! In Stock, Ready to Ship! This open box item is in excellent new and complete condition.
