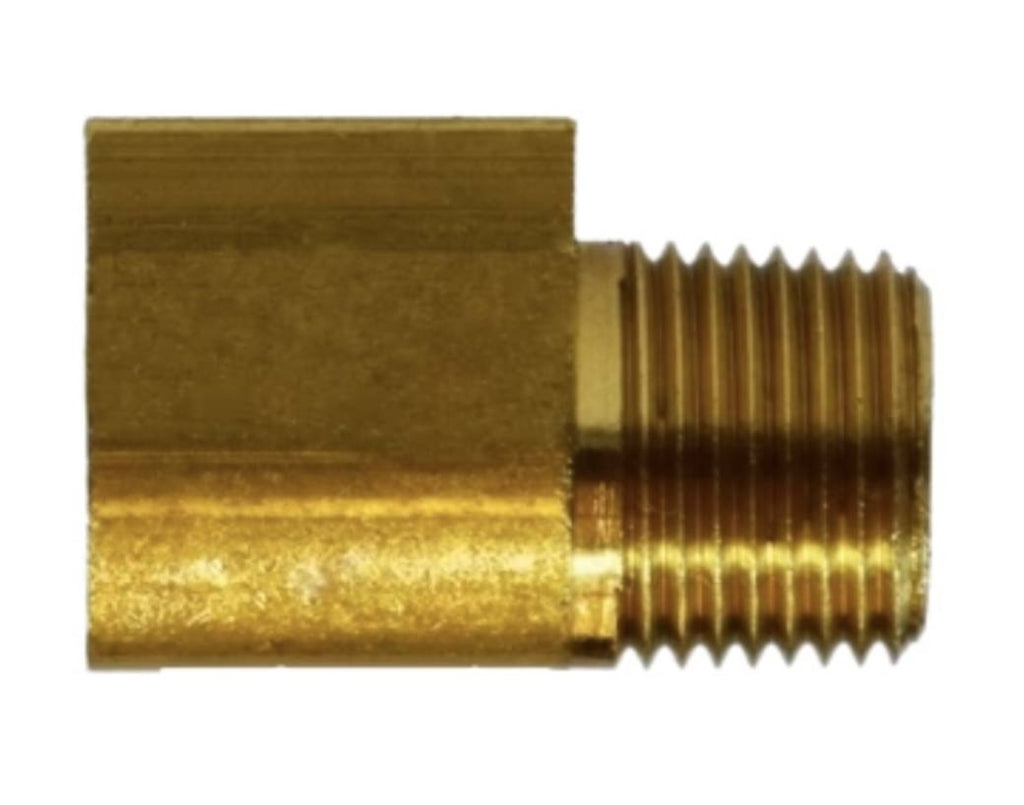

Brass 1/8" Female Inverted Flare X 1/8" Male NPTF 90° Male Elbow Fitting
- Female Inverted Flare x Male NPTF: 1/8" x 1/8"
- Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
- Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends.
- Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
- SAE# 040110
- Vibration: Excellent resistance.
- Applications: Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas.
- Used With: Copper, brass, aluminum and steel hydraulic tubing that can be flared.
- Manufacturer: Midland Metal
- Model Number: Elbow Fitting
- Part Number: 12-057 12057
- Also Known As:
- 04349-0202, 122220, 149-2A, 1492A, 2400X2, 249IF-2-2, 400-22, 402x2, 49I-2A, 49IF-22, IF49-2-2, S249IF-2-2
