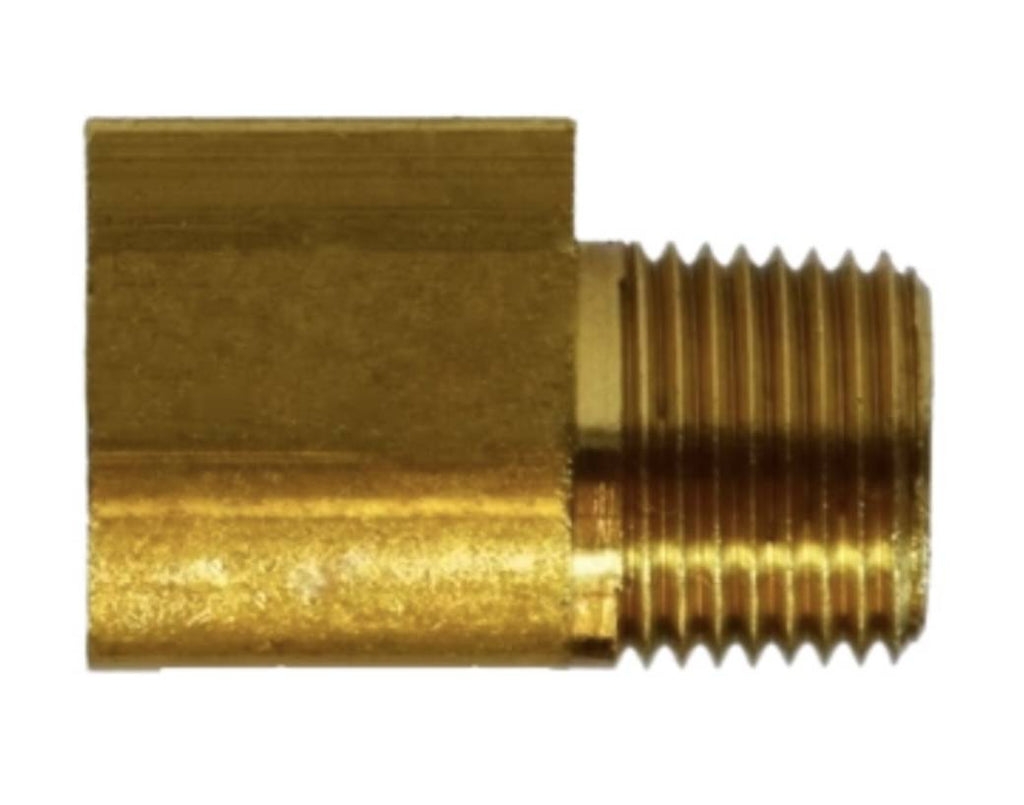

Midland Metal 12-063 12063 Brass 3/8" Female Inverted Flare X 1/8" MIP 90° Male Elbow Fitting

  • Sale
  • Regular price $9.95
  • 1 available


  • Brass 3/8" Female Inverted Flare X 1/8" Male NPTF 90° Male Elbow Fitting
  • Female Inverted Flare x Male NPTF: 3/8" x 1/8"
  • Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
  • Very low cost and reusable. Seats and threads are internal and protected. Compact, excellent vibration life. Short nut affords very close tube bends.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
  • SAE# 040110
  • Vibration: Excellent resistance.
  • Applications: Hydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas.
  • Used With: Copper, brass, aluminum and steel hydraulic tubing that can be flared.
  • Manufacturer: Midland Metal
  • Model Number: Elbow Fitting
  • Part Number: 12-063 12063
  • Also Known As:
    • 04349-0602, 122620, 149-6A, 1496A, 2432X6, 249IF-6-2, 400-62, 402X6X2, 49I-6A, 49IF-62, 6962, IF49-6-2, S249IF-6-2
