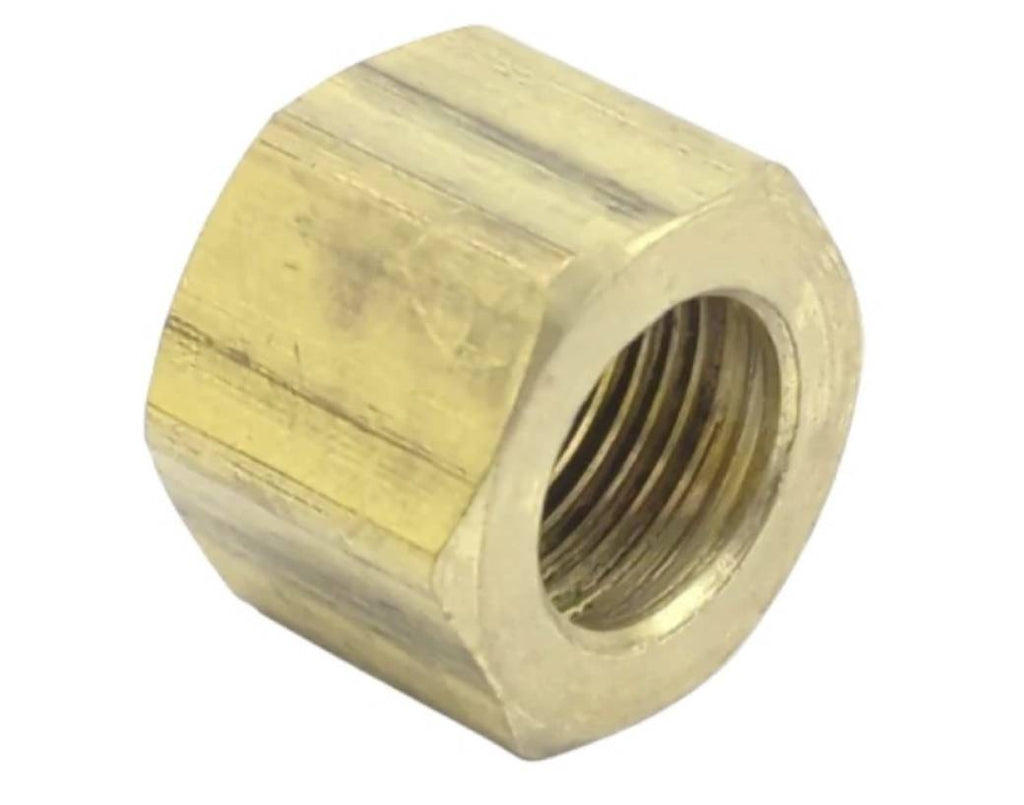

- Marine 1/8" X 5/16-24 Brass Fitting Compression Nut
- Thread: 5/16-24
- Size: 1/8"

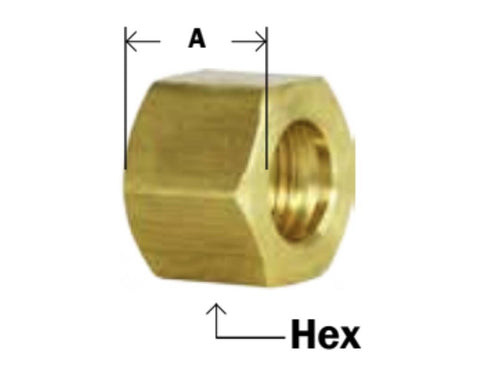

- Width: 0.38"
- Hex: 0.37"
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Nut
- Part Number: 18-033, 18033
- Also Known As:
- 00061-02, 11012, 161200, 261-2, 261X2, 50915K121, 61-2, 612, 61A-2, 61C-2, 61x2, 61X2-CT, 861-2, 8612, C61-2, S61-2
