Midland Metal 18-034 18034 Marine 3/16” X 3/8-24 Brass Fitting Compression Nut
Sale
Regular price
$6.95

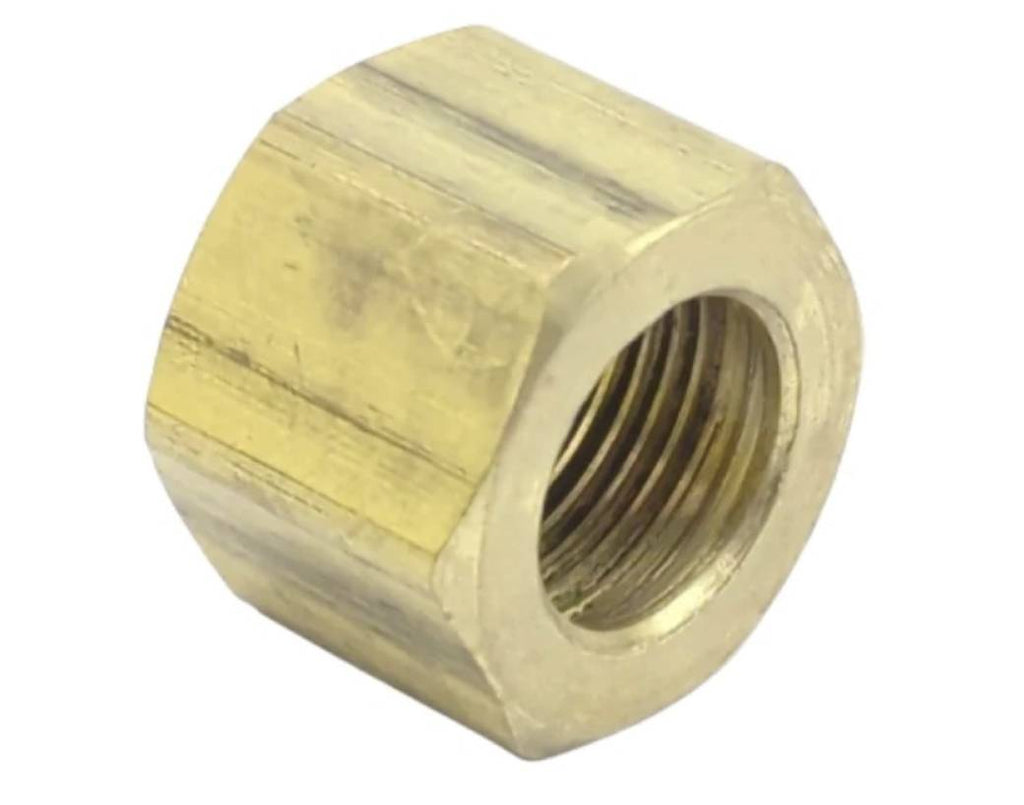

Marine 3/16” X 3/8-24 Brass Fitting Compression Nut
Thread: 3/8-24
Size: 3/16”

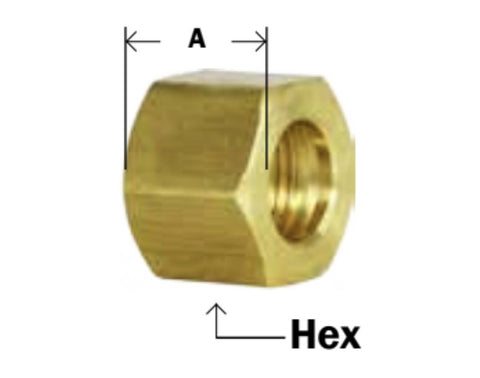

Width: 0.41
Hex: 0.43
Material: Brass
Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
Meets specifications and standards of ASA, ASME and SAE.
