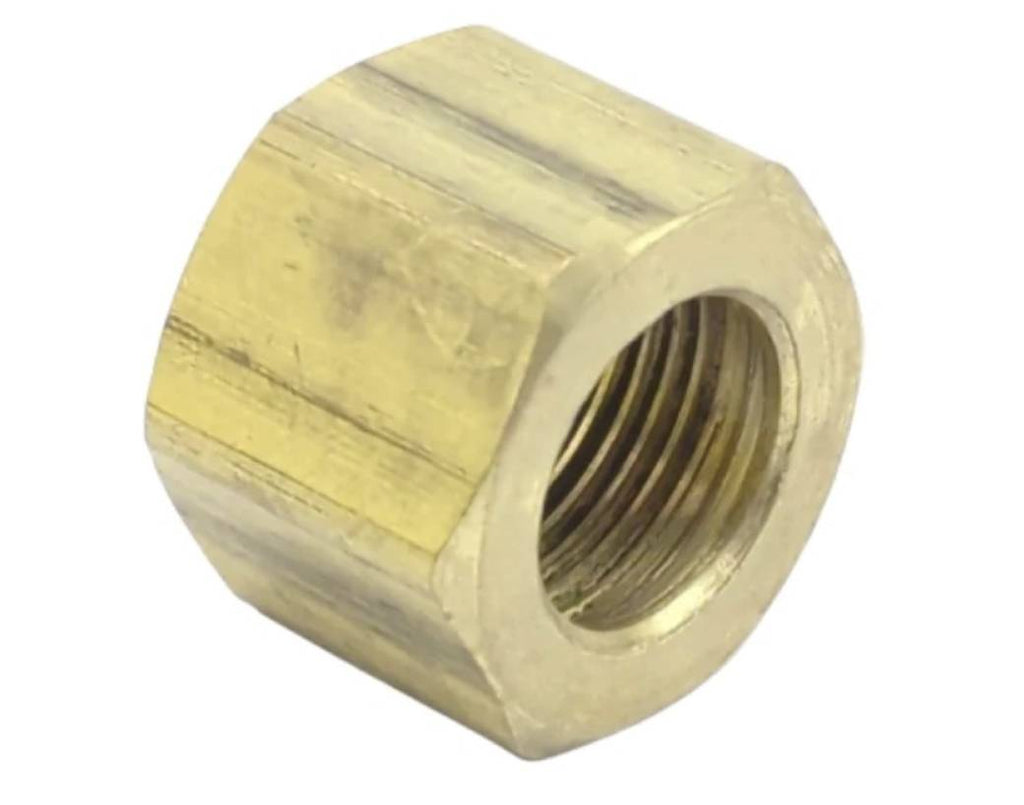

- Marine 1/4” X 7/16-24 Brass Fitting Compression Nut
- Thread: 7/16-24
- Size: 1/4”

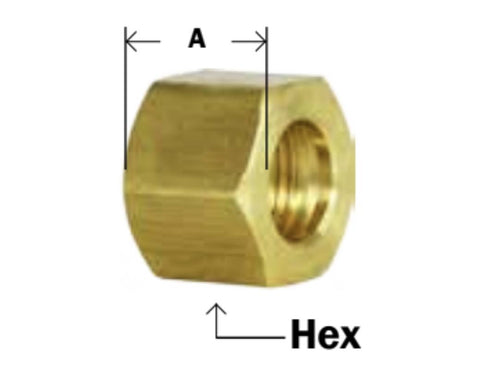

- Width: 0.44
- Hex: 0.50
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Nut
- Part Number: 18-035, 18035
- Also Known As:
- 00061-04, 261-4, 2614, 261X4, 50915K123, 61-4, 614, 61A-4, 61C-4, 61x4, 61X4-CT, C61-4, S61-4
