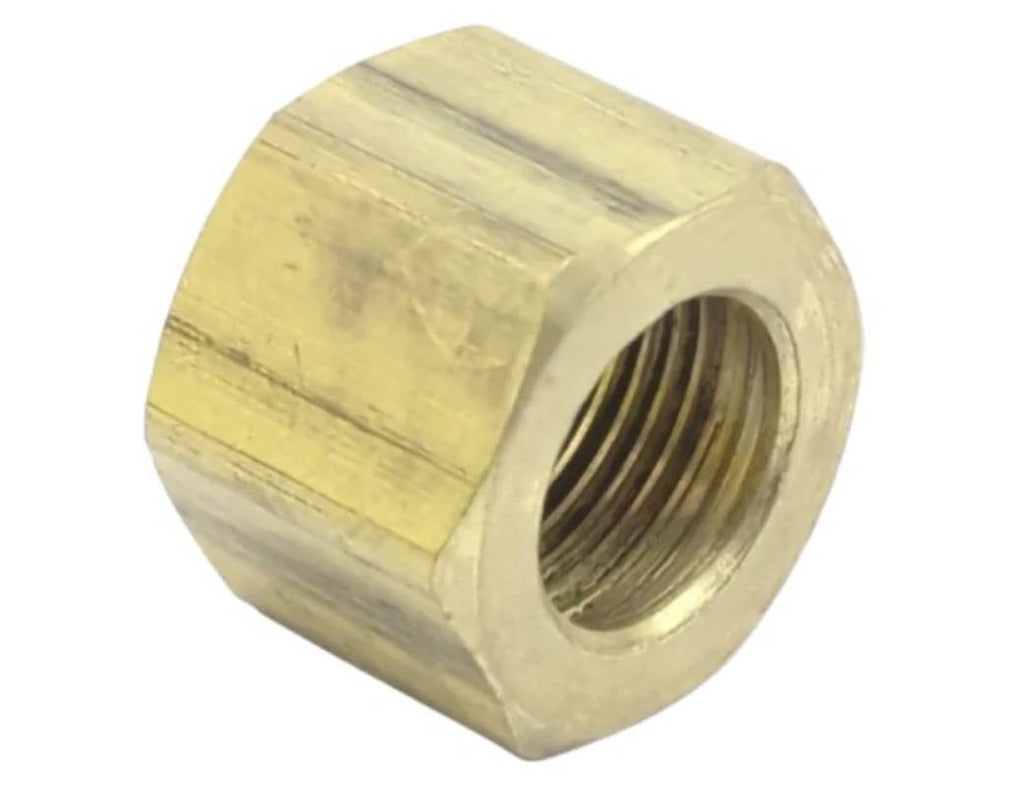

- Marine 3/8” X 9/16-24 Brass Fitting Compression Nut
- Thread: 9/16-24
- Size: 3/8”

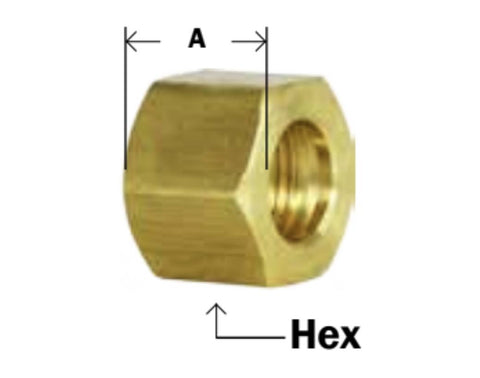

- Width: 0.47
- Hex: 0.62
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Nut
- Part Number: 18-037, 18037
- Also Known As:
- 00061-06, 261-6, 2616, 261X6, 50915K125, 61-6, 616, 61A-6, 61C-6, 61x6, 61X6-CT, C61-6, P-61-6
