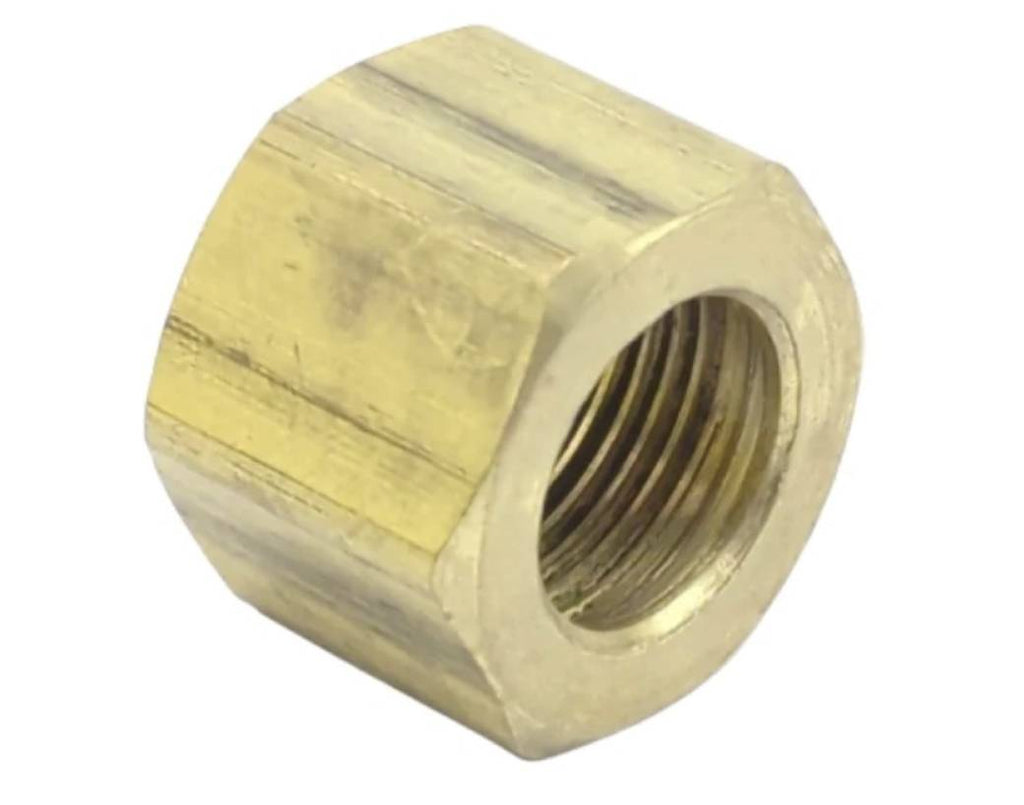

- Marine 1/2” X 11/16"-20 Brass Fitting Compression Nut
- Thread: 11/16"-20
- Size: 1/2”

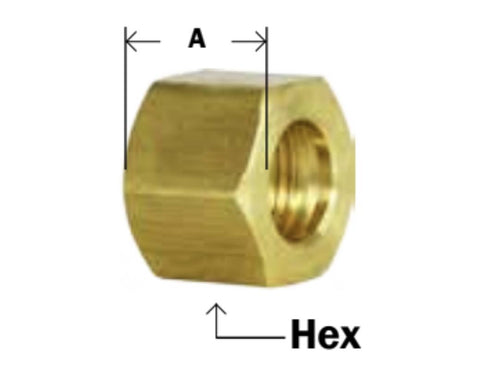

- Width: 0.62
- Hex: 0.81
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Nut
- Part Number: 18-039, 18039
- Also Known As:
- 00061-08, 261-8, 261X8, 50915K126, 61-8, 618, 61A-8, 61AH-8, 61C-8, 61X8, 61X8-CT, C61-8
