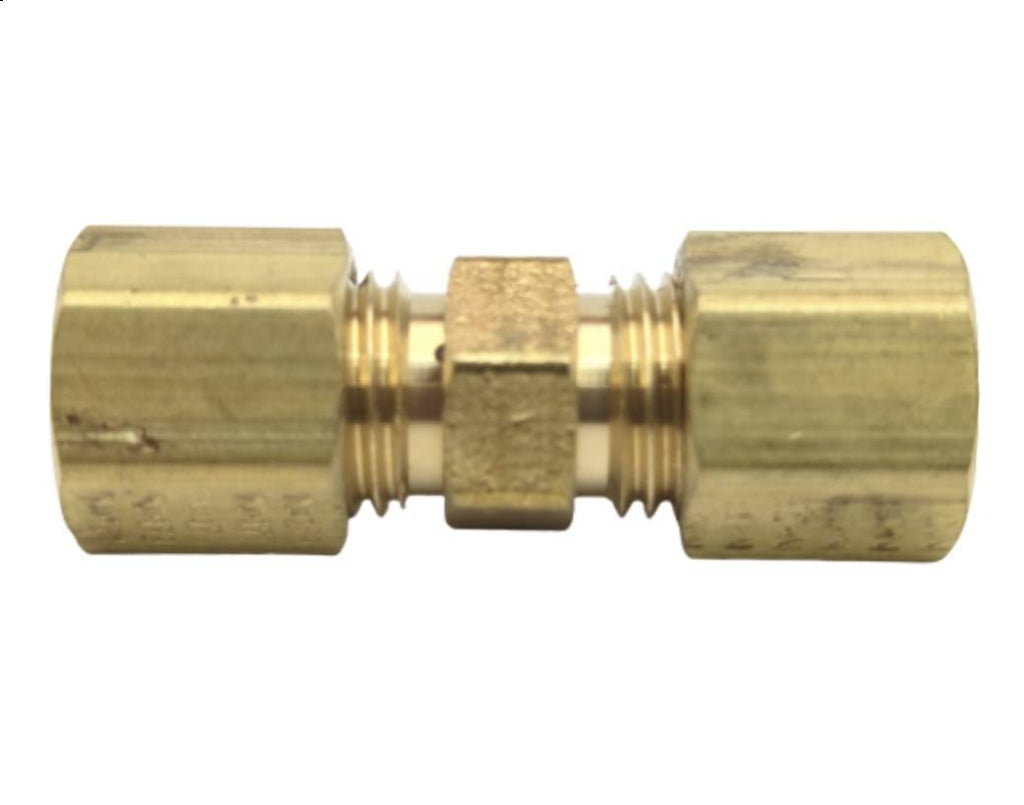

- Marine 3/16” Brass Fitting Compression Union
- Size: 3/16”

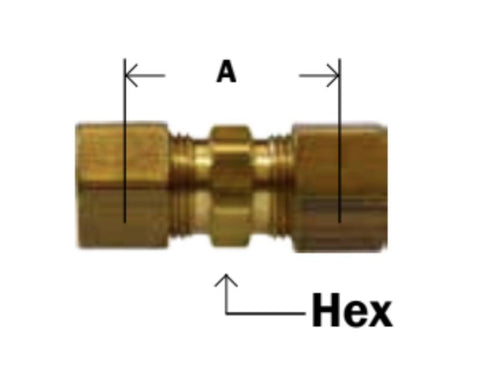

- Length: 0.75”
- Hex: 0.37
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Union
- Part Number: 18-063, 18063
- Also Known As:
- 00062-03, 162300, 2623, 262X3, 50915K132, 62-3, 623, 62A-33, 62C-3, 62x3, C62-3, S62-3
