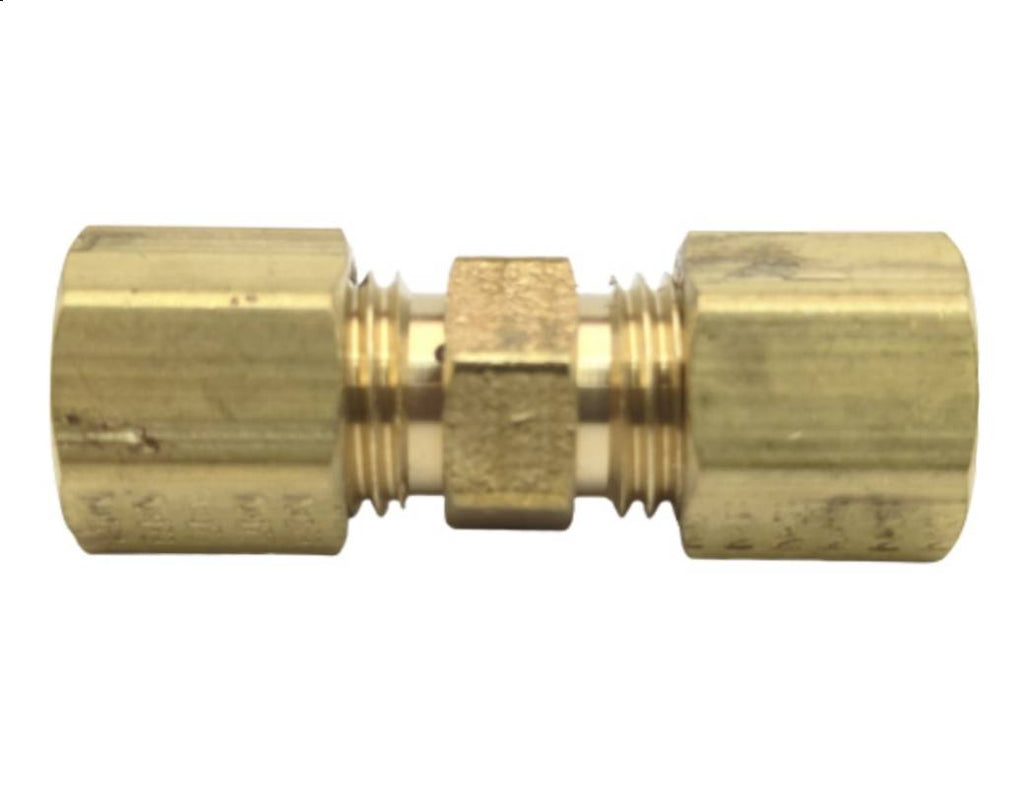

- Marine 5/16” Brass Fitting Compression Union
- Size: 5/16”

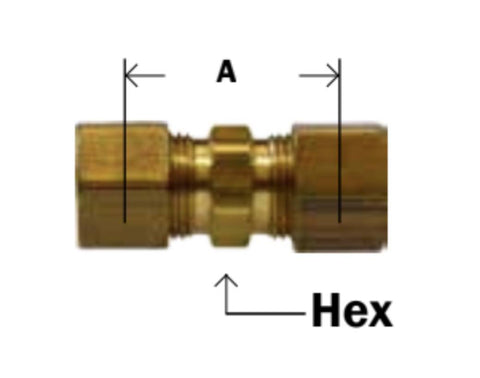

- Length: 0.88”
- Hex: 0.50
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Union
- Part Number: 18-065, 18065
- Also Known As:
- 00062-05, 162500, 2625, 262X5, 262X5X4, 50915K134, 62-5, 625, 62A-55, 62C-5, 62x5, C62-5 S62-5
