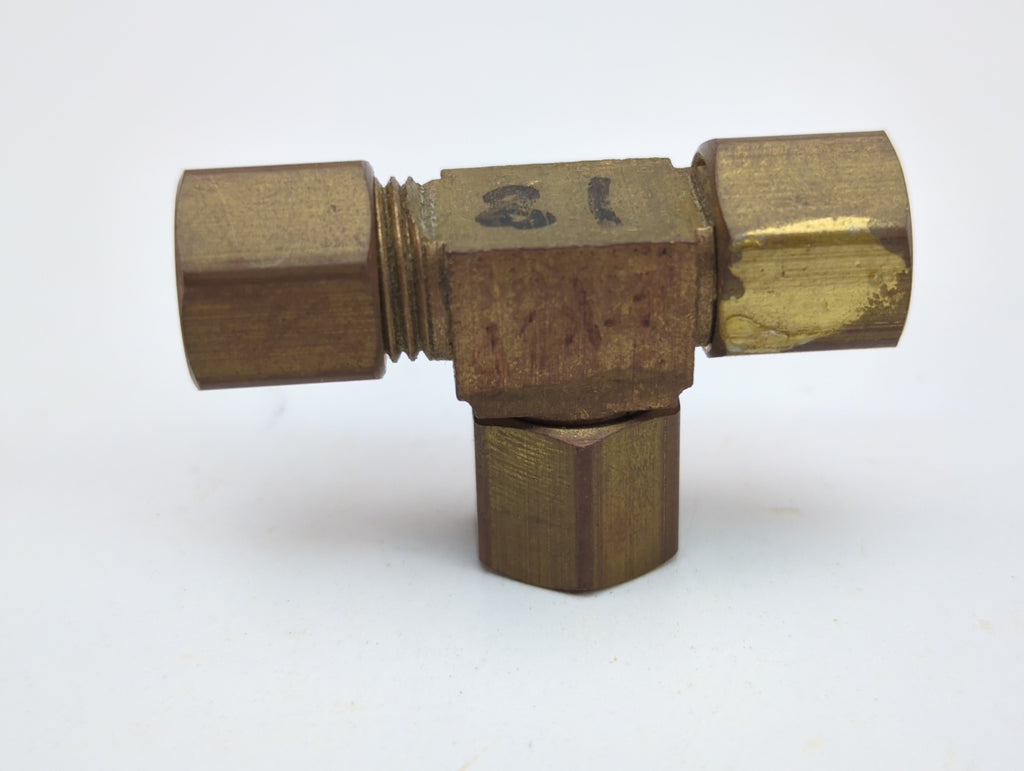

- Marine 1/4” Forged Brass 3-Way Compression Tee Fitting
- Size: 1/4”

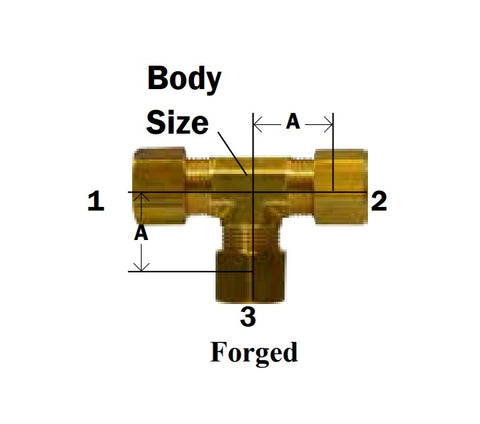

- A: 0.63
- Body Size: 0.36
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME and SAE.
- Manufacturer: Midland Metal
- Model Number: Tee
- Part Number: 18-103, 18103
- Also Known As:
- 64, 264C, 00064-04, 164400, 164C-4, 264X4, 2724, 64-4, 644, 64A-44, 64AF-44, 64F-4, 264X4, 64x4, C64-4, S64-4
