Midland Metal 18-103B 18-103B Marine 1/4” Barstock Brass 3-Way Compression Tee Fitting

  • Sale
  • Regular price $14.95
  • 1 available

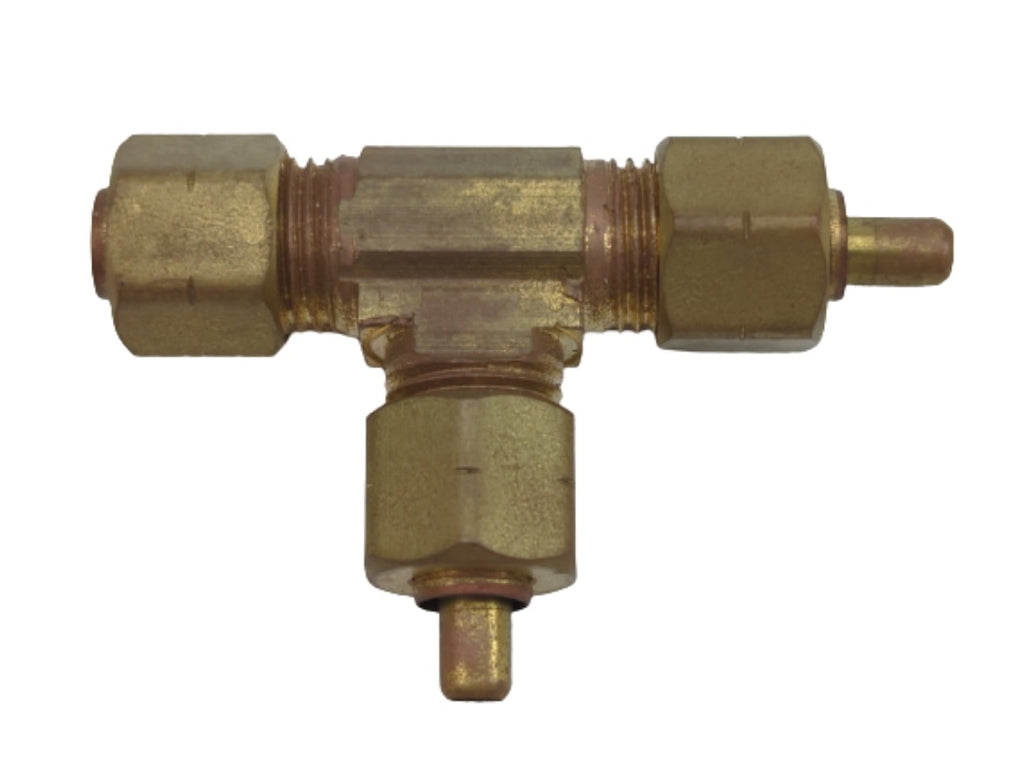

  • Marine 1/4” Barstock Brass 3-Way Compression Tee Fitting
  • Size: 1/4”

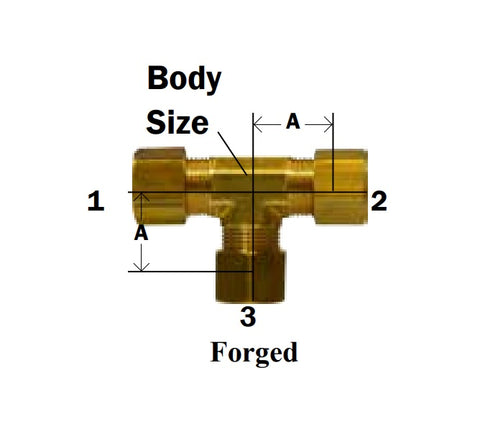

  • A: 0.62
  • Body Size: 0.49
  • Bullets: Barstock
  • Material: Brass
  • Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
  • Vibration: Fair resistance - use long nut when greater vibration resistance is needed.
  • Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
  • Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
  • Meets specifications and standards of ASA, ASME and SAE.
  • Manufacturer: Midland Metal
  • Model Number: Tee
  • Part Number: 18-103B, 18103B
  • Also Known As:
    • 64, 264C, 64A-44, 64AF-44
