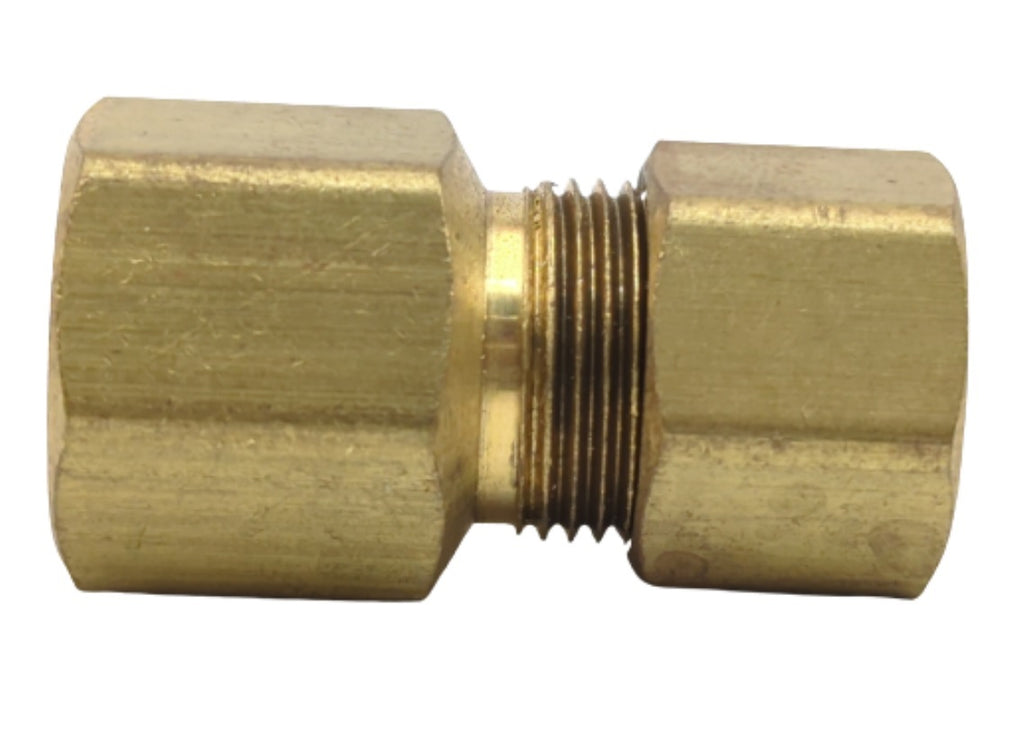

Midland Metal 18-145 18145 1/4” Compression X 1/8” FNPTF Straight Brass Female Adapter Fitting

  • Sale
  • Regular price $12.95
  • 7 available


  • 1/4” Compression X 1/8” FNPTF Straight Brass Female Adapter Fitting
  • End Style: Compression X Female NPTF
  • Size: 1/4” x 1/8”
  • A: 0.78
  • Hex: 0.56
  • Shape: Straight / Connector
  • Material: Brass
  • Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
  • Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
  • Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
  • Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
  • Meets specifications and standards of ASA, ASME, and SAE.
  • Manufacturer: Midland Metal
  • Model Number: Female Adapter
  • Part Number: 18-145, 18145
  • Also Known As:
    • 00066-0402, 166420, 266X4, 50915K214, 66-42, 66-4A, 664A, 66A-4A, 66C-4-2, 66X4, 66x4x2, C66-4-2
