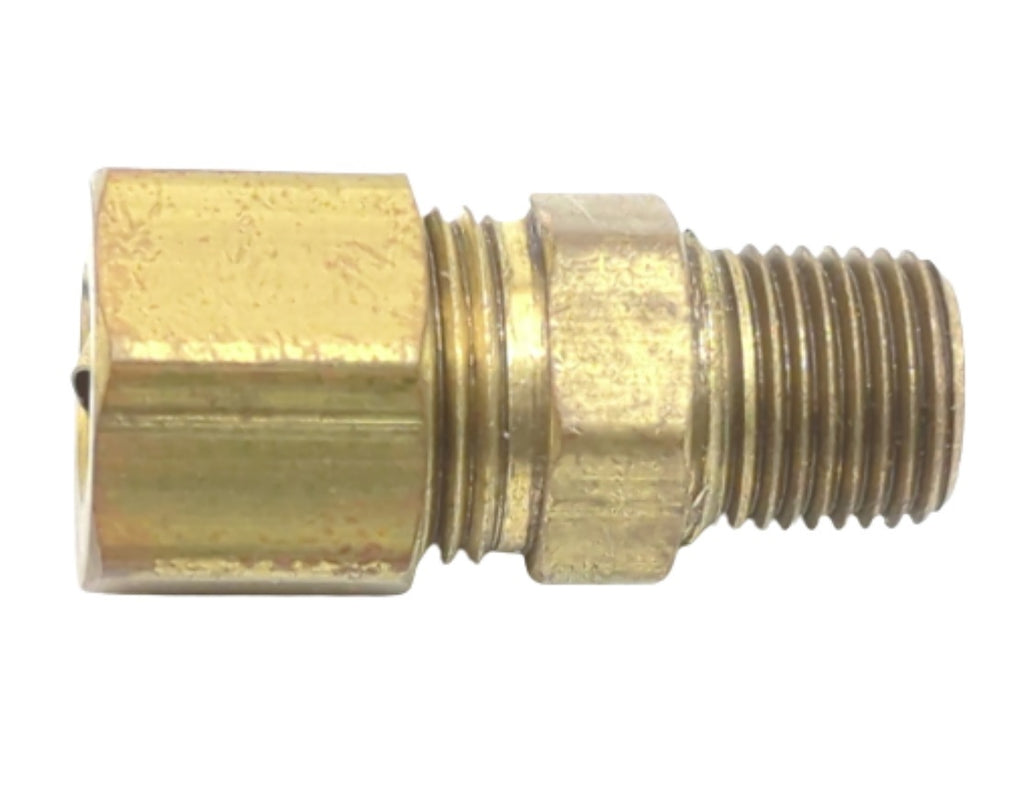

Midland Metal 18-176 18176 1/8” Compression X 1/8” MNPTF Straight Brass Male Adapter Fitting

  • Sale
  • Regular price $9.95


  • 1/8” Compression X 1/8” MNPTF Straight Brass Male Adapter Fitting
  • End Style: Compression X Male NPTF
  • Size: 1/8” x 1/8”

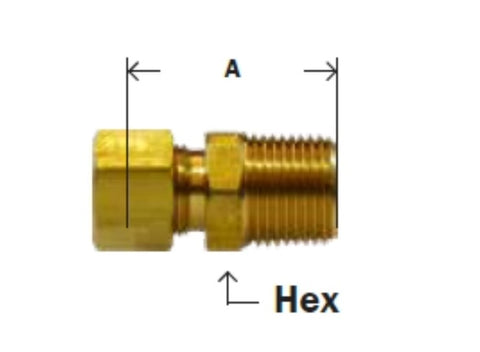

  • A: 0.78
  • Hex: 0.43
  • Shape: Straight / Connector
  • Material: Brass
  • Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
  • Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
  • Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
  • Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
  • Meets specifications and standards of ASA, ASME, and SAE.
  • Manufacturer: Midland Metal
  • Model Number: Male Adapter
  • Part Number: 18-176, 18176
  • Also Known As:
    • 00068-0202, 168220, 2682, 268X2, 2P236, 50915K311, 68-22, 68-2A, 682A, 68A-2A, 68C-2-2, 68x2, 868-2A, 8682A, C68-2-2, S68-2-2
