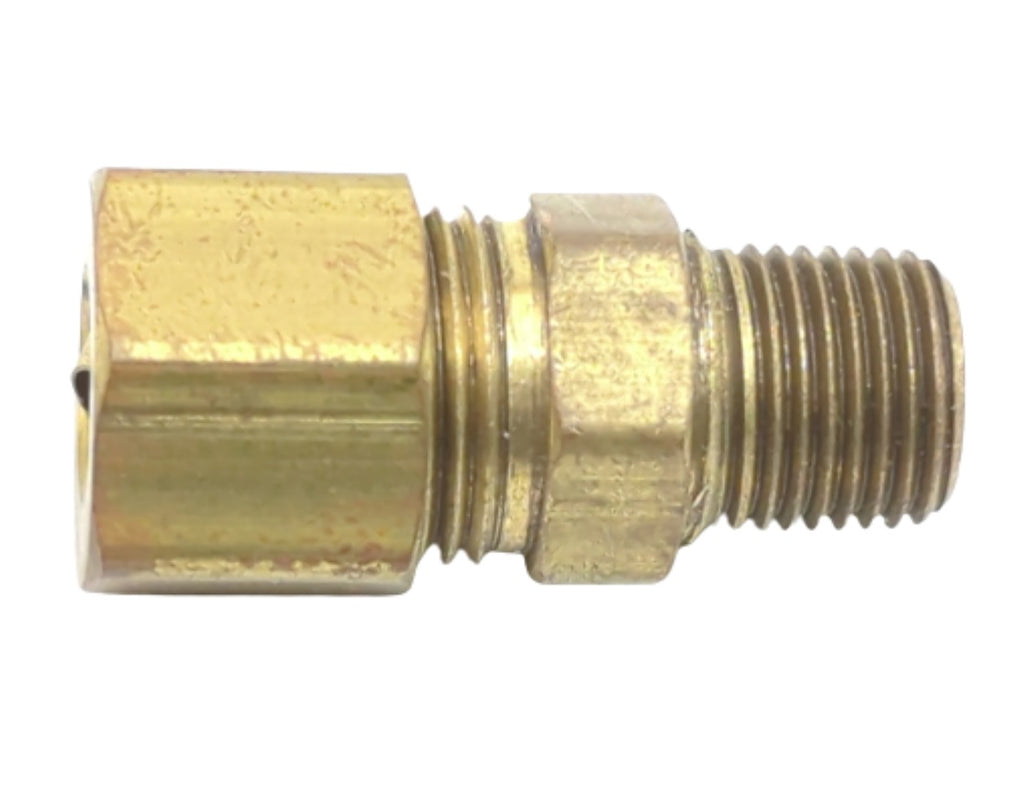

- 5/16” Compression X 1/8” MNPTF Straight Brass Male Adapter Fitting
- End Style: Compression X Male NPTF
- Size: 5/16” x 1/8”

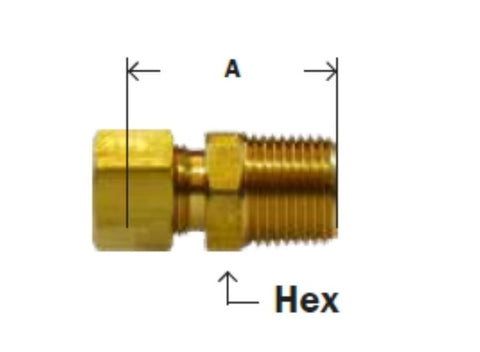

- A: 0.91
- Hex: 0.50
- Shape: Straight / Connector
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME, and SAE.
- Manufacturer: Midland Metal
- Model Number: Male Adapter
- Part Number: 18-183, 18183
- Also Known As:
- 00068-0502, 168520, 1VDE5, 268X5, 50915K317, 58A-5A, 68-52, 68-5A, 685A, 68A-5A, 68C-5-2, 68x5, C68-5-2, S68-5-2
