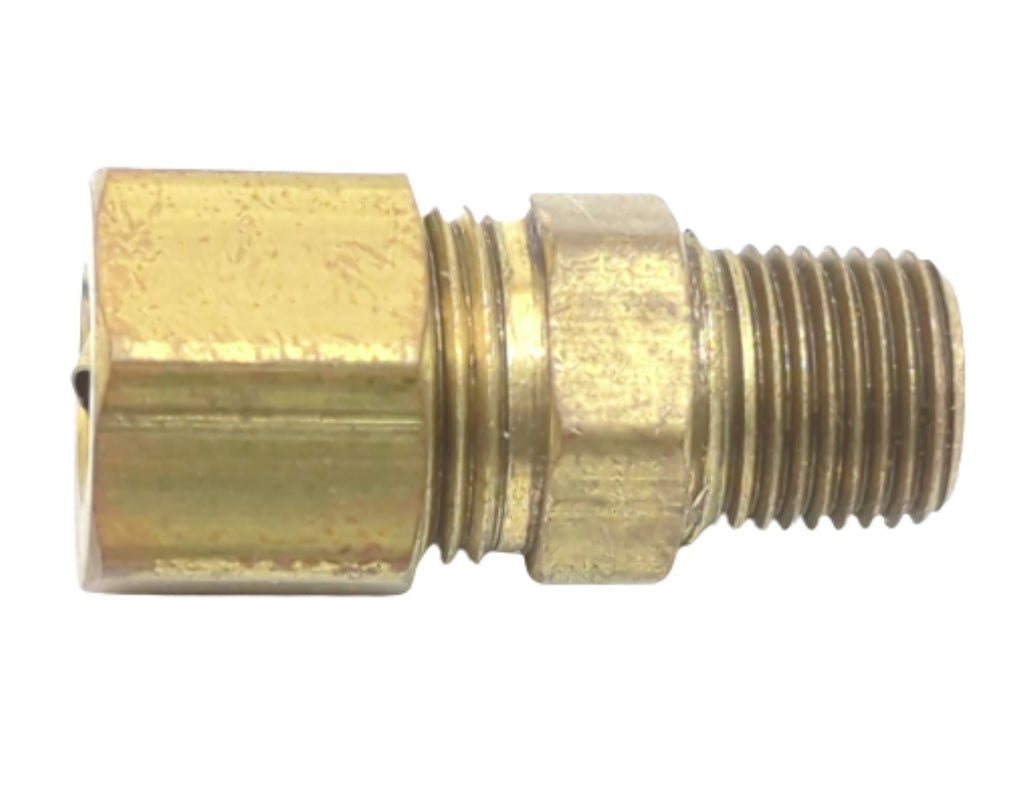

- Light Pattern 3/8” Compression X 1/2” MNPTF Straight Brass Male Adapter Fitting
- End Style: Compression X Male NPTF
- Size: 3/8” x 1/2”

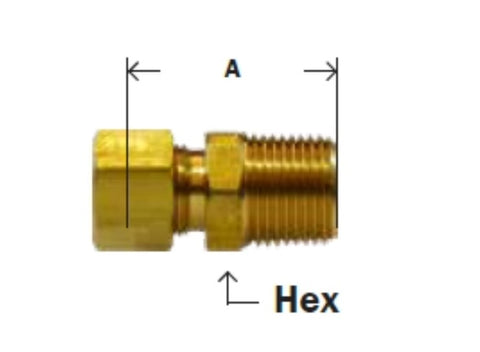

- A: 1.19
- Hex: 0.88
- Shape: Straight / Connector
- Material: Brass
- Subheading: Light
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- “L” at the end of a Part# means Light Pattern -These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
- Meets specifications and standards of ASA, ASME, and SAE.
- Manufacturer: Midland Metal
- Model Number: Male Adapter
- Part Number: 18-190L, 18190L
- Also Known As:
- 00068-0608, 68-68
