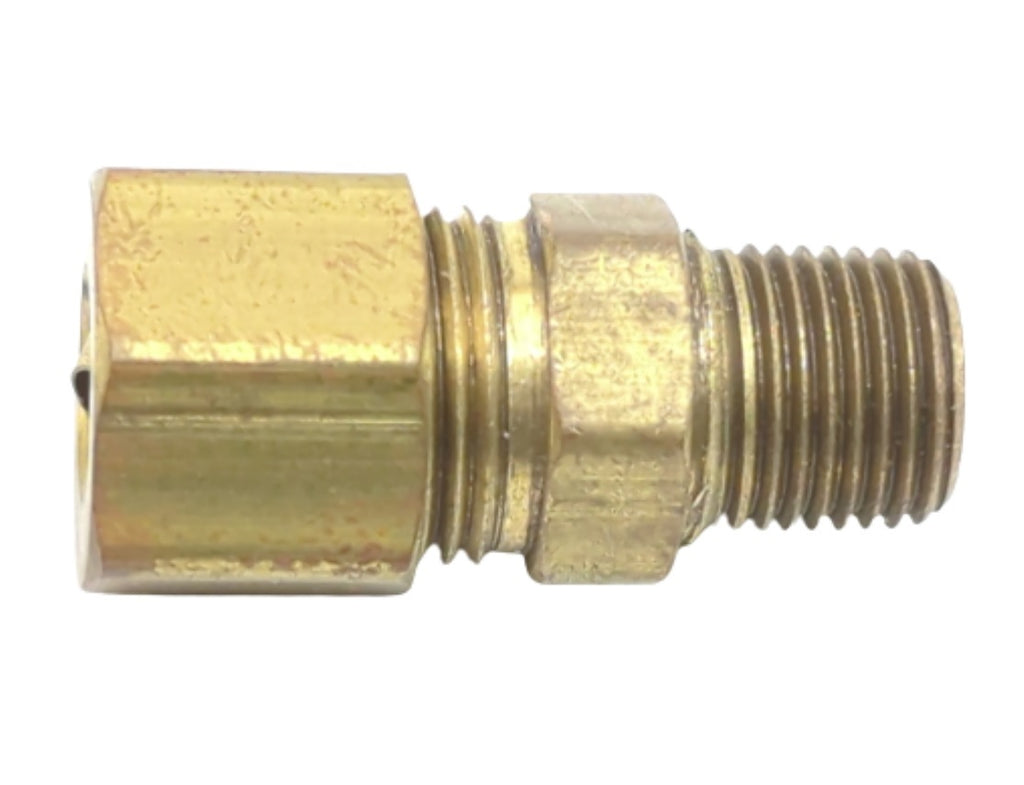

- 1/2” Compression X 3/8” Male NPTF Straight Brass Male Adapter Fitting
- End Style: Compression X Male NPTF
- Size: 1/2” x 3/8”

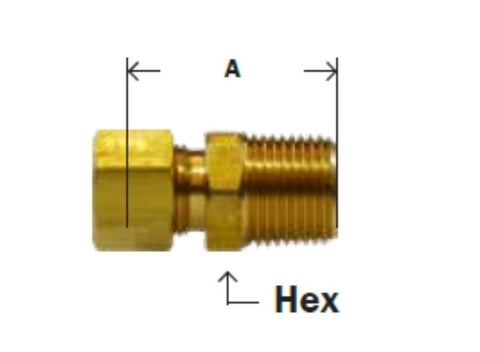

- A: 1.16
- Hex: 0.69
- Shape: Straight / Connector
- Material: Brass
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME, and SAE.
- Manufacturer: Midland Metal
- Model Number: Male Adapter
- Part Number: 18-194, 18194
- Also Known As:
- 00068-0806, 168860, 2688, 26888, 50915K327, 68-86, 68-8C, 688C, 68A-8C, 68C-8-6, 68x8, C68-8-6, E268x8 / 268x8, E268X8X4
