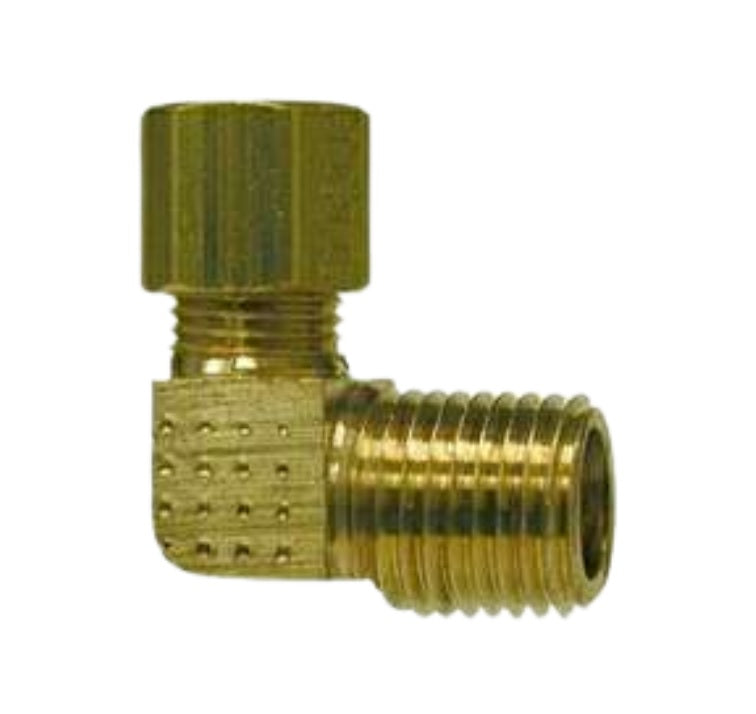

- Barstock 1/4” Compression X 1/8” MNPTF 90° Brass Male Elbow Fitting
- End Style: Compression X Male NPTF
- Size: 1/4” x 1/8”

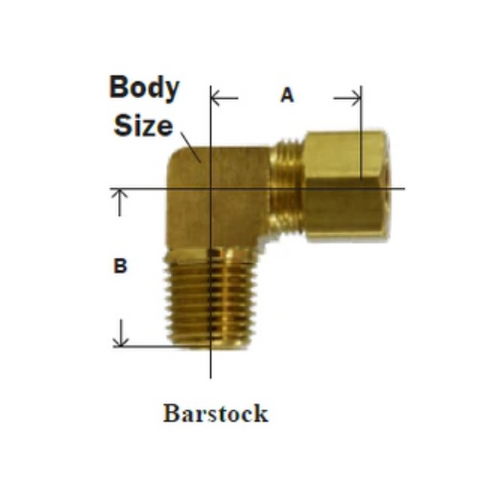

- A: 0.62
- B: 0.75
- Body Size: 0.43
- Material: Brass
- Bullets: Barstock
- Shape: 90° degree elbow
- Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
- Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
- Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
- Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
- Meets specifications and standards of ASA, ASME, and SAE.
- Manufacturer: Midland Metal
- Model Number: Male Elbow
- Part Number: 18-224B, 18224B
- Also Known As:
- 00069-0402B, 269X4, 2P249, 50915K714, 69A-4A, 69X4
