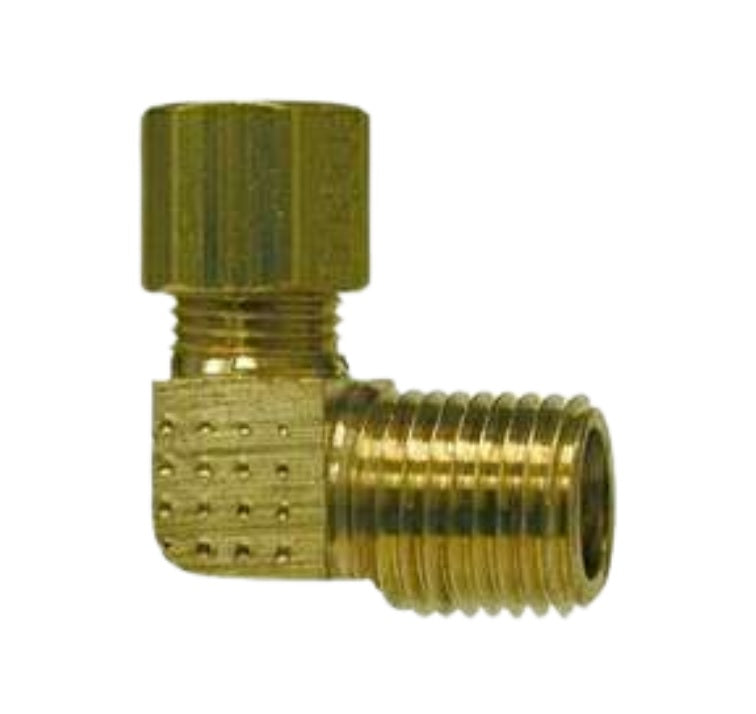

Midland Metal 18-228B 18228B Barstock 5/16” COMP X 1/8” MIP 90° Brass Male Elbow Fitting
Sale
Regular price
$12.95
1 available
Barstock 5/16” Compression X 1/8” MNPTF 90° Brass Male Elbow Fitting
End Style: Compression X Male NPTF
Size: 5/16” X 1/8”

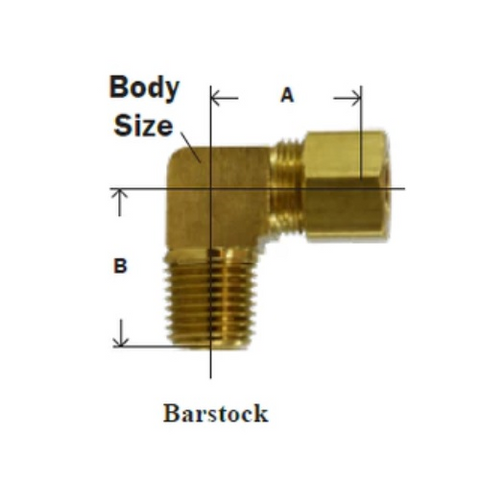

A: 0.62
B: 0.75
Body Size: 0.42
Material: Brass
Bullets: Barstock
Shape: 90-degree elbow
Typical Application: Use with copper, aluminum, and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
Vibration: Fair resistance - use long nuts when greater vibration resistance is needed.
Temperature Range: -65o F to +250o F (-53o C to +121o C) range at maximum operating pressures.
Used With: Aluminum, copper, brass, and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
Meets specifications and standards of ASA, ASME, and SAE.
