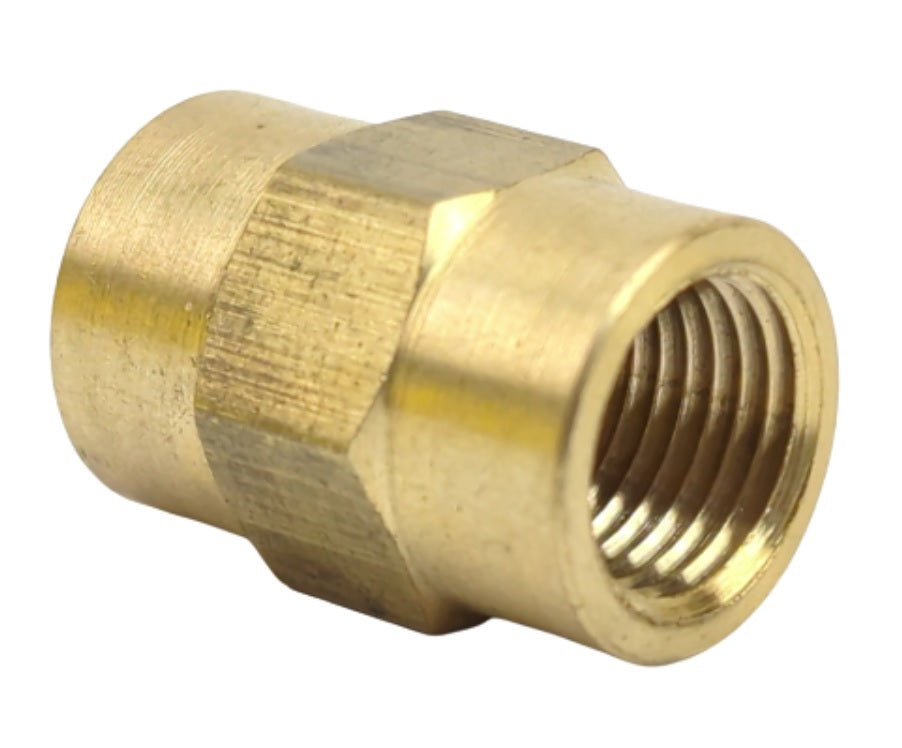

- 1/4” Light Pattern Brass Coupling Fitting
- Thread Size NPTF: 1/4”

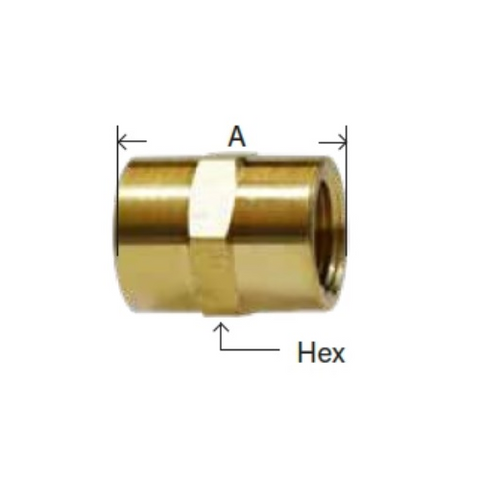

- A: 0.88
- Hex: 0.63
- Material: Brass
- Bullets: Light
- Applications: Grease, Fuels, Low-Pressure and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems
- Vibration: Fair Resistance.
- Temperature Range: -65°F to +250°F (-53°C to +121°C)
- Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
- Meets specifications and standards of ASA, ASME and SAE
- “L” at the end of a Part# means Light Pattern these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
- Manufacturer: Midland Metal
- Model Number: Coupling
- Part Number: 28-059L, 28059L
- Also Known As:
- 016068, 06103-04, 103-4, 103-B, 103A-B, 103B, 13Y874, 16068, 203400, 23300X4, 3300x4, 50785K92 88033, 99-4, E23300-4, S207-4
