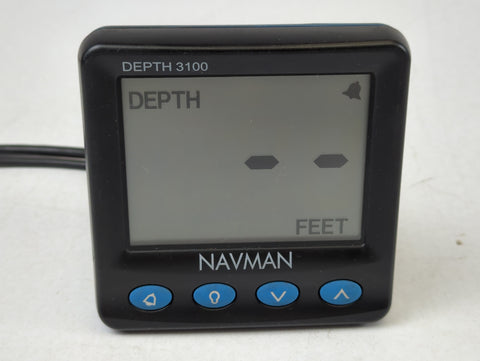

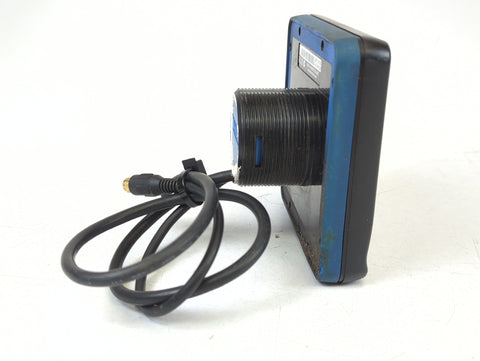

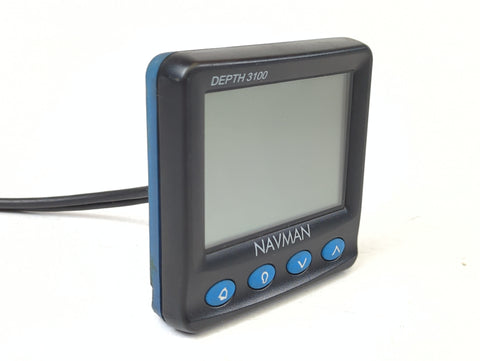

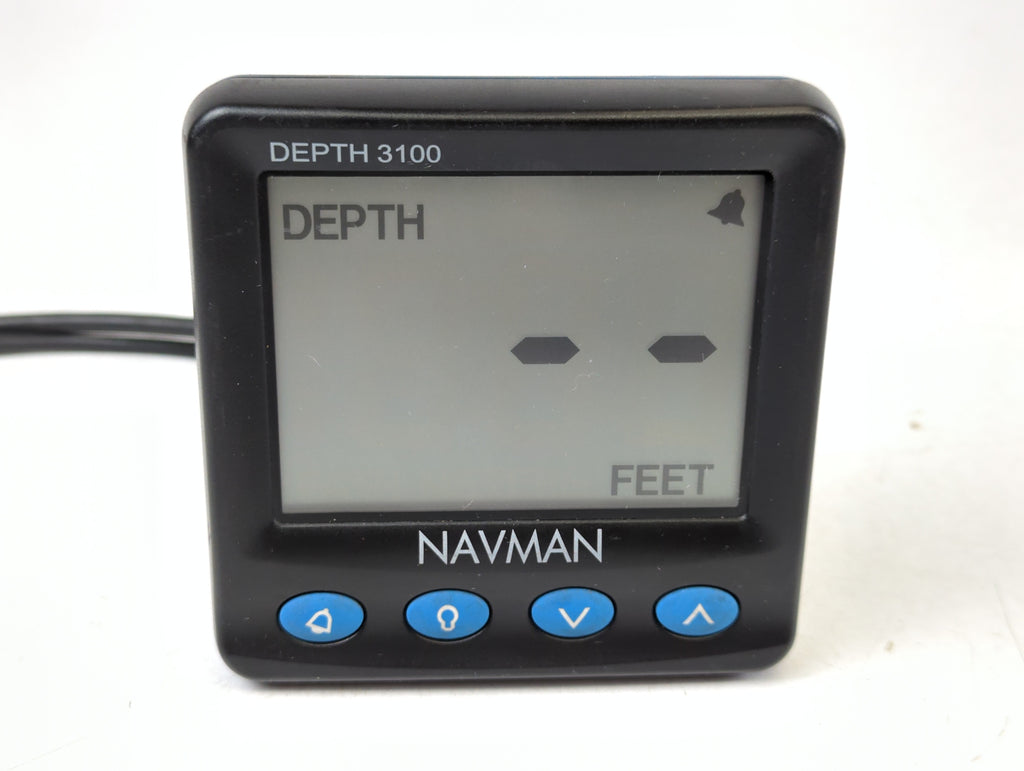

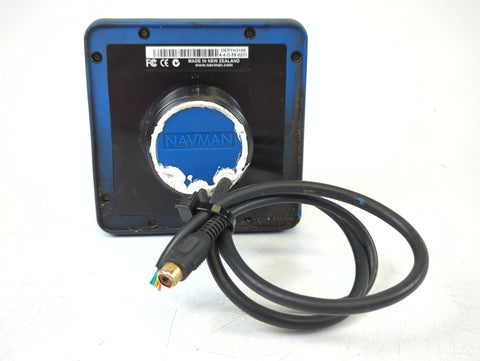

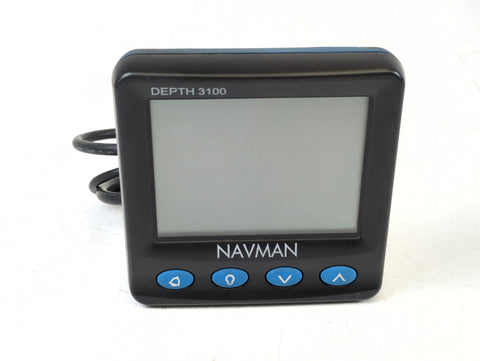

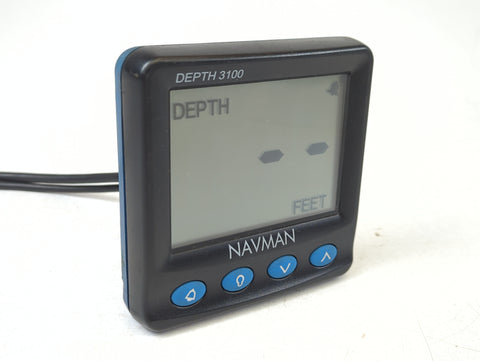

NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display

NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display

  • Sale
  • $299.95
  • 1 available
  • NAVMAN DEPTH 3100 Series Boat Marine NMEA 0183 4" Digital LCD Depth Display
  • Features:
    • Sunlight Readable: Large 1.5” numerals on a 4” monochromatic LCD.
    • Adjustable Backlighting: Features multiple levels for clear night viewing.
    • Safety Alarms: Programmable shallow-water and deep-water alarms.
    • Flexible Units: Displays depth in meters, feet or fathoms (up to 400ft/120m)
    • Smart Calibration: Includes keel-offset adjustment for precise accuracy from the bottom of your boat.
    • NMEA Compatible: Features a NavBus/NMEA output to share data with other onboard systems.
  • Specifications:
    • Physical:
      • Case Size: 4.4” (111mm)
      • LCD Display: 82 mm (3.2") wide, 61 mm (2.4") high; twisted nematic
      • LCD Digits: 38 mm (1.4") high
      • Four operator keys, laser etched
      • Backlighting for display and keys, amber, four levels and off
      • Operating Temperature: 0 to 50°C (32 to 122°F)
      • Transducer Cable Length: 8 or 9 metres (26.25 or 29.5 ft)
      • Power Cable Length: 1 m (3.25 ft)
    • Electrical:
      • Power Supply: 10.5 to 16.5 V DC, 30 mA without backlighting, 190 mA with full backlighting and transducer
      • External beeper or light output, switched to ground, 30 V DC and 250 mA maximum
    • Depth:
      • Range: 0.5 to 130 m (1.5 to 400 ft, 0.3 to 67 fa)
      • Typical Accuracy: < 2% (depends on type of depth transducer, installation and water clarity)
      • Displays: 0.0 to 19.9, 20 up
      • Adjustable Keel Offset: ± 2.9 m (± 9.6 ft, ± 1.6 fa)
      • Too deep and too shallow alarms (run both at once to provide anchor watch facility)
    • Interfaces:
      • NavBus connection to other NAVMAN instruments.
      • NMEA 0183 outputs: MWV, VPW; inputs RMC, VHW, VTG.
    • Standards Compliance:
      • EMC Compliance: USA (FCC): Part 15 Class B
      • Europe (CE): EN50081-1, EN50082-1
      • New Zealand and Australia (C Tick): AS-NZS 3548
      • Environment: IP66 from front when correctly mounted
  • Manufacturer: NAVMAN
  • Model Number: 3100 Series
  • Part Number: DEPTH 3100
  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and appears to be unused. New Old Stock. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
