  • Sale
  • $299.95
  • 1 available
  • NAVMAN REPEAT 3100 Boat Marine Speed Depth Temperature Digital Repeater Display
  • Features:
    • Multi-Data Repeater: Displays depth, speed, wind and NMEA data from other 3100 series instruments.
    • NavBus & NMEA 0183: Integrates seamlessly with existing Navman systems or compatible GPS units.
    • Three View Modes: Dedicated modes for Dual Data (Speed/Depth), Wind (Angle/Speed), and NMEA GPS data
    • Backlit LCD: Four adjustable brightness levels for high-visibility night navigation.
    • Large Digital Readout: High-contrast 4” display with 1.5” numeral for easy viewing from a distance.
    • Flexible Mounting: Designed for standard 2” mounting cutouts, 4.4” square size.
  • Specifications:
    • Physical:
      • Case Size: 111 mm (4.4") square
      • LCD Display: 82 mm (3.2") wide, 61 mm (2.4") high; twisted nematic
      • LCD Digits: 30 mm (1.2") high on top line, 20 mm (0.8") high on bottom line
      • Four operator keys, laser etched
      • Backlighting for display and keys, amber, four levels and off
      • Operating Temperature: 0 to 50°C (32 to 122°F)
      • Power Cable Length: 1 m (3.25 ft)
    • Electrical:
      • Power Supply: 10.5 to 16.5 V DC, 20 mA without backlighting, 60 mA with full backlighting
    • NavBus Interface and Display:
      • NavBus interface for NAVMAN SPEED 3100,DEPTH 3100, MULTI 3100 and/or WIND 3100 instruments.
      • Can receive and display these values from the NavBus:
        • Current speed, average speed, maximum speed, trim speed
        • Log: trip log and total log
        • Temperature
        • Countdown timer (from SPEED 3100 orMULTI 3100)
        • Depth
        • Wind speed and direction (true and apparent)
        • VMG
    • NMEA Interface and Display:
      • Three NMEA 0183 inputs for compatible NMEAinstruments.
      • Can receive and display these NMEA sentences:
        • APB, BEC, BOD, BWC, BWR, BWR, DBT,DPT, GGA, GNS, HDG, HDT, HSC, MTW,MWD, MWV, RMA, RMB, RMC, VDR, VHW,VLW, VPW, VTG, WCV, XTE, XTR, ZDA
    • Standards Compliance:
      • EMC Compliance: USA (FCC): Part 15 Class B
      • Europe (CE): EN50081-1, EN50082-1
      • New Zealand and Australia (C Tick): AS-NZS 3548
      • Environment: IP66 from front when correctly mounted
  • Manufacturer: NAVMAN
  • Model Number: 3100 Series
  • Part Number: REPEAT 3100

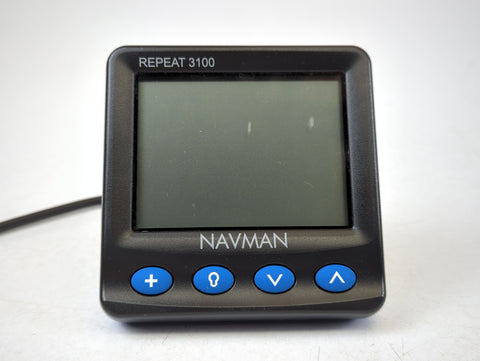

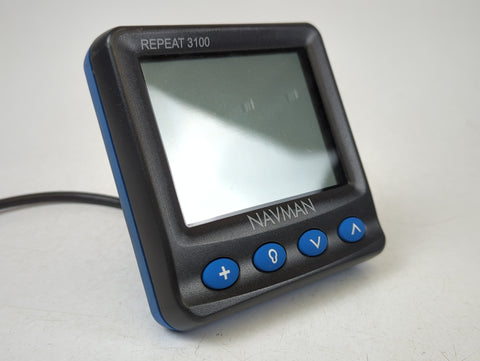

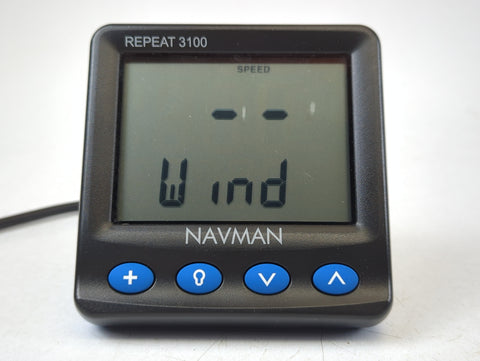

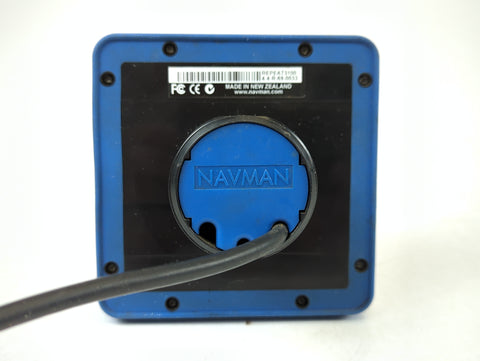

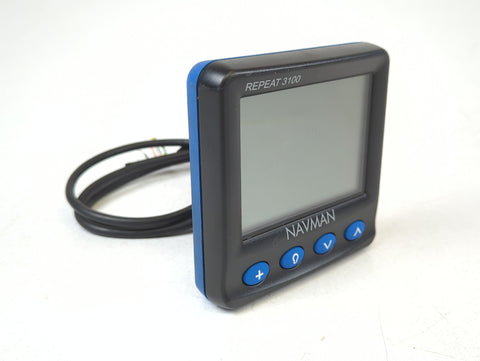

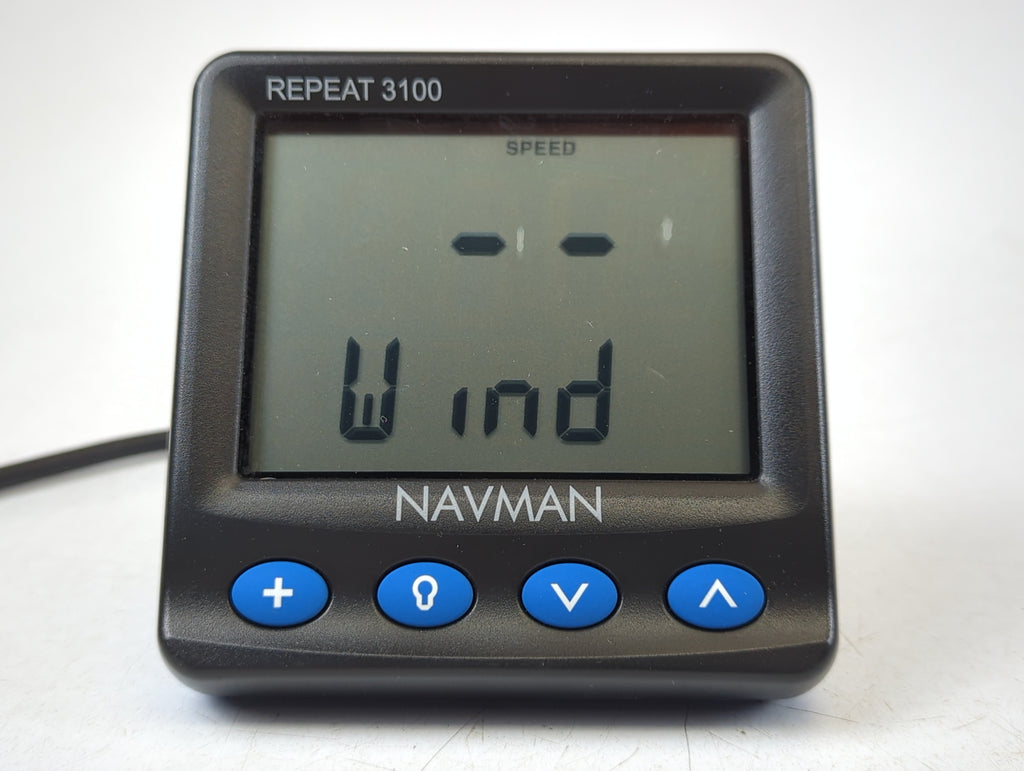

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and appears to be unused. New Old Stock. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
