Newmar PT-24-45F Phase Three 24VDC 230VAC Three Stage Smart Battery Charger

NEWMAR PT-24-45F Phase Three 24VDC 230VAC Three Stage Smart Battery Charger
Input VAC 230 Volts (50-60 Hz.)
Phase Three Boat Marine 24 Volt DC Three Stage Smart Battery Charger
Micro-processor controlled three stage “smart” charging—bulk, absorption, float—for optimum performance and long life of large battery systems
Precision regulated, high power output for rapid rejuvenation of medium-to-large 24 volt battery systems; maintain batteries at peak voltage, even with high d.c. system loads present.
Gel-Cell/Flooded lead-acid switch selects optimum charge/float voltages based on battery type
Three isolated output banks; ammeter indicates total output current.
Current limiting—prevents damage from overloading.
L.E.D. and audible indicators show charger status and diagnose shut-down conditions such as Battery Too Hot, Charger Too Hot, Over-Voltage Protection Activated
High charge time-out circuit prevents overcharge during continuous high amperage demand
May be wired in parallel to create higher power systems
Built to last—rugged stainless steel case with marinized internal circuitry; drip shield provided
Numerous Safety and EMC Compliances; all models carry the CE mark
Manufacturer: Newmar
Model Number: PT-24-45F
Part Number: 445-4098-0

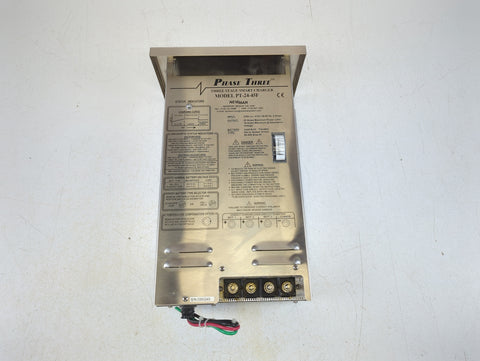

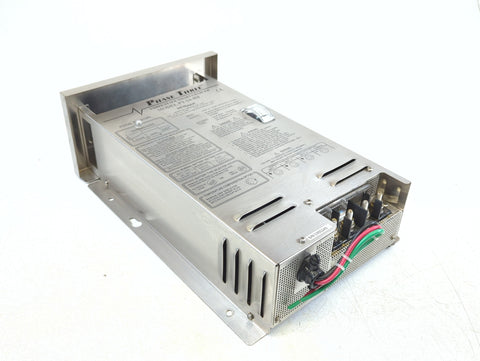

Condition: New! In Stock, Ready to Ship! NOS New Old Stock. 230V AC IMPUT. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
