  • Sale
  • $299.95
  • 1 available

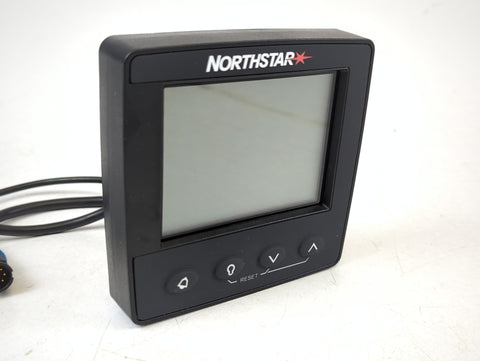

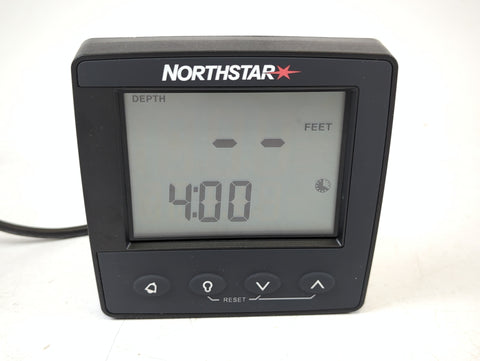

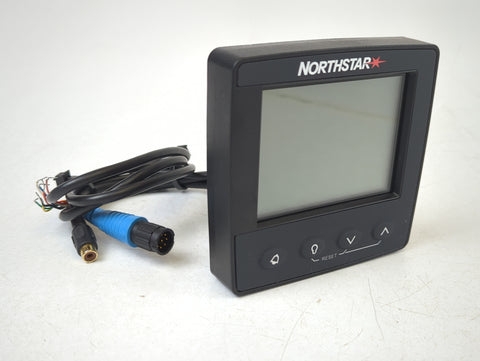

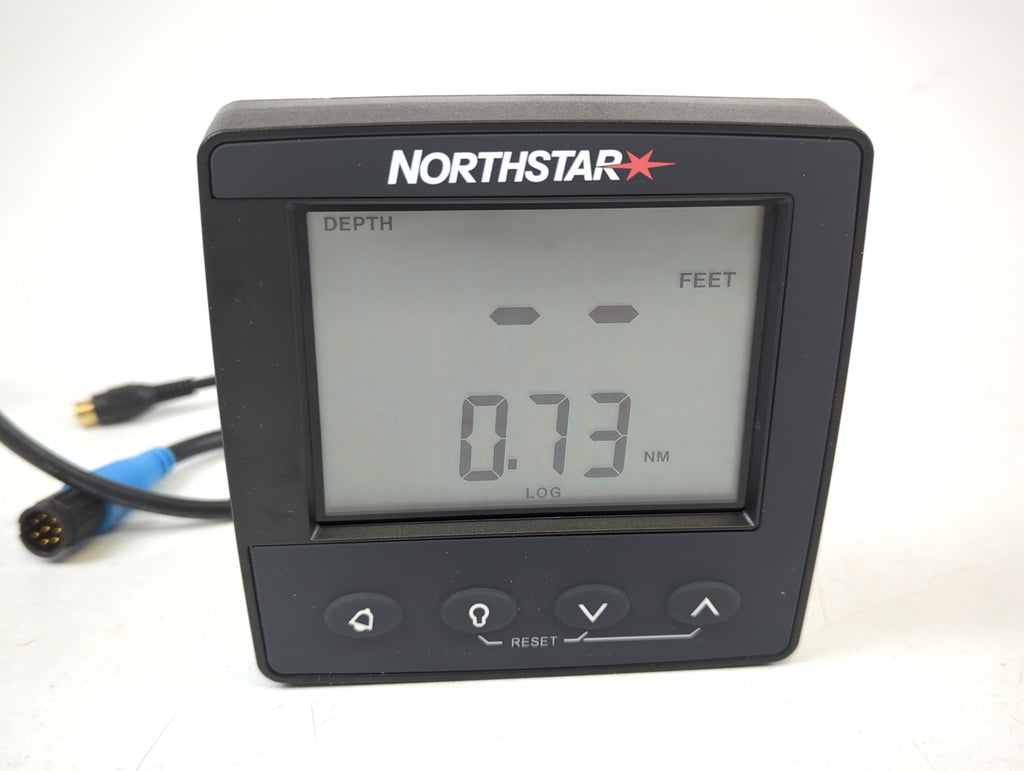

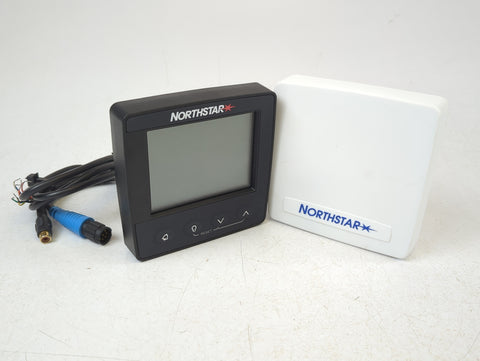

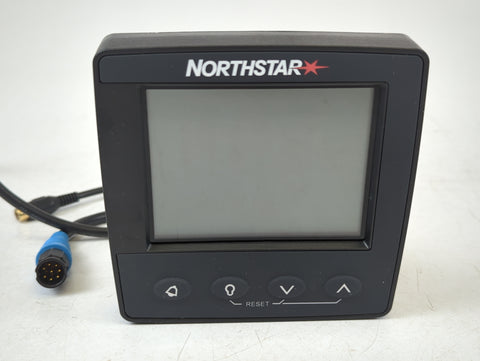

  • Northstar MULTI 3100 NS3100 Navman Marine Speed Depth Temperature Digital Display
  • Specifications:
    • Physical:
      • Case Size: 4.4” (111mm)
      • LCD Display (WxH): 3.2” X 2.4” (82 X 61 mm); twisted nematic
      • LCD Digits: 1.4” High (38mm)
      • Operator Keys: 4, laser etched
      • Backlighting: For display and keys, amber four levels and off
      • Operating Temperature: 0 to 50°C (32 to 122°F)
      • Transducer Cable Length: 8 or 9 meters (26.25 or 29.5 ft)
      • Power Cable Length: 1m (3.25 ft)
    • Electrical:
      • Power Supply without backlighting: 10.5 to 16.5 V DC, 40 mA
      • Power Supply with full backlighting and transducer: 10.5 to 16.5 V DC, 200 mA
      • External Beeper or Light Output: Switched to ground, 30 V DC and 250 mA maximum
    • Depth:
      • Range: 0.5 to 130 m (1.5 to 400 ft, 0.3 to 67 fa)
      • Typical Accuracy: < 2% (depends on type of depth transducer, installation and water clarity)
      • Displays 0.0 to 19.9, 20 up.Adjustable keel offset ± 2.9 m (± 9.6 ft, ± 1.6 fa).Too deep and too shallow alarms (run both at once to provide anchor watch facility)
    • Interfaces:
      • NavBus connection to other Northstar instruments
      • NMEA 0183 Outputs: DBT, DPT, PTTKD
    • Standards Compliance:
      • EMC Compliance:
        • USA (FCC): Part 15 Class B
        • Europe (CE): EN50081-1, EN50082-1
        • New Zealand and Australia (C Tick): AS-NZS 3548
      • Environment: IP66 from front when correctly mounted
  • Manufacturer: Northstar, Navman
  • Model Number: MULTI 3100
  • Part Number: NS3100

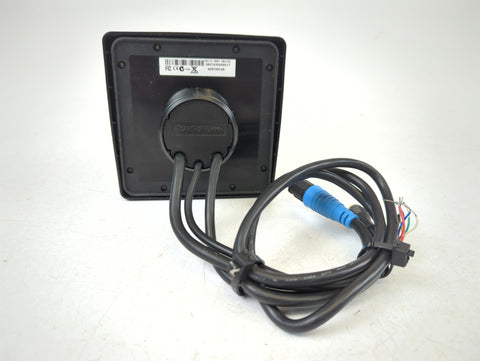

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and appears to be unused. New Old Stock. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
