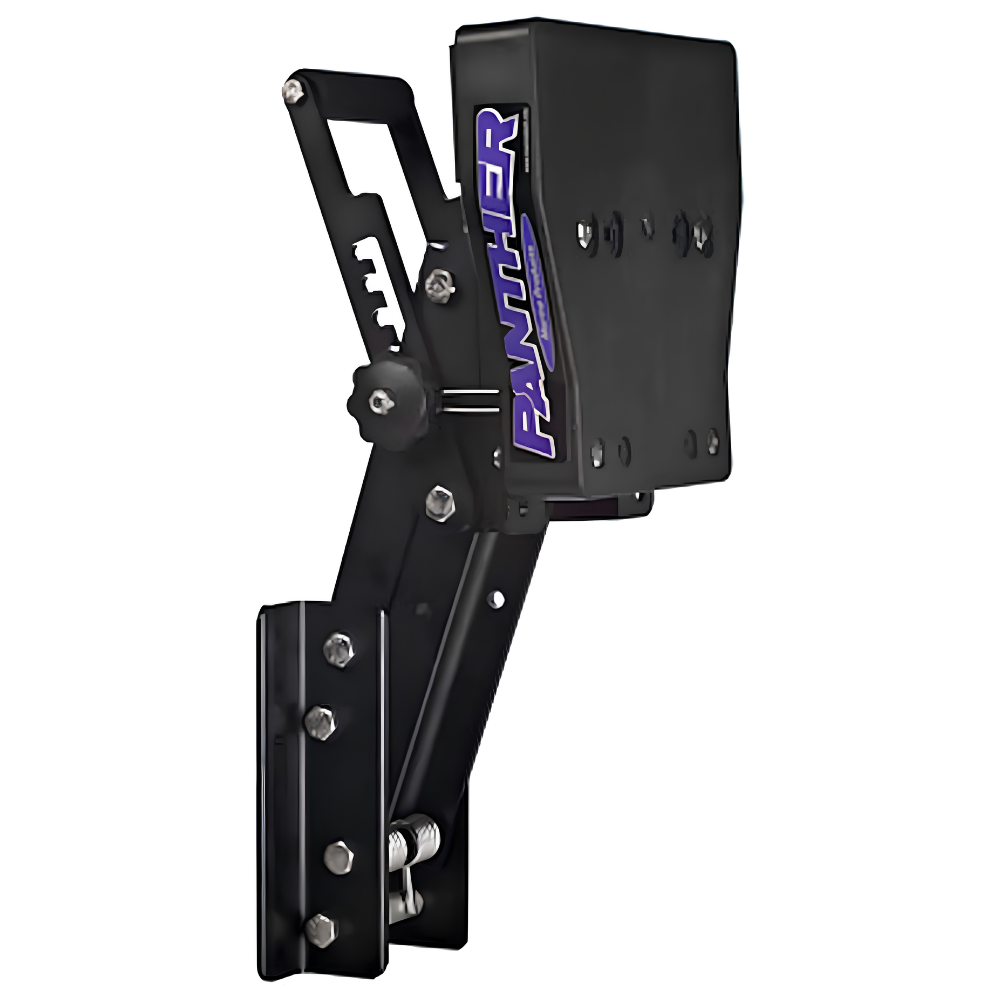

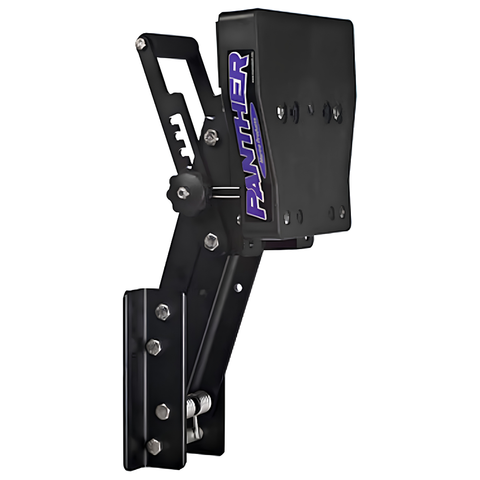

Panther 55-0410 Boat Marine Adjustable 4-Stroke Up to 35HP Outboard Motor Bracket
Adjust your trolling or auxiliary motor to five vertical running positions for changing water or load conditions. The anodized aluminum bracket is built to handle the increased weight and torque output of today’s four strokes with long or short shafts.
Stainless steel torsion springs counterbalance motor weight making adjustments a breeze — while the 2”-thick, extra-wide mounting board, along with aircraft-type stainless steel hardware deliver heavy-duty performance.
When installing, it is recommended that a backing plate is used, along with stainless mounting hardware [not included]. Always use the safety cable that is included.
Features:
Rated for Motors up to 35HP or 263 lb
Adjustable mounting holes
Specifications:
Vertical Travel: 10” (254mm)
Setback Up: 8-3/4" (222.3mm)
Setback Down: 14” (355.6mm)
Motor Mount Plate Dimensions: 11-1/2" X 10-3/4" (292.1 X 273.1 mm)
