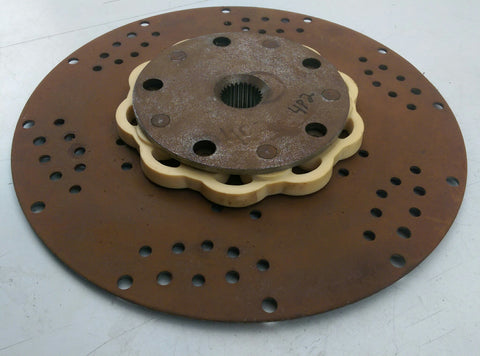

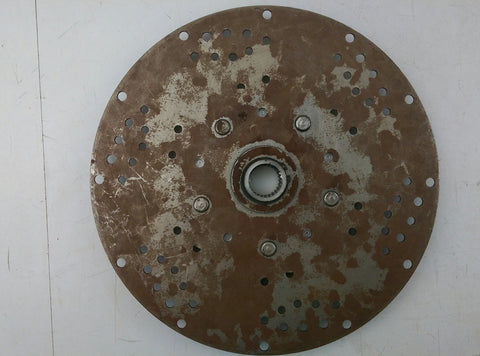

R&D Marine 4P2 Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate
R&D Marine 4P2 Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate
R&D Marine 4P2 Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate
R&D Marine 4P2 Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate

R&D Marine 4P2 Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate

  • Sale
  • $299.95
  • 3 available
  • Loop 26 Teeth Spline 362mm O.D. Gearbox Clutch Damper Drive Plate
  • Element: Loop
  • Torque: 745 Nm, 550 lb ft
  • Number of Fixing Holes: 6, 12
  • Diameter: OD: 362mm (14.25")
  • Thickness: Maximum: 35mm (1.38")
  • Gearbox Spline: 26 teeth 20/40 DP (35.4mm diameter)
  • Bolt Hole PCD [Pitch Circle Diameter]: 6 x 8.1mm on 200mm PCD, 6 x 8.1mm on 210mm PCD, 6 x 8.1mm on 263mm PCD, 6 x 8.1mm on 269.9mm PCD, 6 x 8.1mm on 276.3mm PCD, 6 x 8.1mm on 289mm PCD, 6 x 8.1mm on 295.3mm PCD, 6 x 8.8mm on 304.8mm PCD, 6 x 8.1mm on 314.4mm PCD, 6 x 9.5mm on 320.7mm PCD & 12
  • For use with: Borgwarner 70, 71, 72 & 73, PRM Inline gearboxes, Paragon P series, Technodrive TN 90, 170, 260, 345, 485, 545 & 880, TMP 1200 & 1500, Twin Disc 501 & 502, some Volvo saildrives, ZF IRM220A, Hurth HBW 250 & 360, HSW 125, 450, 630 & 800 gearboxes.
  • Manufacturer: R&D Marine
  • Model Number: Drive Plate
  • Part Number: 4P2
  • Also Known As: RND-4P2, AQN-RD4P2, RND4P2, AQNRD4P2
  • Condition: New, In Stock, Ready to Ship! NOS New Old Stock. This item may show signs of wear or discoloration from storage. See Photos. This listing is for what is shown only, no other parts or pieces included.
